Removing Front Logo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

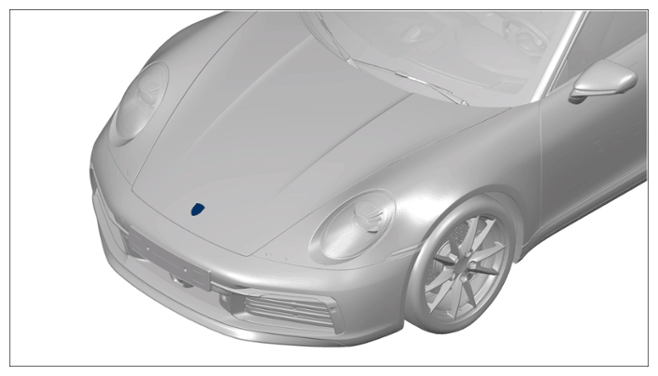

Installation position

1. Unclip inner cover under the logo.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

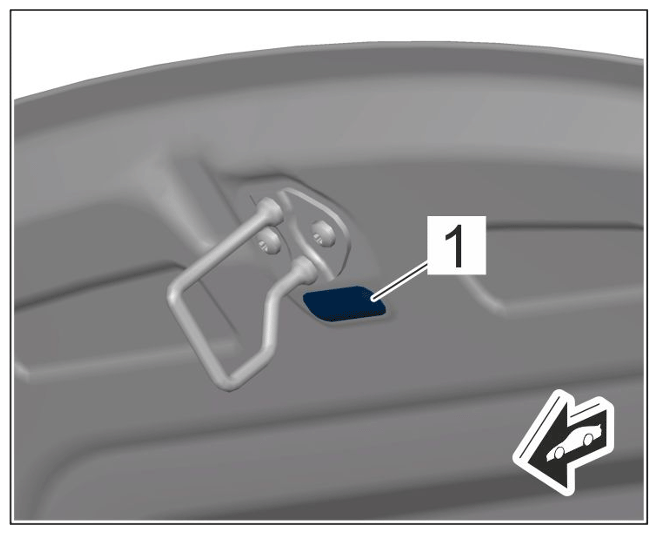

   Inner cover

2. Unscrew nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

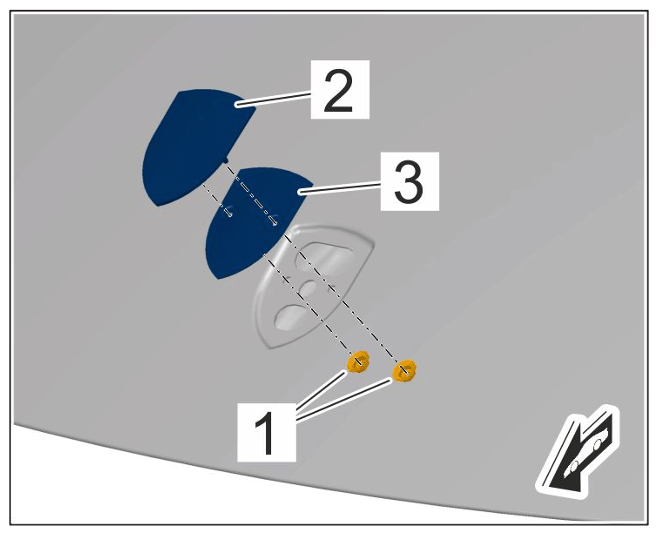

   Nuts for front logo

3. Remove front logo -2-  and base -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front logo with base
