Removing Radiator Grille

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

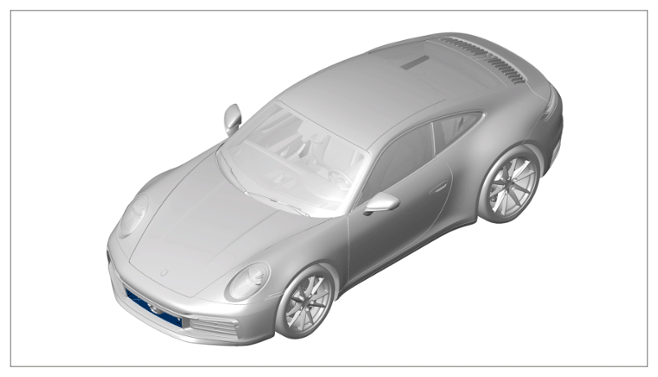

Installation position

1. Loosen wiring harnesses -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

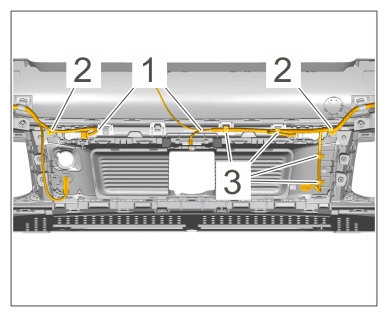

   Wiring harnesses

   1. 1.1  Disengage wiring harnesses -1-  from the holder -3-  .
   2. 1.2  Pull off expanding anchor -2-  .

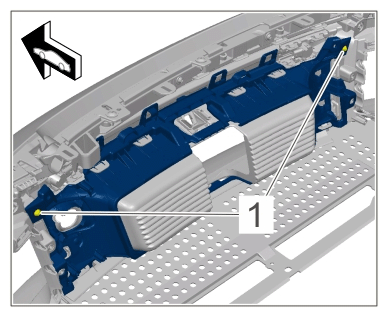

2. Unscrew screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws for radiator grille retaining frame

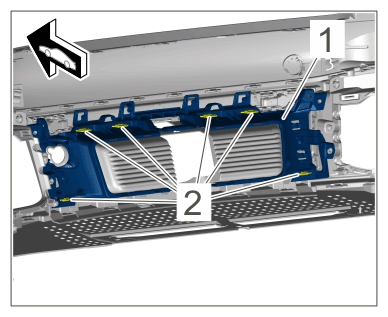

3. Disengage retaining frame for radiator grille -1from the locking lugs -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining frame for radiator grille

4. Loosen retaining frame for cooling-air flaps.

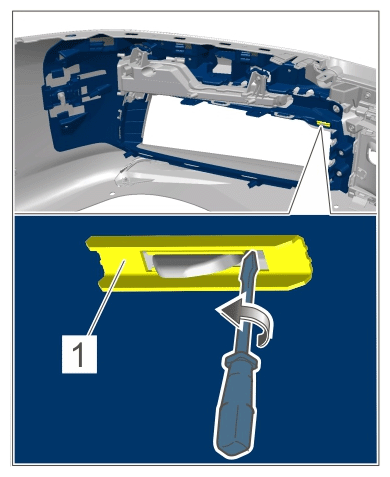

   1. 4.1  Lever off fastening clamp -1-  using a screwdriver. -arrow-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening clamp for retaining frame for cooling-air flaps

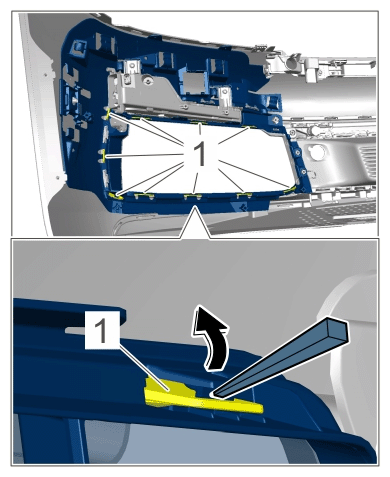

   2. 4.2  Disengage locking lugs -1-  . -arrow-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Locking lugs on retaining frame for cooling-air flaps

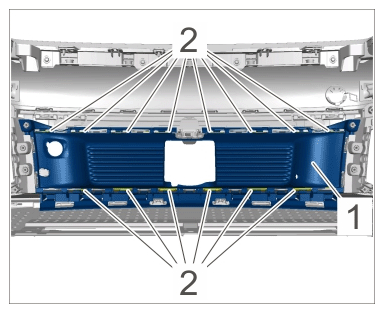

5. Disengage radiator grille -1-  from locking lugs -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Radiator grille

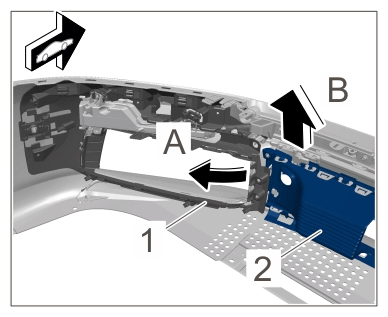

6. Carefully lift up retaining frame for cooling-air flaps -2-  (-arrow A-  ) and guide radiator grille -1-  by pulling it up and out. -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Radiator grille
