Removing Rear Bracket

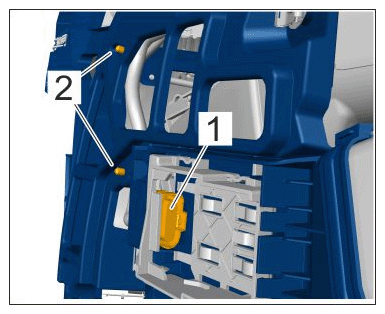

  1. Unclip cable plug -1-  for Lane Change Assist control unit.
    1. 1.1  Loosen cable clips -2-  on the bracket.
      G15533234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cable plug and cable clips on supply lead for Lane Change Assist control unit

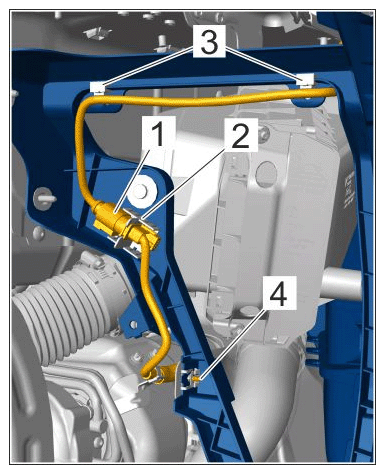

  2. Loosen wiring harness for oxygen sensor and screw for heat shield.
    1. 2.1  Unclip plug connection -1-  from holder -2-  and disconnect plug connection.
    2. 2.2  Unclip wiring harness at the bracket -3-  .
    3. 2.3  Unscrew tapping screw -4-  for heat shield.
      G15533235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wiring harness for oxygen sensor on bracket

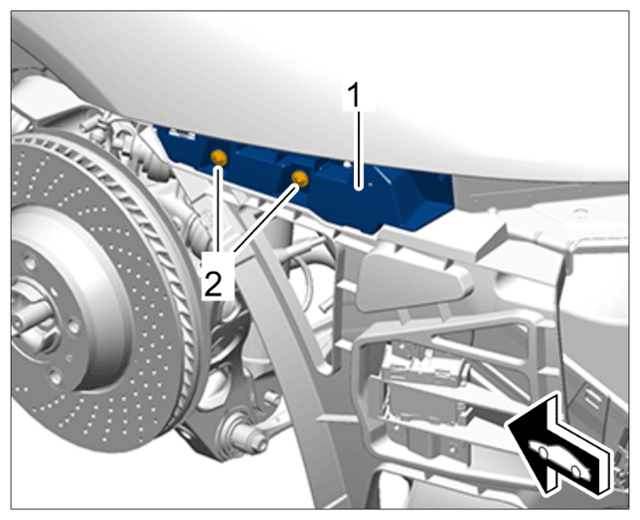

  3. Remove cover -1-  for top bracket.
    1. 3.1  Unscrew tapping screws -2-  and remove cover.
      G15533236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover on bracket

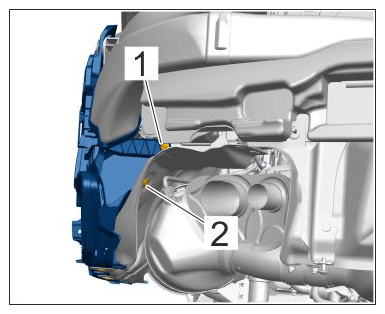

  4. Unscrew screws on the rear bracket -1-  and on the lower heat shield -2-  .
    G15533237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear and lower retaining frame

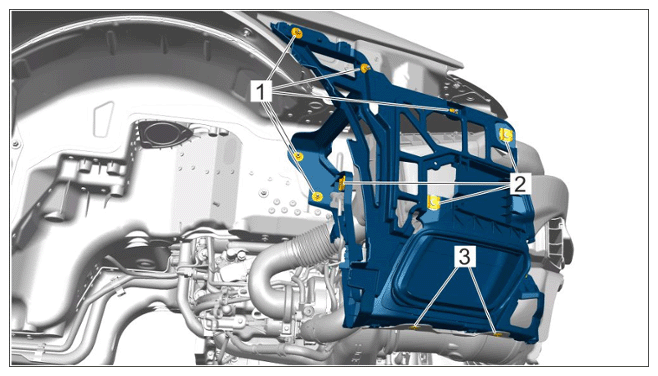

  5. Loosen rear bracket.
    1. 5.1  Unscrew collar nuts -1-  on the retaining frame and remove sheetmetal clips -2-  .
    2. 5.2  Unscrew tapping screws -3-  for lower heat shield.
      G15533238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Side mounting for rear bracket

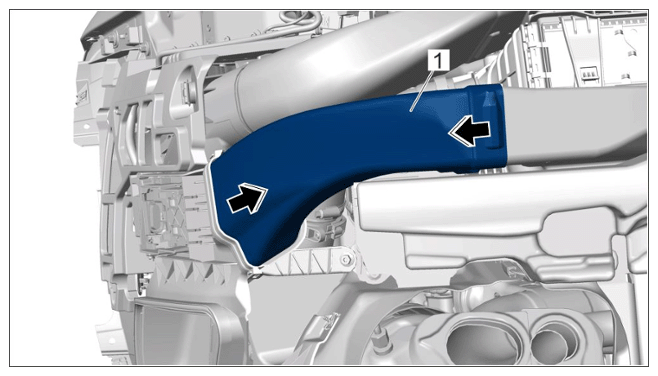

  6. Remove bracket and pull off air guide -1-  (-Arrows-  ).
    G15533239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air guide for charge-air cooling
