Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 63 Bumper -- 992 - 911 CARRERA (992) >> WM, 637319 Removing And Installing Carrier Rear >> Preliminary Work

Preliminary Work

  1. Remove rear apron.

    > 635519 REMOVING AND INSTALLING REAR APRON

  2. Remove rear wheel housing liner (rear section).

    >  WM, 53691903 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER (REAR SECTION)

  3. Remove control unit -1-  for Lane Change Assist.

    917019 REMOVING AND INSTALLING CONTROL UNIT FOR LANE CHANGE ASSIST

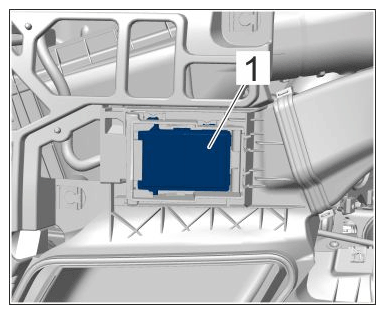

    G15533233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit for Lane Change Assist in rear bracket
