Removing Trim Frame For Tailpipe Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

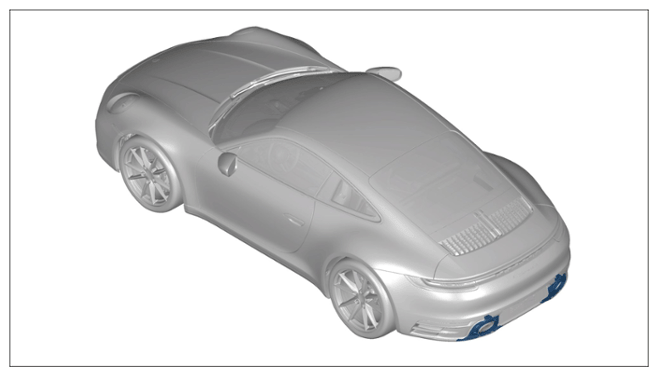

Installation position

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

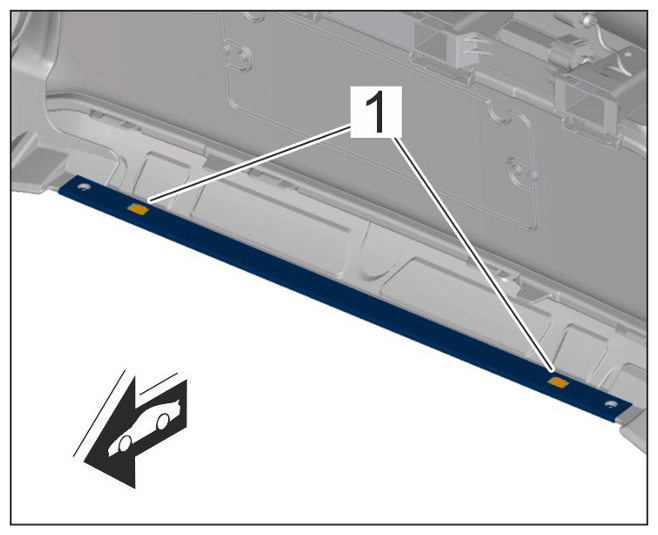

1. Unclip retaining strip -1-  and remove it by pulling it inwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining strip

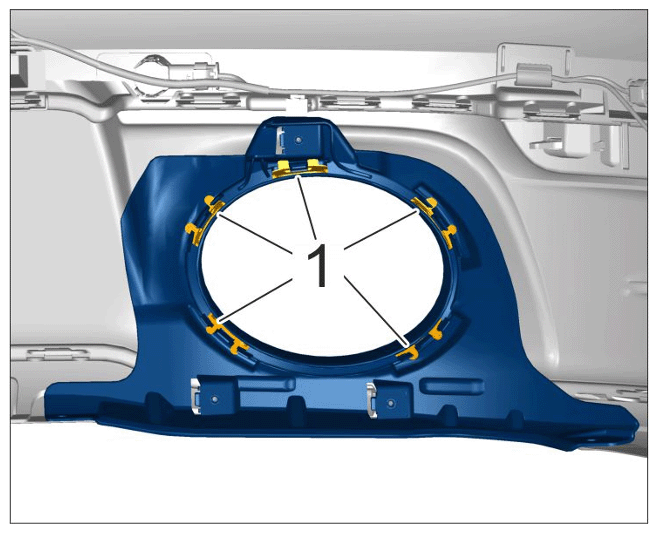

2. Unclip trim frame for tailpipe cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping trim frame

3. Remove trim frame.
