Removing Rear Skirt

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

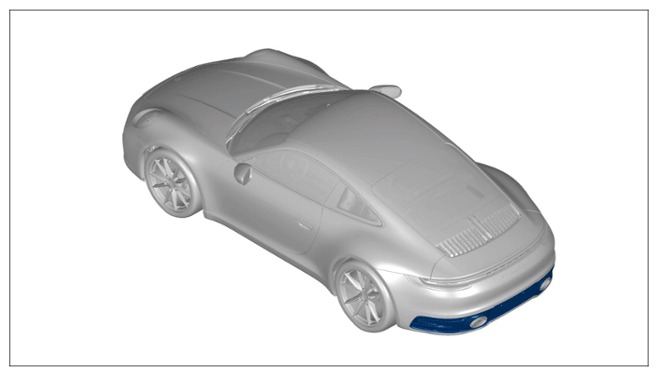

Installation position

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

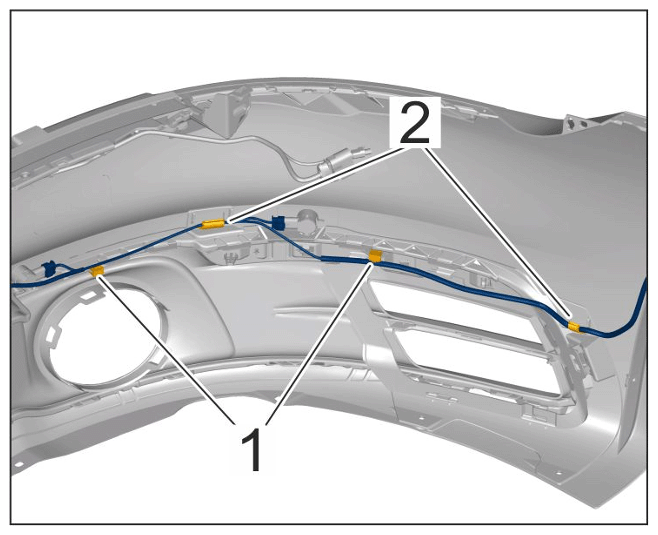

1. Unclip wiring harness from rear skirt -1-  and disengage it -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for rear skirt

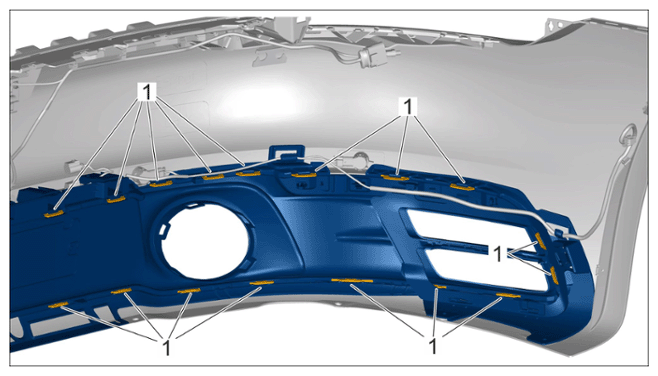

2. Unclip rear skirt from rear apron -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping rear skirt

3. Remove rear skirt by pulling it inwards.
