Removing Rear Retaining Strip At The Centre

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

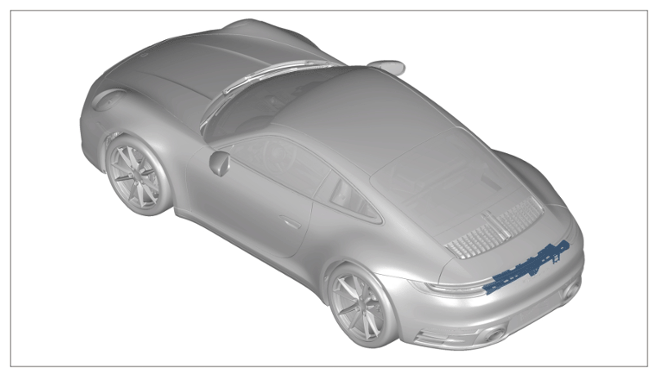

Installation position

Information

The component cannot be removed without damaging it and must always be replaced.

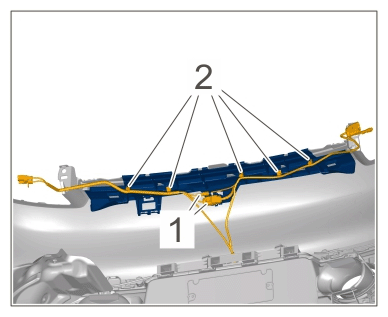

1. Release and disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Unclip wiring harness -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping wiring harness

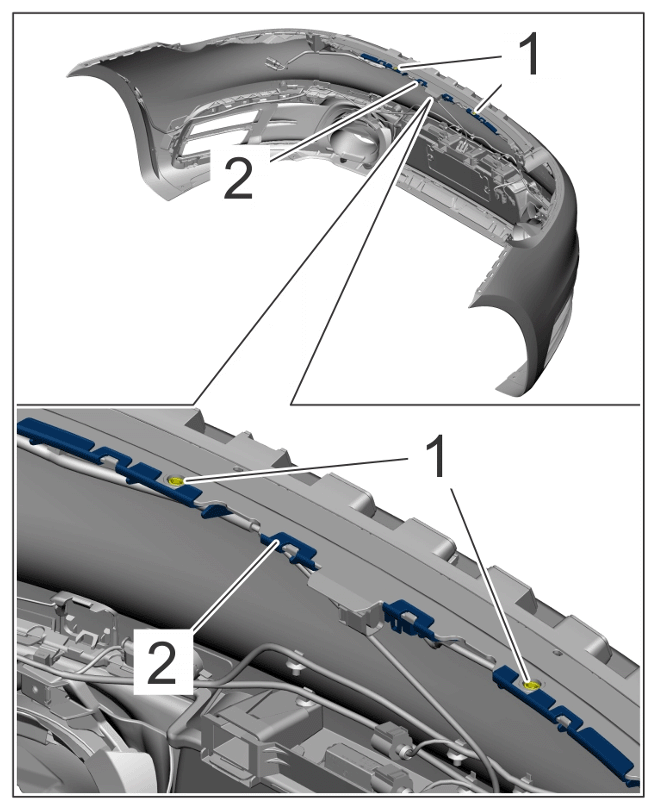

3. Drill out sleeves -1-  from centre of rear retaining strip -2-  with drill bit > diameter 11 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sleeves

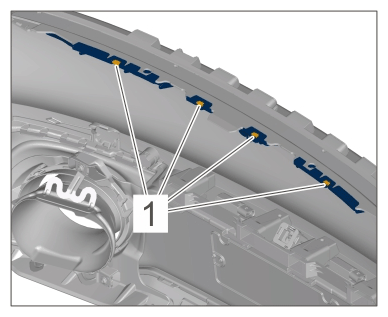

4. Unclip rear retaining strip at the centre -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping retaining strip

5. Remove rear retaining strip at the centre by pulling it inwards.
