Removing Rear Retaining Strip At The Sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

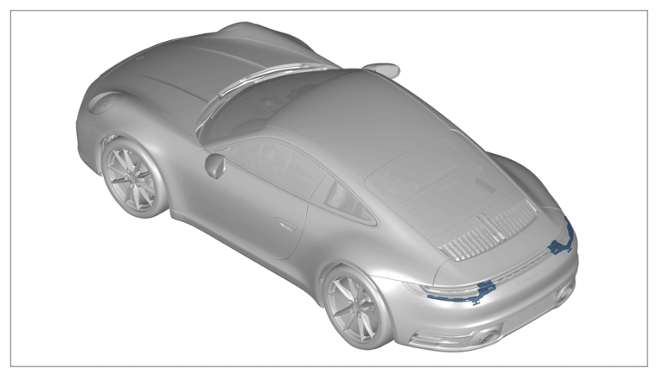

Installation position

1. All models except GT3:

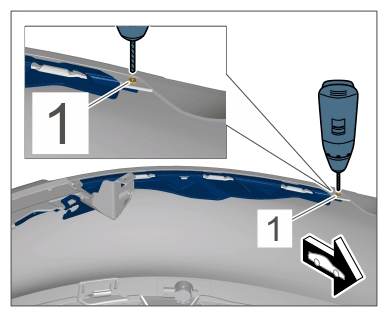

   Drill out rivet -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drilling out rivet

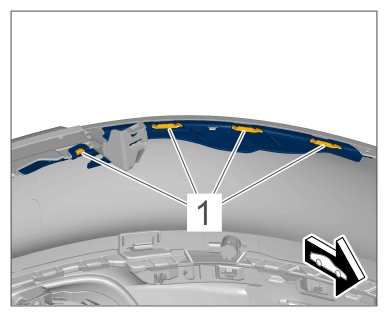

2. Unclip rear retaining strip at the sides in the upper area -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping upper retaining strip

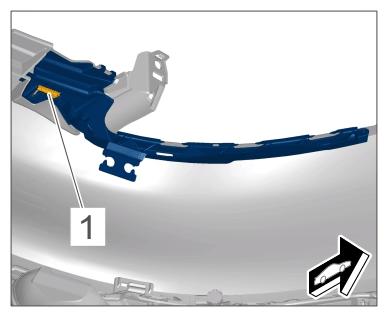

3. Unclip rear retaining strip at the sides in the lower area -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping lower retaining strip

4. Remove rear retaining strip at the sides.
