Removing Rear Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

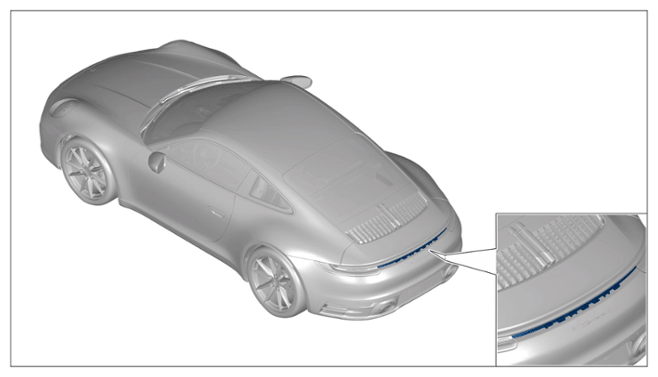

Installation position

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

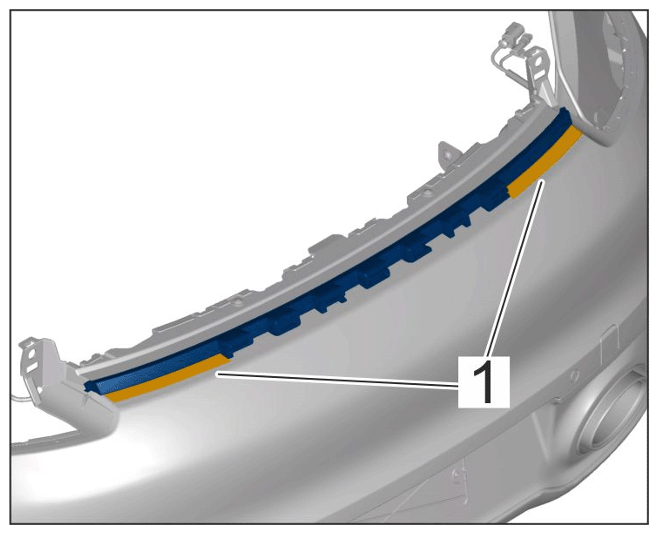

1. Mask the rear apron area -1-  under the rear panel to prevent damage to the paintwork.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Masking rear apron

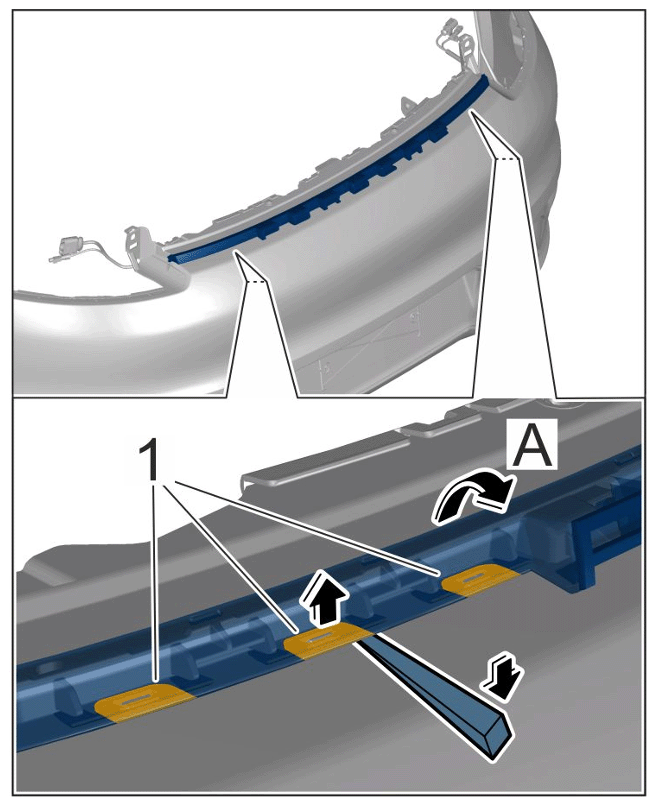

2. Unclip rear panel using an assembly wedge -1-  and tilt it to the rear -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping rear panel

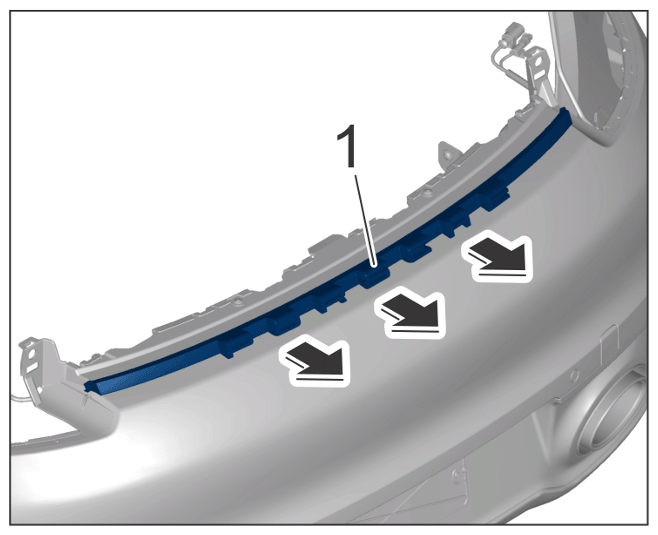

3. Unclip rear panel -1-  in the centre area from the outside in -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping rear panel

4. Remove rear Panel.
