Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear bumper	Items 1 and 2	Tightening torque	3.2 Nm (2.4 ftlb.)

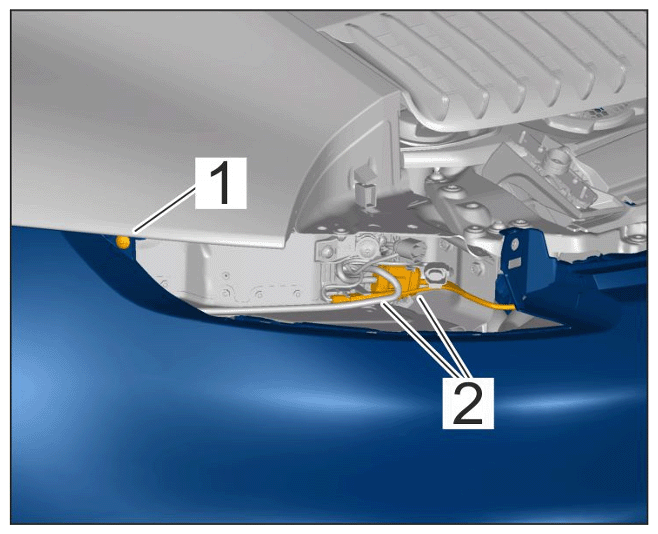

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear bumper screws
Rear bumper	Item 1	Tightening torque	7 Nm (5.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear bumper screw
Rear bumper lower	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)

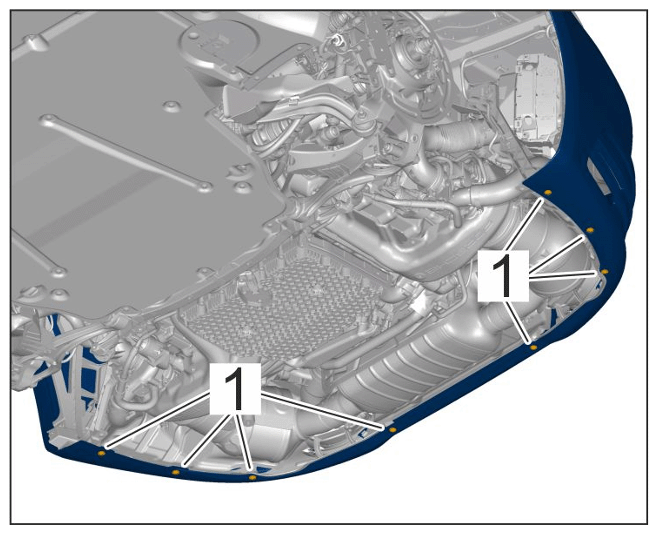

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear bumper, bottom
Rear bumper upper	Item 1	Tightening torque	3.2 Nm (2.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear bumper, top
Rear wheel housing liner (front section)	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)	+ 10 %	- 15 %

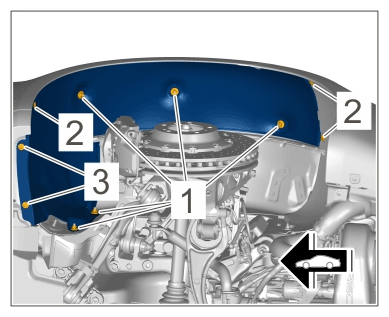

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening parts
