Removing Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

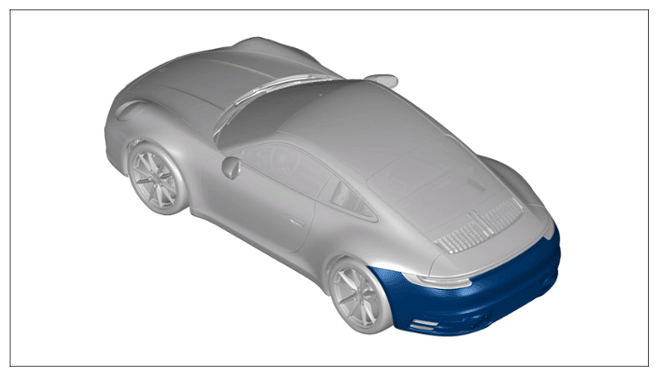

Installation position

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

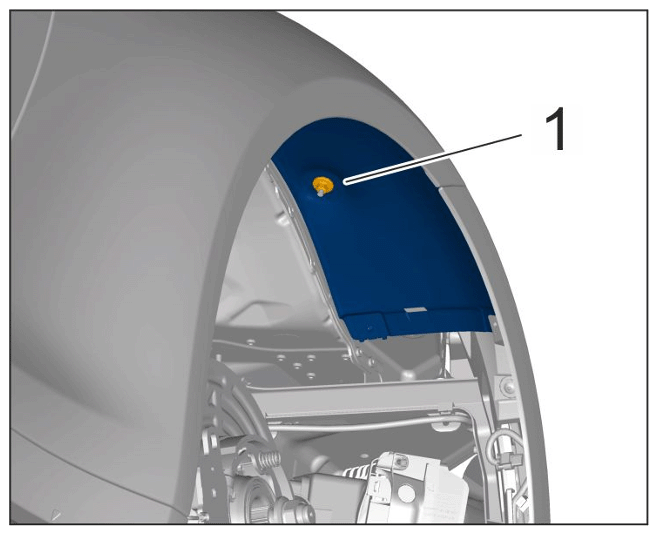

1. Unscrew nut on rear wheel housing liner -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nut on wheel housing liner

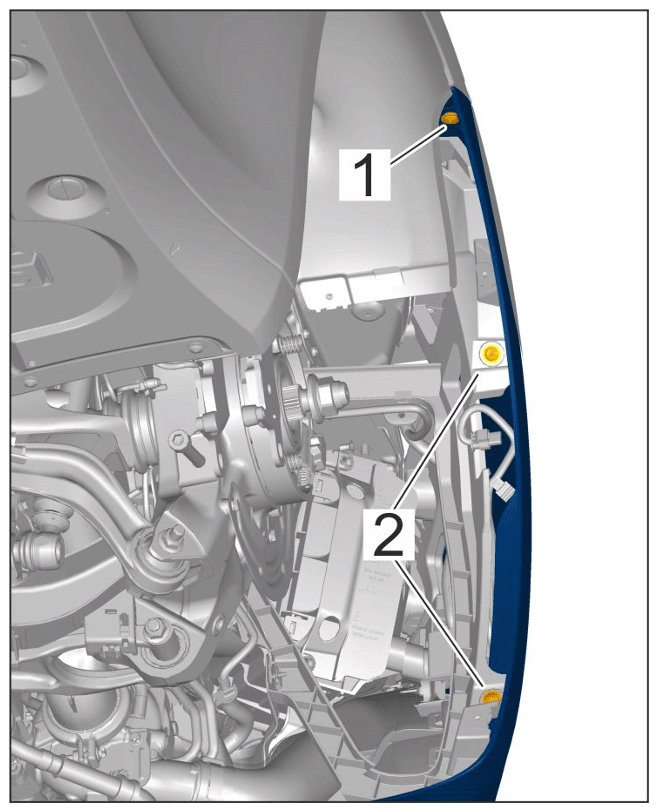

2. Unscrew and remove screws -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on rear apron at wheel housing

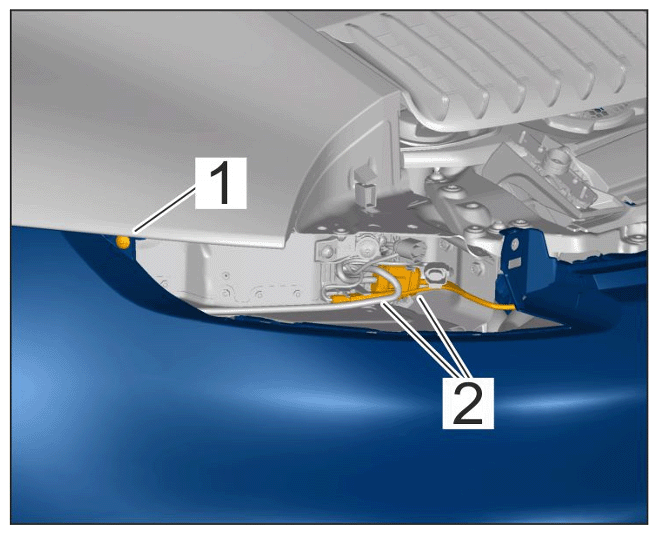

3. Unclip plug connections -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for rear apron

4. Unscrew and remove screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw on rear apron

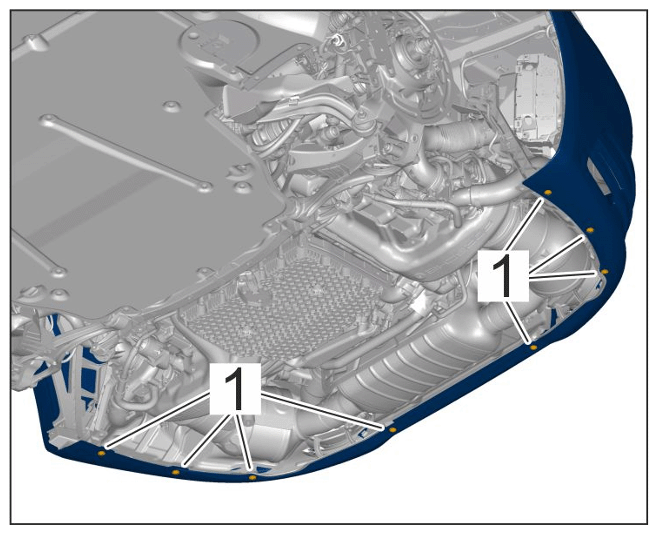

5. Unscrew screws at the bottom -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on rear apron, bottom

6. Unscrew screws -1-  at the top.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on rear apron, top

   Information

   Get another person to help you to remove the rear apron.

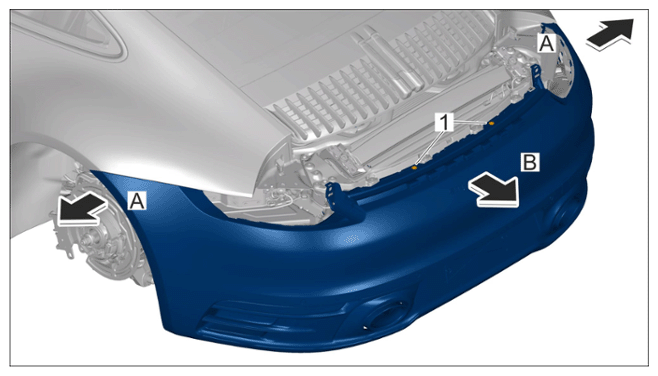

7. Carefully disengage rear apron at the sides -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging rear apron

8. Remove rear apron by pulling i to the rear -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear apron
