Removing Rear Bumper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

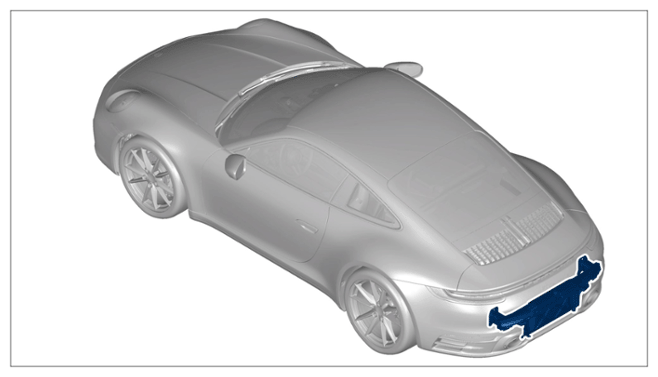

Installation position

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

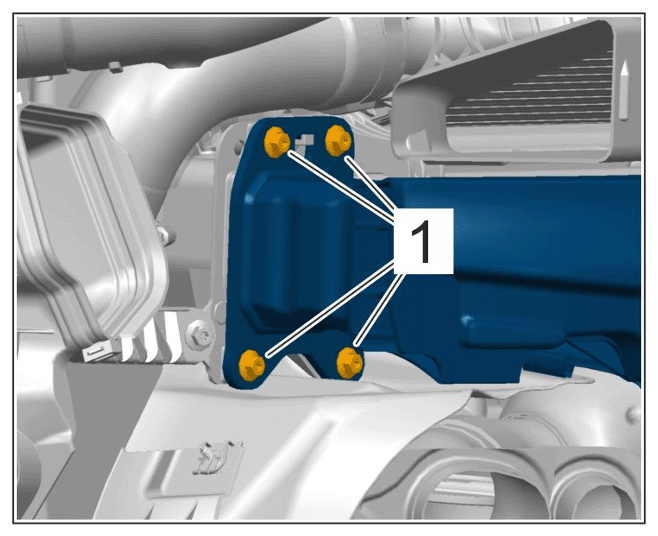

1. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on bumper

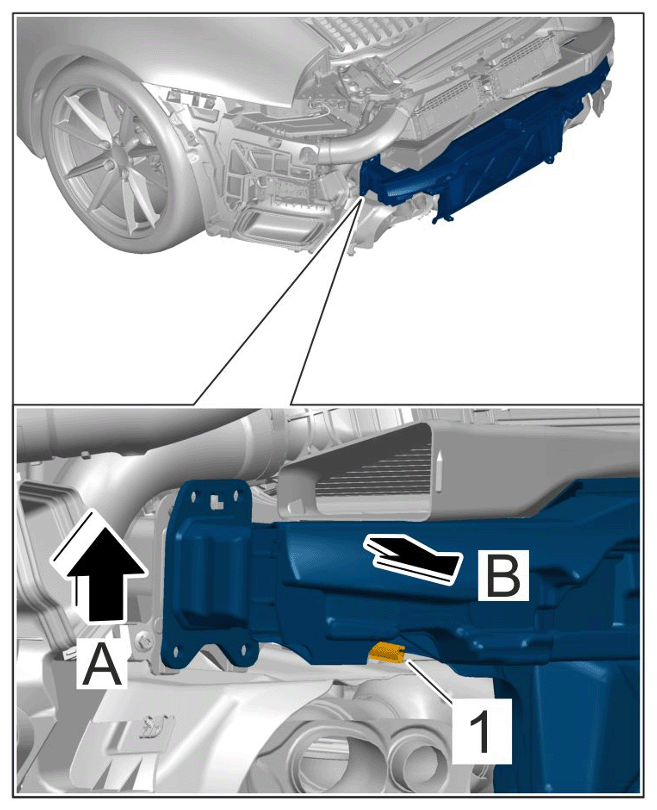

2. Lift rear bumper up slightly -A-  and remove it by pulling it to the rear -B-  . Make sure to lift the seal -1-  off the heat shield.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear bumper
