Installing Rear Bumper

  1. Installation is performed in reverse order.

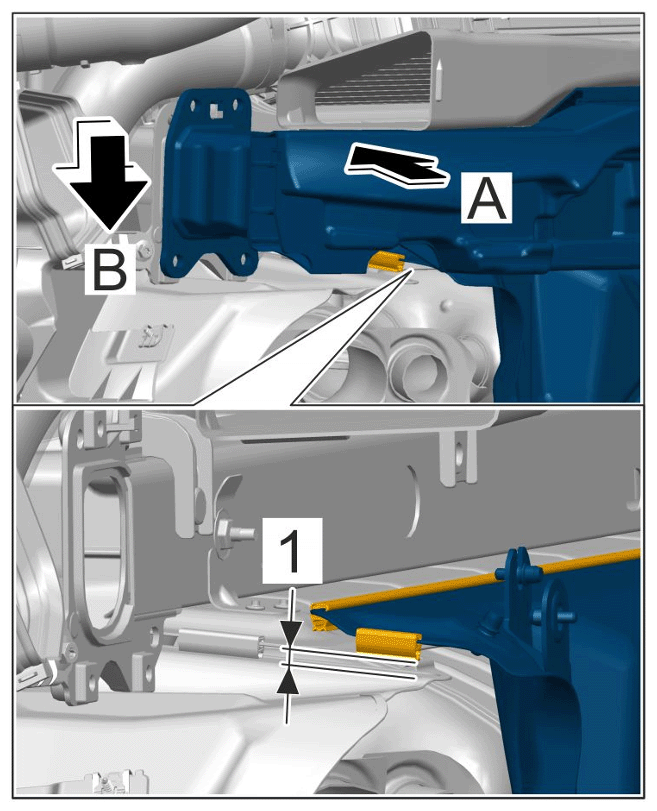

  2. Lift up the bumper, guide it in -A-  and set it down at its end position -B-  . Check the gap between the seal and heat shield during installation.
    G15533196Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing rear bumper

  3. Check that the seal is fitted fully on the heat shield.
  4. Tighten screws to > Tightening torque 23 Nm (17 ftlb.)  .
