63 Bumper -- 992 - 911 CARRERA (992)
>>
WM, 63171903 Removing And Installing (Outer Side) Retaining Strip
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Retaining strip (outer side)
Item 1
Tightening torque
4.5 Nm (3.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

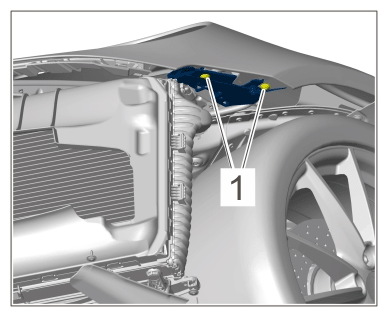

Screws for (outer side) retaining strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
