63 Bumper -- 992 - 911 CARRERA (992)
>>
WM, 63171900 Removing And Installing (Centre) Retaining Strip
>>
Removing (Centre) Retaining Strip
Removing (Centre) Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

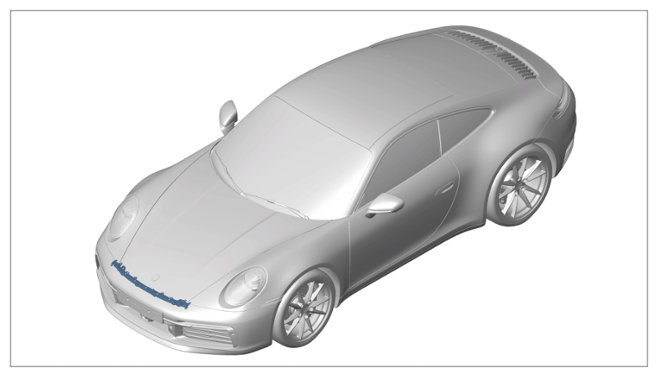

Installation position
Unscrew and remove screws
-1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

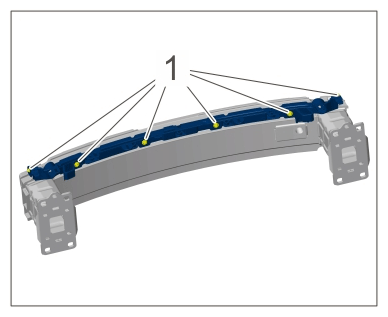

Screws on (centre) retaining strip
Remove (centre) retaining strip.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
