Disassembling Front Apron

  1. Remove cover on towing lug.

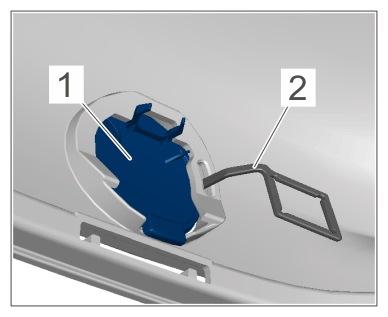

    G15533179Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for towing lug

    1. 1.1  Press out the cover -1-  .
    2. 1.2  Guide out safety strap -2-  .
  2. Press out the cover -1-  .
  3. Unhook safety strap -2-  .
