Assembling Front Apron

  1. Install cover for towing lug.

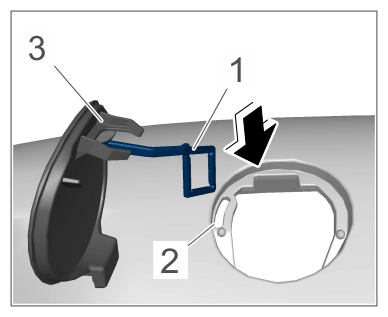

    G15533180Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for towing lug

    1. 1.1  Guide in safety strap -1-  . -arrow-
    2. 1.2  Clip in cover -2-  .
