Removing Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

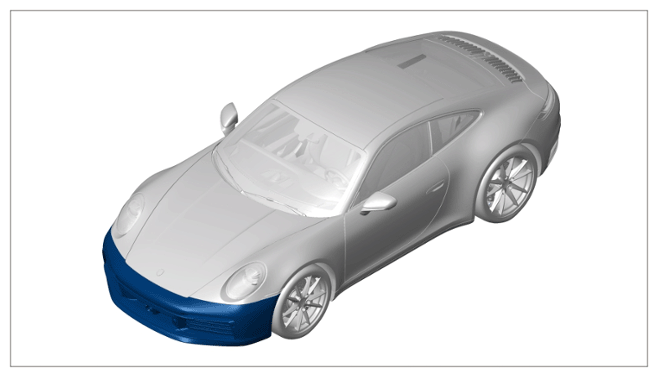

Installation position

1. Unscrew screws at the bottom -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

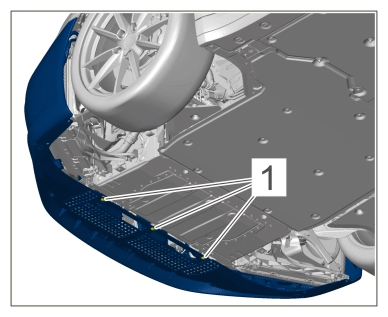

   Bottom of front apron

2. Unscrew screw at the sides, -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

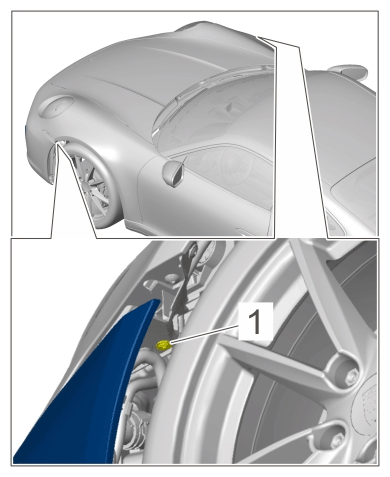

   Side of front apron

3. Disconnect hose for cleaning system -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

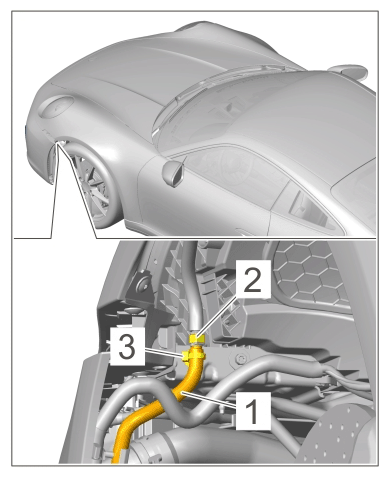

   Hose for cleaning system

   1. 3.1  Disconnect hose for cleaning system -1-  by pressing in the locking mechanism -2-  .
   2. 3.2  Unclip holder -3-  .
4. Loosen wiring harnesses.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

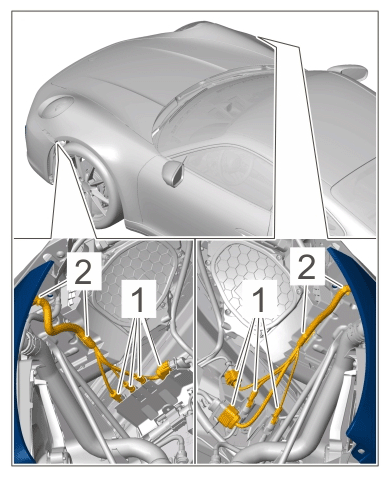

   Electric plug connection

   1. 4.1  Release and unplug electric plug connections -1-  .
   2. 4.2  Unclip wiring harnesses -2-  .
5. Pull off locking mechanism using > T10118 - assembly tool  or > 3438 - hook  . -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

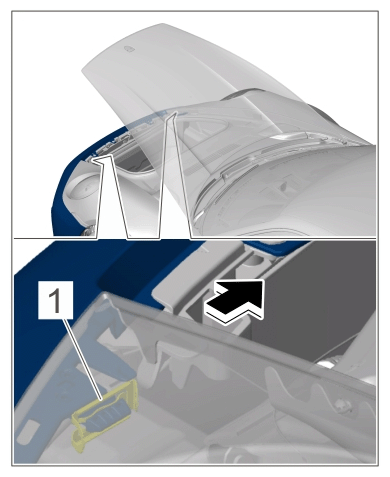

   Locks on top of front apron

6. Unscrew screws -1-  and remove front apron -2-  by pulling it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

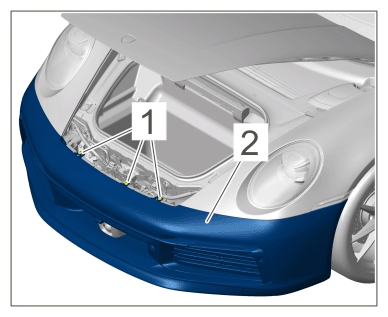

   Top of front apron
