Removing Front Bumper

Information

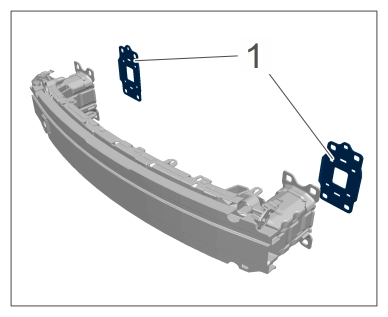

Seals -1-  between the front bumper and body must always be replaced whenever the front bumper is removed and installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

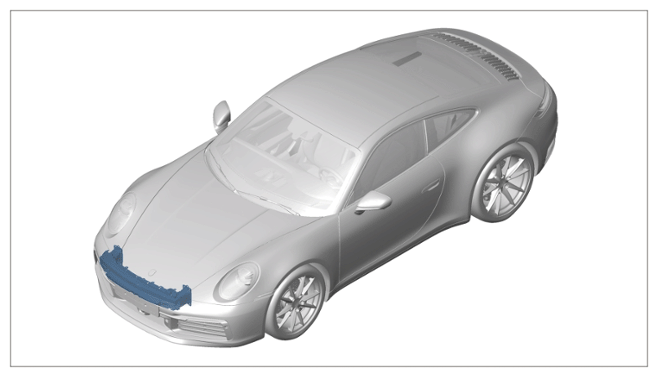

Installation position

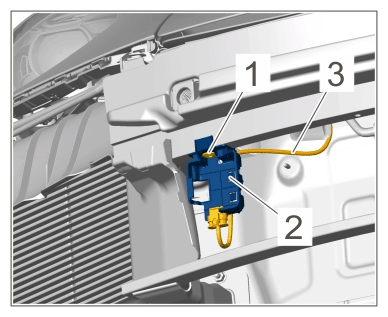

1. Unscrew screw -1-  and leave holder -2-  hanging on cable -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for garage door opener control unit

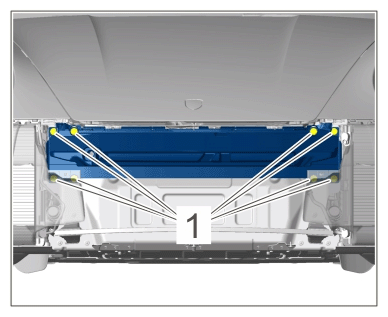

2. Only for Turbo:  Unscrew screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

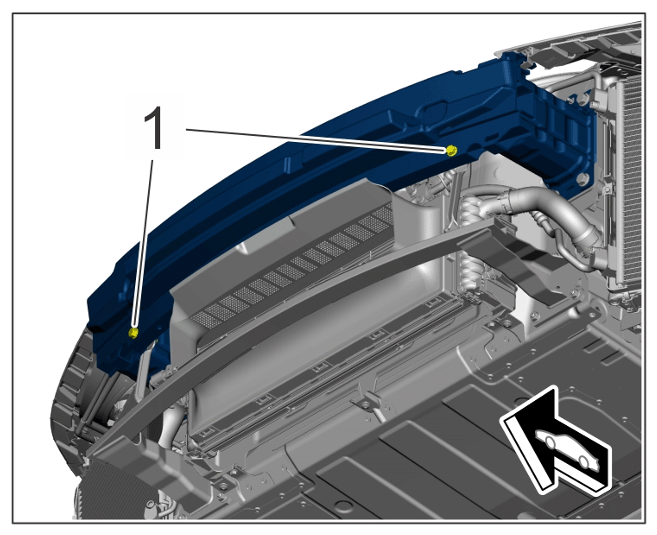

3. Unscrew screws -1-  and remove bumper -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front bumper
