WM, 635519 Removing And Installing Rear Apron: Notes

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear apron	Items 1 and 2	Tightening torque	3.2 (2.2 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear apron

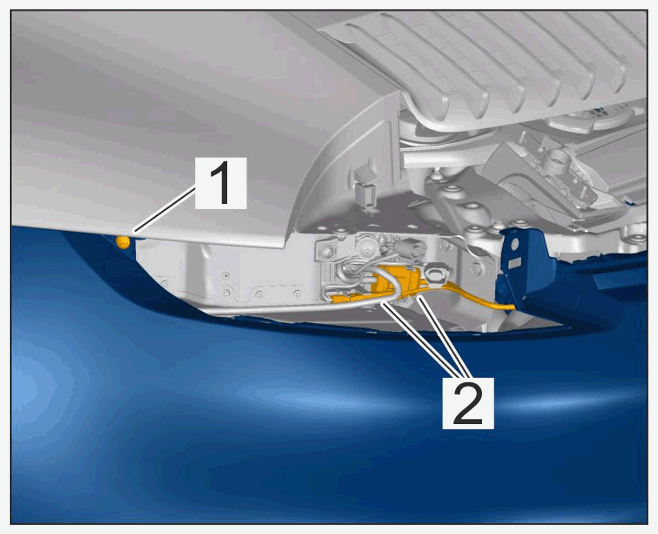

Rear apron	Item 1	Tightening torque	7 (5 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on rear apron

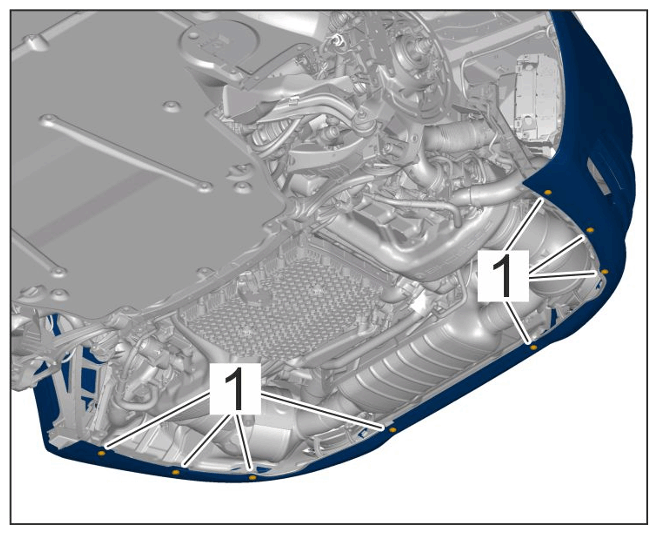

Rear apron, bottom	Item 1	Tightening torque	3.2 (2.2 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear apron, bottom
Rear apron, top	Item 1	Tightening torque	3.2 (2.2 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear apron, top

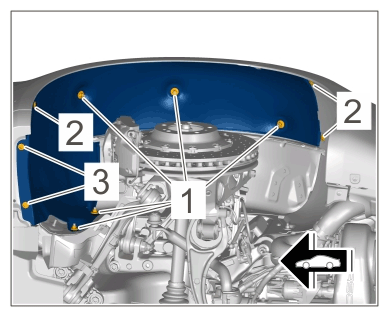

Rear wheel housing liner (front section)	Item 1	Tightening torque	2.5 (1.75 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening parts
