WM, 63171900 Removing And Installing (Centre) Retaining Strip: Notes
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Retaining strip (centre) |
Item 1 |
Tightening torque |
9.2 (6.6 ft.lb) Nm |
+/- 0.5 (0.3 ft.lb) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

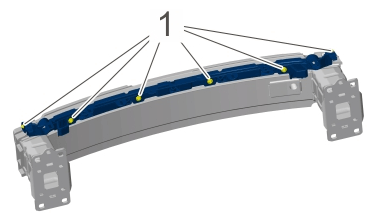

Screws on (centre) retaining strip
