WM, 631519 Removing And Installing Front Apron: Notes

Tool denomination	Type	Tool number	Image
assembly tool	VW tool	> T10118	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
hook	VW tool	> 3438	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Front apron, bottom	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

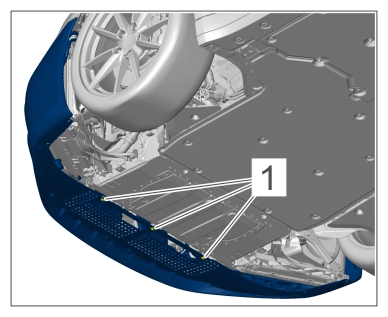

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bottom of front apron
Front apron, sides	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

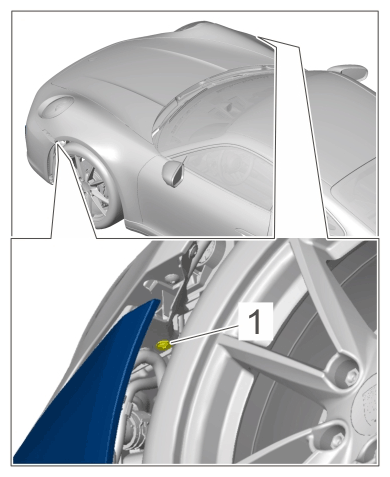

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side of front apron
Front apron, top	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

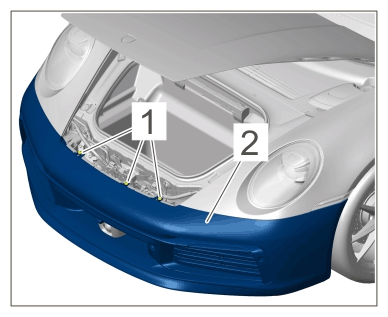

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top of front apron
