WM, 63151920 Removing And Installing Front Apron: Notes

Tool denomination	Type	Tool number	Image

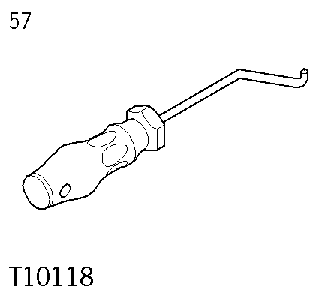

assembly tool	VW tool	> T10118	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
hook	VW tool	> 3438	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value
Front apron, sides	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

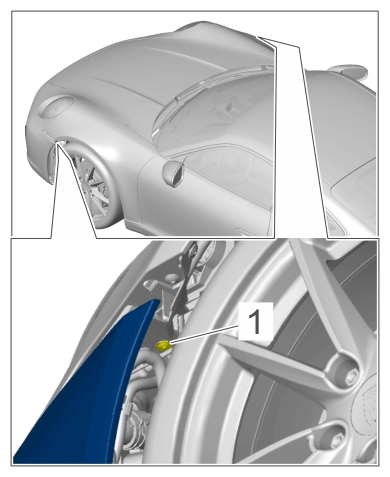

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side of front apron
Front apron, top	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

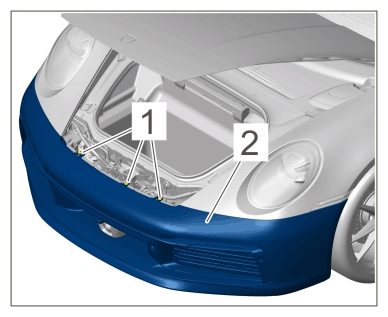

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Top of front apron
Lower part of front apron	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm

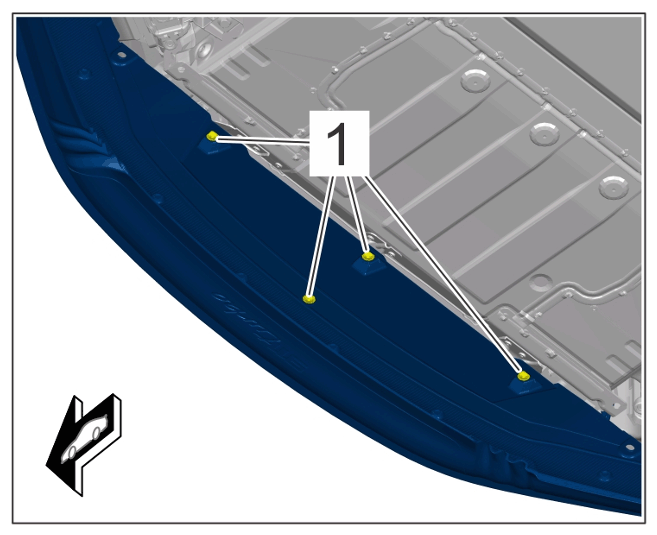

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of front apron
