Underbody Protection

Information

• In the event of repairs, after painting or before fitting units, restore standard stone guard/underbody protection according to the following illustrations.
• The surfaces must be dry and free of grease and dirt before applying underbody protection. Clean the areas with cleaning solution and a lint-free cloth.
• Only apply underbody protection to primed panels.
• The seam seal can be painted over when a skin has formed (about 15 - 30 minutes at 20°C, 50% relative air humidity. Higher air humidity or dampening with water accelerates the hardening process).
• Hardening can be checked by a nail test. Press your finger nail gently into the hardened material; if this causes no damage to the surface, the material can be painted.
• Paint over underbody protection within 3 days.

Information

• The sealing compound  > SEALING COMPOUND 000.043.207.67  can be applied as underbody protection by spraying it on using > VAS 6648-Pneumatic Gun. 18 bar  .

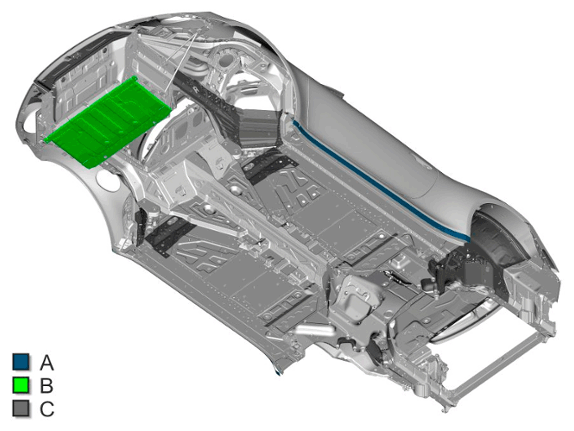

This information applies in addition to the illustrations of the vehicle areas. See 3D PDF

> 5X00IN43 UNDERBODY PROTECTION

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underbody protection

• Lower side member

  Location	Description	Type	Basic value	Tolerance
  Underbody protection, low thickness	Area A	Application depth	0.4 mm	+/- 0.1 mm
  Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection

• Floor panel for front luggage compartment

  Location	Description	Type	Basic value	Tolerance
  Underbody protection, medium thickness	Area B	Application depth	0.6 mm	+/- 0.1 mm
  Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection

• Front side member
• Rear wheel housing
• Floor panel at firewall
• Centre rear end

  Location	Description	Type	Basic value	Tolerance
  Underbody protection, high thickness	Area C	Application depth	1.1 mm	+/- 0.1 mm
  Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection
