WM, 5X00IN43 Underbody Protection: Notes

PARTS DESCRIPTION

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image
Pneumatic Gun, 18 bar	General workshop equipment	> VAS 6648	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Underbody protection, low thickness	Area A	Application depth	0.4 mm	+/- 0.1 mm

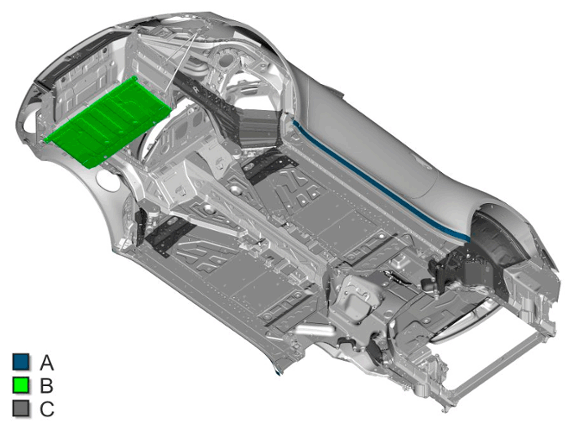

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection
Underbody protection, medium thickness	Area B	Application depth	0.6 mm	+/- 0.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection
Underbody protection, high thickness	Area C	Application depth	1.1 mm	+/- 0.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody protection
