Technical Values: Windscreen

Location Description Type Basic value Tolerance
Windscreen to side panel, top (F51_0) Dimension A Gap dimension 3 mm +/- 0.7 mm
G14224070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of windscreen
Windscreen to side panel, top (F51_0) Dimension B Offset - 2 mm +/- 0.8 mm

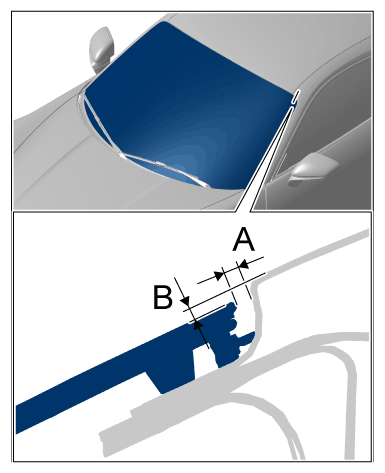

G14224071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of windscreen
Windscreen to side panel, centre (F51_1) Dimension A Gap dimension 3 mm +/- 0.7 mm
G14224072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of windscreen, centre
Windscreen to side panel, centre (F51_1) Dimension B Offset - 2 mm +/- 0.8 mm

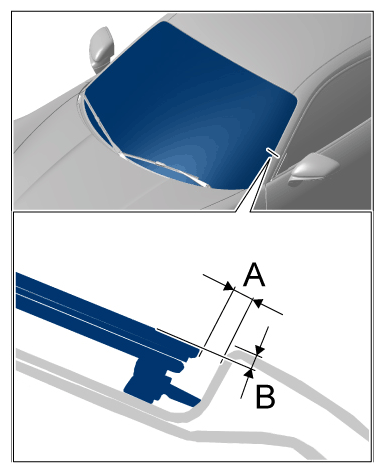

G14224073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of windscreen, centre
