Tail Light

Location	Description	Type	Basic value	Tolerance

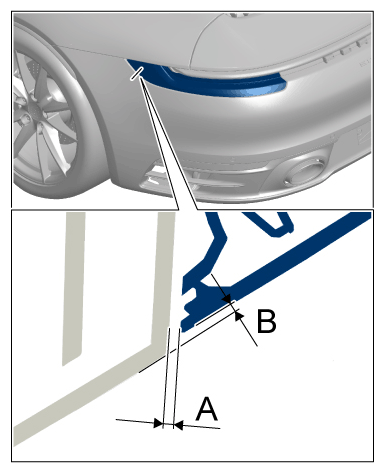

Tail light to side panel (H11)	dimension A	gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and side panel
Tail light to side panel (H11)	dimension B	offset	2.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and side panel

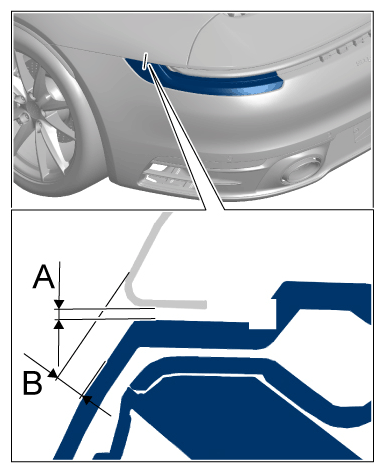

Tail light to outer rear apron (H14 4)	dimension A	gap dimension	2.0 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and outer rear apron
Tail light to outer rear apron (H14 4)	dimension B	offset	2.0 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and outer rear apron

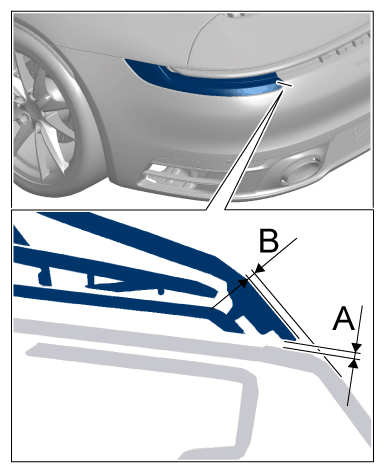

Tail light to bottom rear apron (H14 3)	dimension A	gap dimension	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and bottom rear apron
Tail light to bottom rear apron (H14 3)	dimension B	offset	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and bottom rear apron

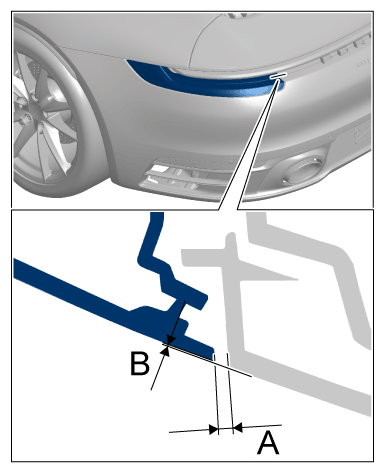

Tail light to bottom rear apron (H14 2)	dimension A	gap dimension	1.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner bottom rear apron
Tail light to inner bottom rear apron (H14 2)	dimension B	offset	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner bottom rear apron

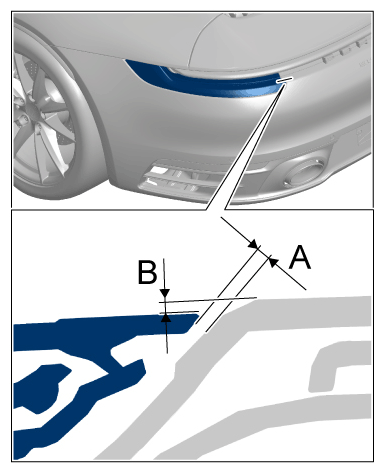

Tail light to inner rear apron (H14 1)	dimension A	gap dimension	1.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner rear apron
Tail light to inner rear apron (H14 1)	dimension B	offset	1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner rear apron

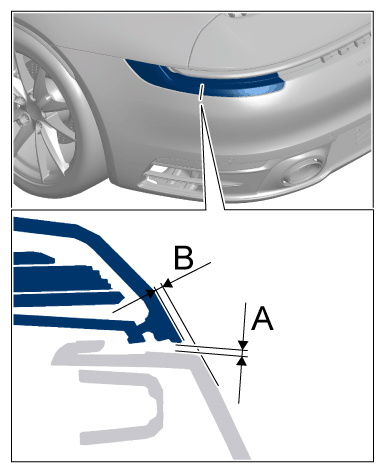

Tail light trim to trim logo (H14 0)	dimension A	gap dimension	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light trim and trim logo
Tail light trim to trim logo (H14 0)	dimension B	offset	0 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light trim and trim logo
