Technical Values: Spoiler

Location	Description	Type	Basic value	Tolerance

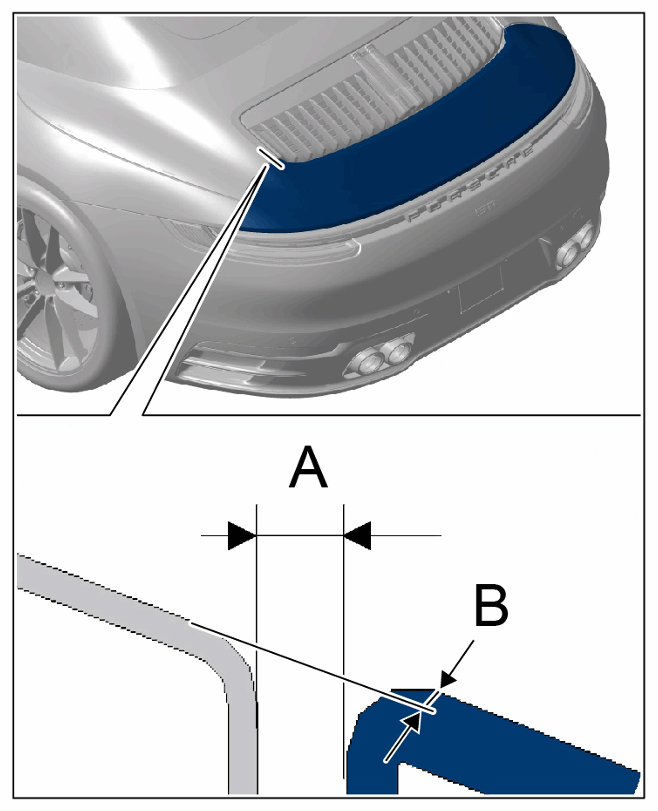

Side panel to rear spoiler (H72_1)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_1)	Dimension B	Offset	- 0.8 mm	+ 0.7 mm -0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler

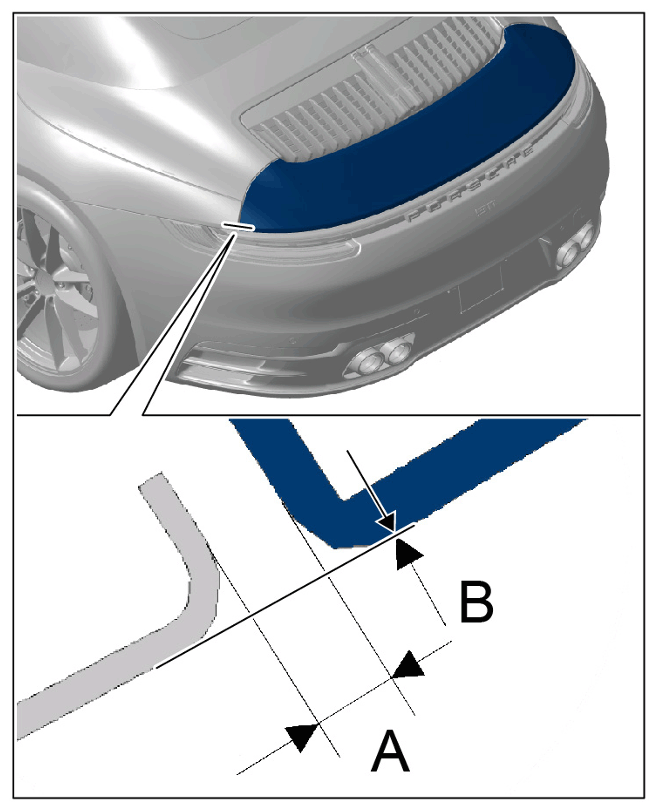

Side panel to rear spoiler (H72_2)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_2)	Dimension B	Offset	0 mm	+ 0.7 mm -0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler

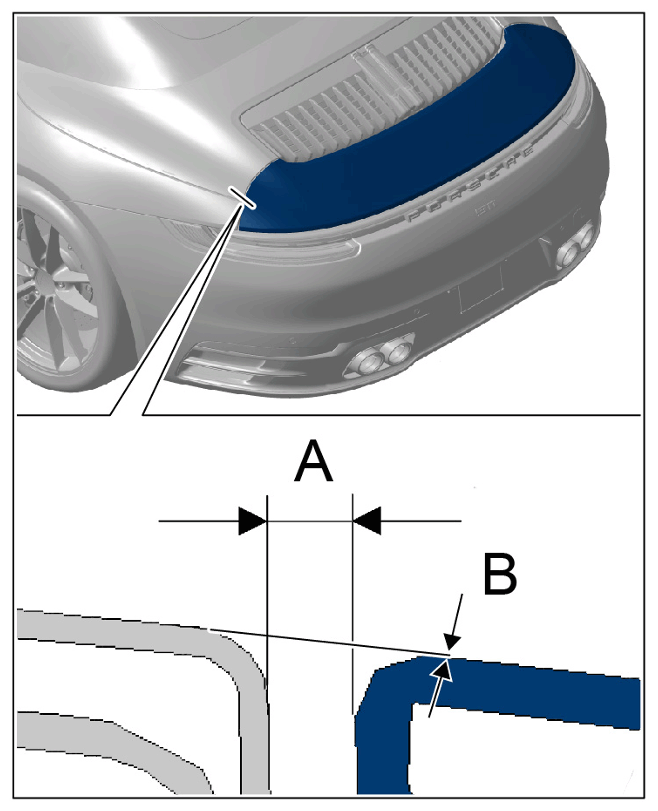

Side panel to rear spoiler (H72_3)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_3)	Dimension B	Offset	0 mm	+ 0.7 mm -0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
