Rear Apron

Location	Description	Type	Basic value	Tolerance
Side panel to rear apron (H30-0)	Dimension A	Gap dimension	0 mm	+ 0.5 mm

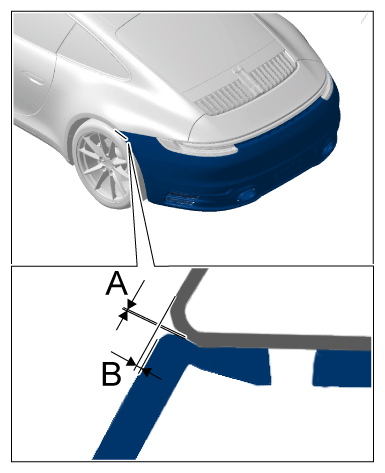

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-0)	Dimension B	Offset	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-1)	Dimension A	Gap dimension	0 mm	+/- 0.5 mm

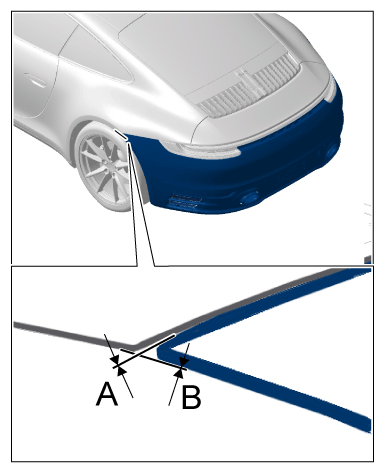

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-1)	Dimension B	Offset	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
