Light Panel

Location	Description	Type	Basic value	Tolerance

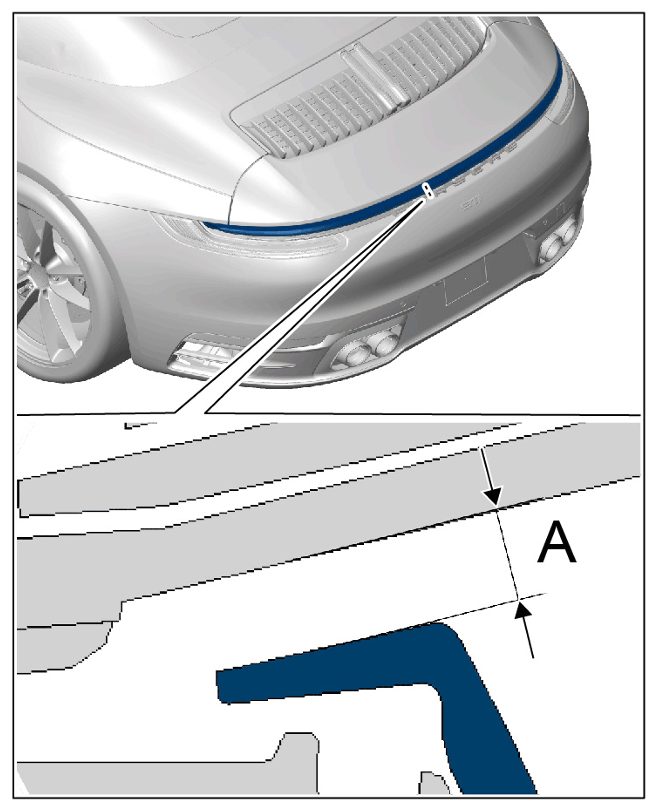

Tail light to light panel (H14a_2)	Dimension A	Gap dimension	4.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail light to light panel

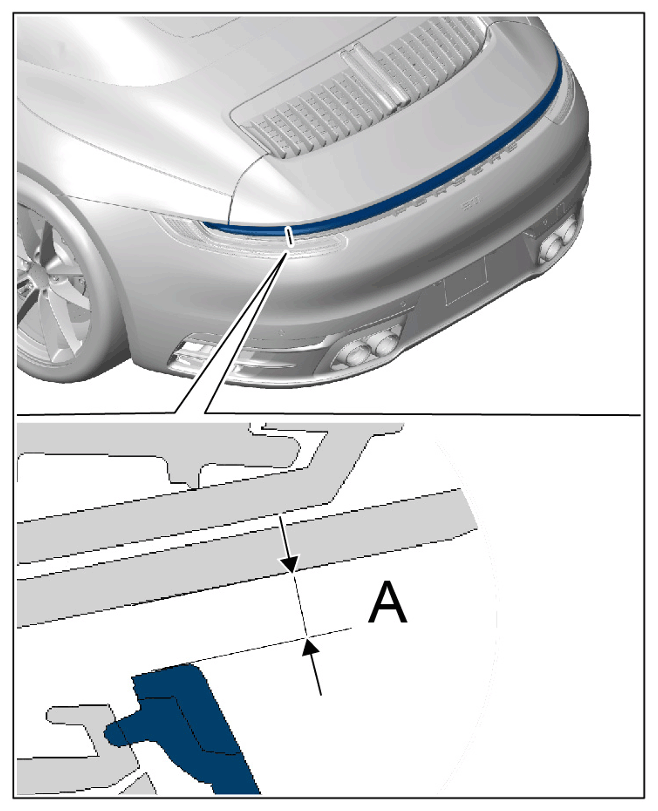

Tail light to light panel (H14a_3)	Dimension A	Gap dimension	10 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail light to light panel

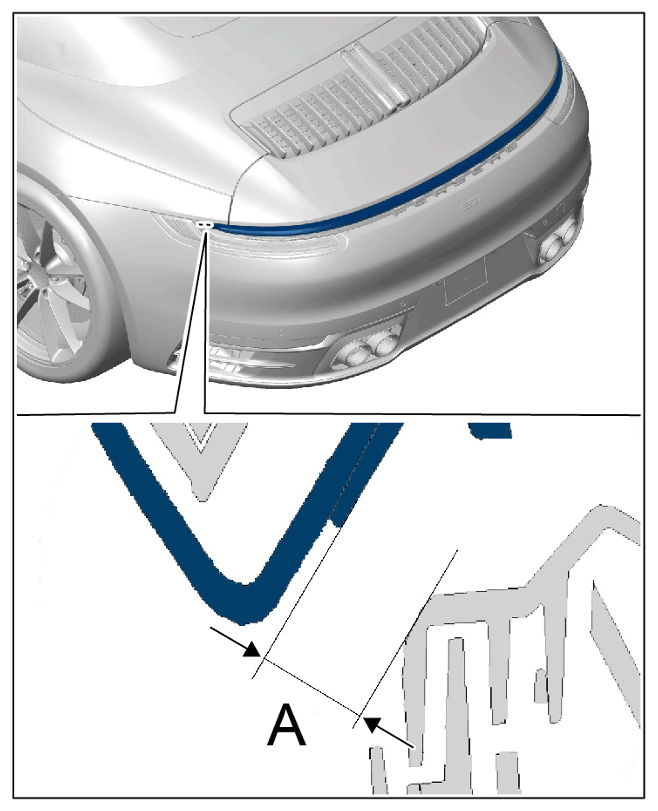

Logo trim to light panel (HP204)	Dimension A	Gap dimension	4.7 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Logo trim to light panel
