Technical Values: Headlights

Location	Description	Type	Basic value	Tolerance
Main headlight to wing (F13 0)	dimension A	gap dimension	2.5 mm	+/- 0.5 mm

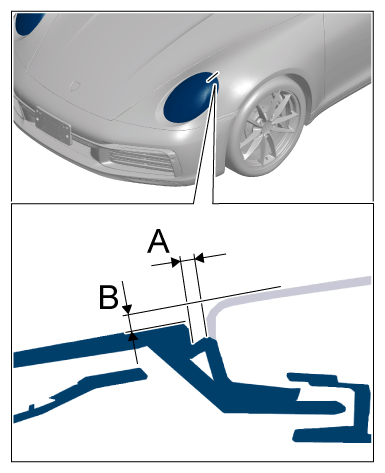

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between top of main headlights
Main headlight to wing (F13 0)	dimension B	offset	- 2.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between top of main headlights
Main headlight to wing (F13 1)	dimension A	gap dimension	2.5 mm	+/- 0.6 mm

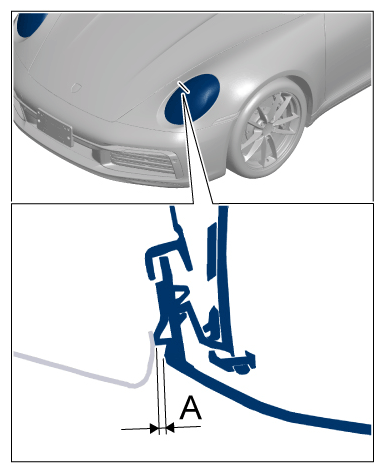

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between outside of main headligts		hts
Main headlight to wing (F13 2)	dimension A	gap dimension	2.5 mm	+/- 0.8 mm

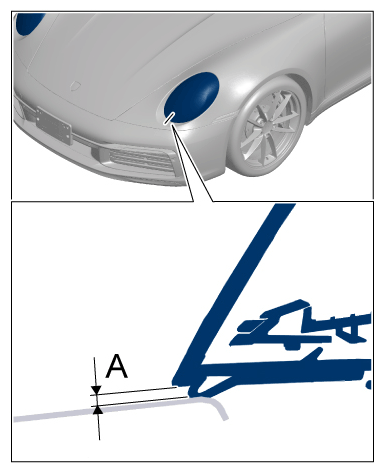

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between bottom of main headlights
Main headlight to wing (F13 3)	dimension A	gap dimension	2.5 mm	+/- 0.6 mm

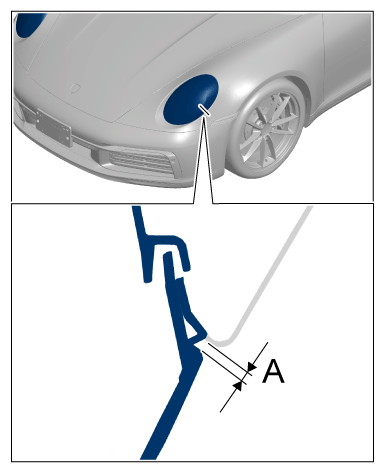

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between inside of main headlights
