Gap Dimensions: Trim Panel For Targa Bar

Location	Description	Type	Basic value	Tolerance

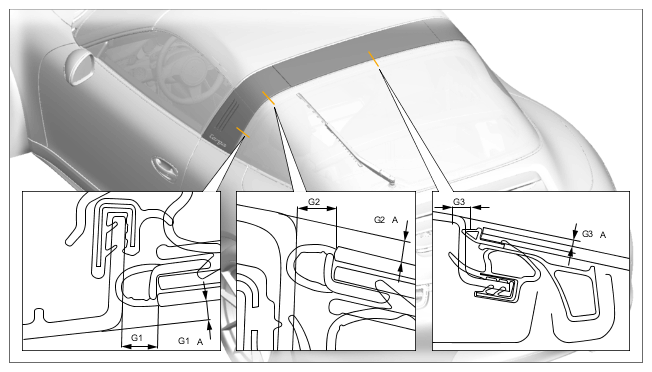

Targa bar to glass dome (G1)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Targa bar to glass dome (G2)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Targa bar to glass dome (G3)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G1 A)	Offset must be recessed	Gap dimension	3.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G2A)	Offset must be recessed	Gap dimension	3.3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G3A)	Offset must be recessed	Gap dimension	3.3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome

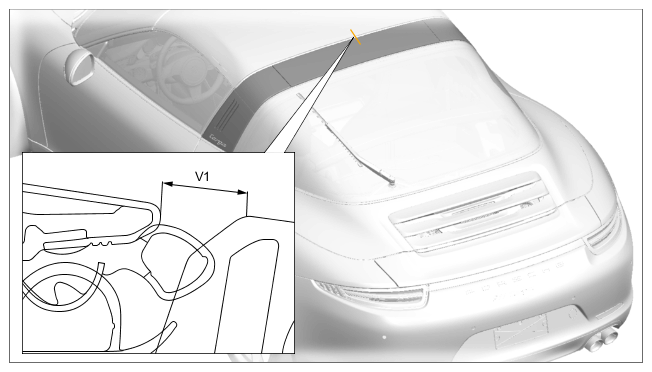

Targa bar to convertible top (V1)		Gap dimension	7 mm	+/-1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to convertible top

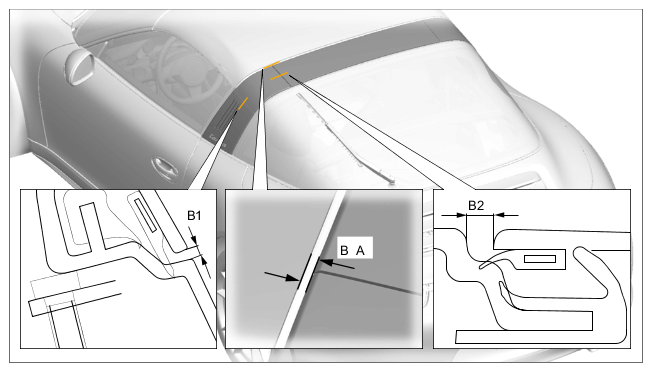

Trim panel on sides of Targa bar to trim panel flap (B1)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar
Trim panel flap to centre trim panel on Targa bar (B2)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar
Offset of centre trim panel on Targa bar to trim panel flap (BA)	Offset must be recessed	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar
