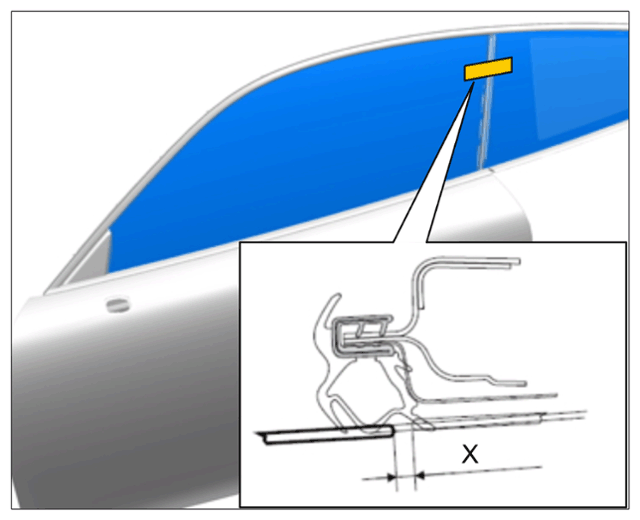

| Door window with respect to side window |
|
Gap dimension |
7 mm |
+/- 0.7 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of door window |
|
|
|
|

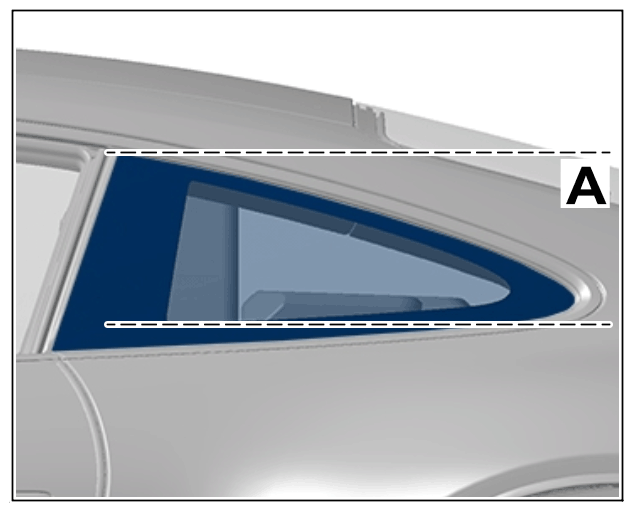

| Side window offset with respect to door window |
|
Gap dimension |
0 mm |
- 2 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Side window offset |
|
|
|
|
