Gap Dimensions Of Panorama Roof

Location Description Type Basic value Tolerance
Panoramic roof assembly to side panel, front (D14a_1) Dimension A Gap dimension 5.9 mm +/-1.0 mm
G14224036Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, front (D14a_1) Dimension B Offset - 0.2 mm - 1.5 mm

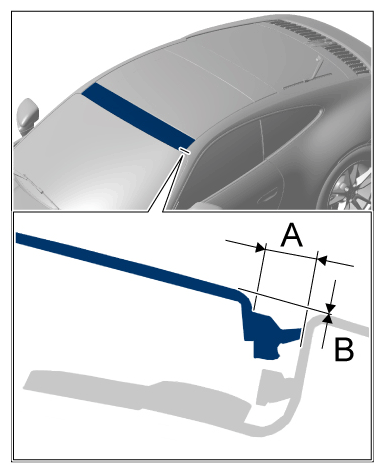

G14224037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, front (D14a_2) Dimension A Gap dimension 5.8 mm +/-1.0 mm

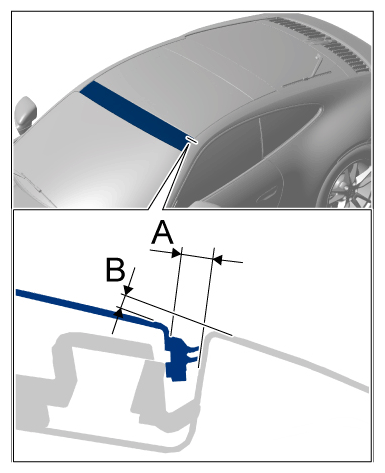

G14224038Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, front (D14a_2) Dimension B Offset - 1 mm - 1.5 mm
G14224039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, centre (D14a_3) Dimension A Gap dimension 4.6 mm +/-1.0 mm

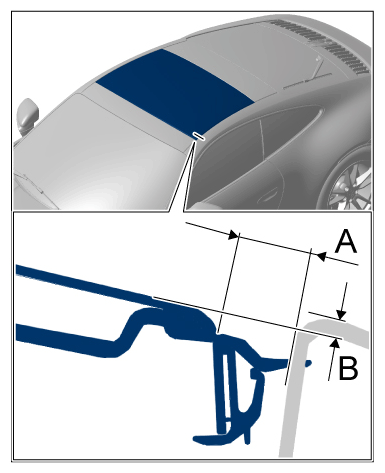

G14224040Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a_3) Dimension B Offset - 1.6 mm - 1.5 mm
G14224041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a 4) Dimension A Gap dimension 4.8 mm +/-1.0 mm
G14224042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a_4) Dimension B Offset - 0.7 mm - 1.5 mm

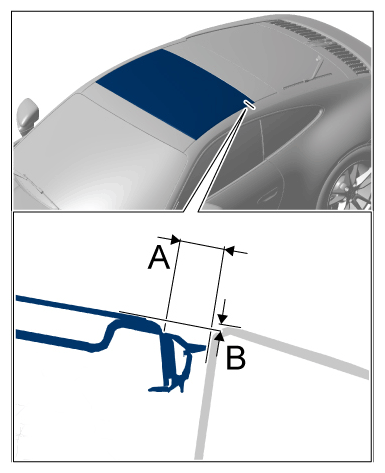

G14224043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, rear (D14a_5) Dimension A Gap dimension 4.5 mm +/-1.0 mm

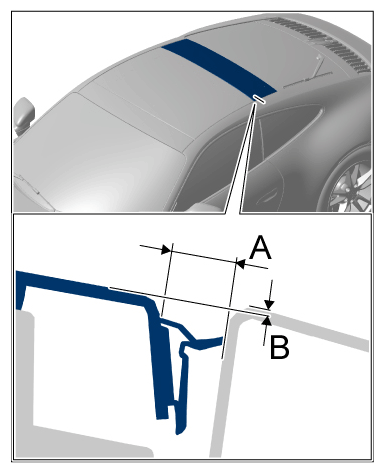

G14224044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_5) Dimension B Offset - 0.7 mm - 1.5 mm
G14224045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_6) Dimension A Gap dimension 5.9 mm +/-1.0 mm
G14224046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_6) Dimension B Offset 0.2 mm +/-1.5 mm

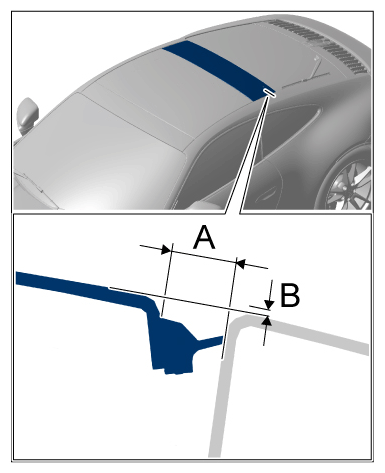

G14224047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension of panoramic roof assembly, rear
