Gap Dimensions For Roof

Location	Description	Type	Basic value	Tolerance

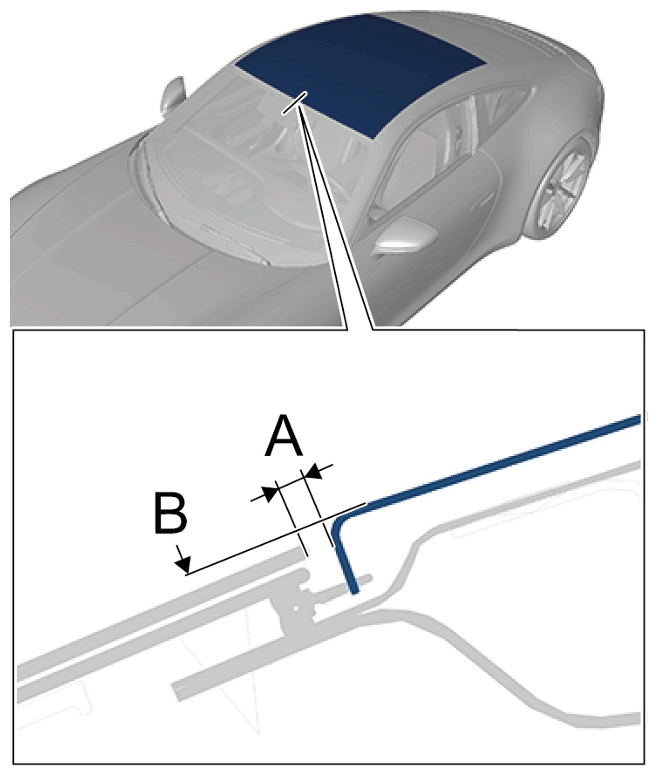

Roof to windscreen (F501)	Dimension A	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to windscreen (F502)	Dimension B	Offset	1.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

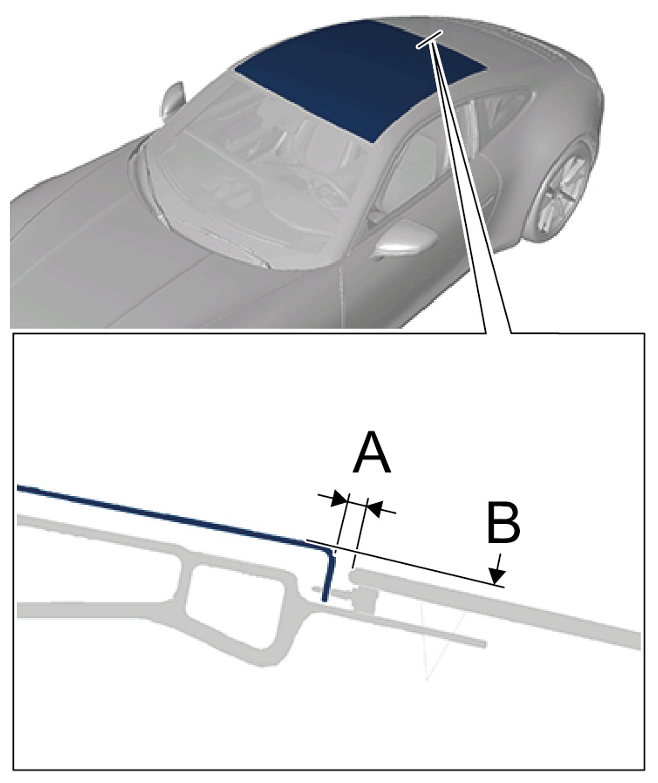

Roof to rear window (H501)	Dimension A	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to rear window (H502)	Dimension B	Offset	3.1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_11)	Dimension A	Gap dimension	5.8 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_12)	Dimension B	Offset	- 0.2 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_21)	Dimension A	Gap dimension	4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_22)	Dimension B	Offset	-1 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_31)	Dimension A	Gap dimension	5.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_32)	Dimension B	Offset	0.2 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
