Front Wing

Location	Description	Type	Basic value	Tolerance
Front wing to A-pillar (S10)	Dimension A	Gap dimension	7.5 mm	+/- 0.8 mm

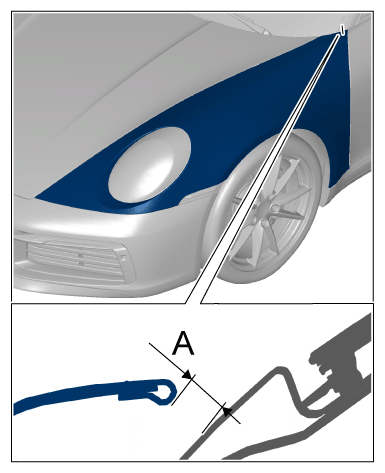

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to A-pillar
Front wing to bottom side panel (S11 0)	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm

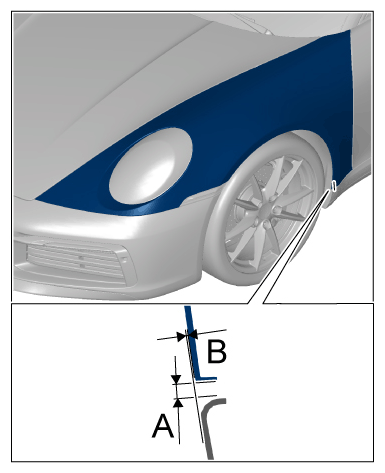

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side panel
Front wing to bottom side panel (S11 0)	Dimension B	Offset	0 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side panel
Front wing to bottom side panel (S11 1)	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm

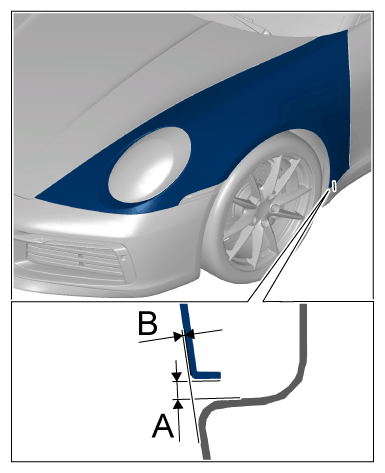

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side panel
Front wing to bottom side panel (S11 1)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side panel
Front wing to top of door (S20 1)	Dimension A	Gap dimension	3.3 mm	+/- 0.5 mm

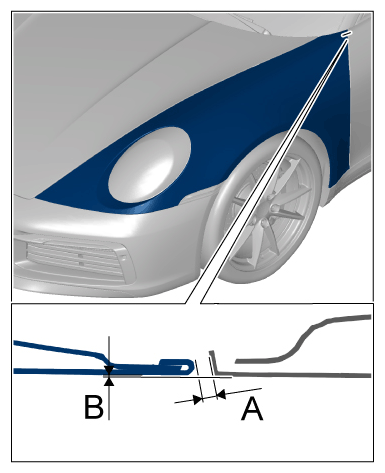

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to top of door
Front wing to top of door (S20 1)	Dimension B	Offset	0 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to top of door
Front wing to side marking (S13 1)	Dimension A	Gap dimension	0.5 mm	+/- 0.5 mm

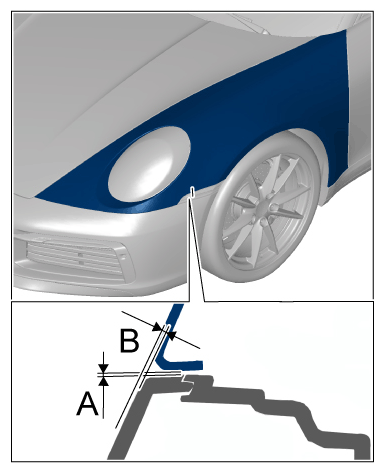

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to side markirg
Front wing to side marking (S13 1)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to side markirg
Front wing to rear side marking (S13 2)	Dimension A	Gap dimension	0.5 mm	+/- 0.5 mm

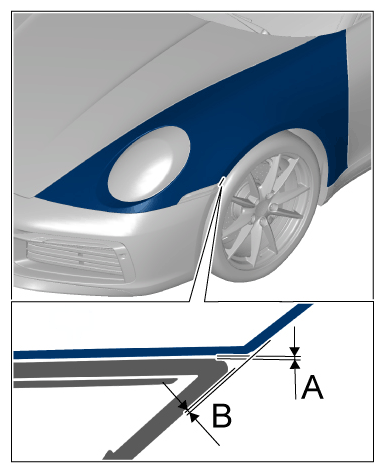

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to rear side marking
Front wing to rear side marking (S13 2)	Dimension B	Offset	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to rear side marking
