Front Lid

Location	Description	Type	Basic value	Tolerance
Front lid to wing front (F14 1)	dimension A	gap dimension	3 mm	+/- 0.5 mm

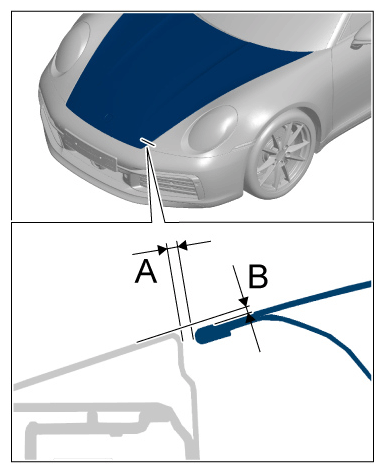

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid a	nd wing front
Front lid to wing front (F14 1)	dimension B	offset	- 0.9 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid a	nd wing front
Front lid to middle of wing (F14 2)	dimension A	gap dimension	3 mm	+/- 0.5 mm

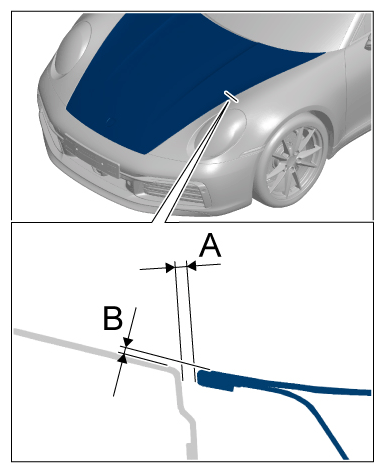

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid a	nd middle of win	g
Front lid to middle of wing (F14 2)	dimension B	offset	1.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and middle of wing
Front lid to rear of wing (F14 3)	dimension A	gap dimension	3 mm	+/- 0.5 mm

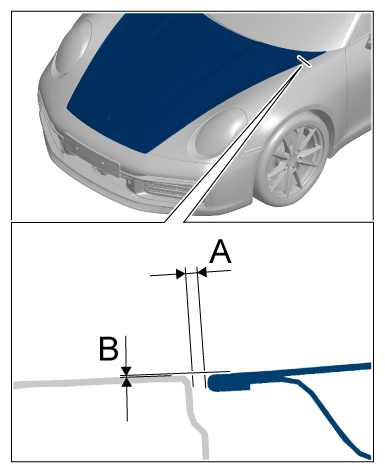

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to rear of wing
Front lid to rear of wing (F14 3)	dimension B	offset	- 0.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to rear of wing
Front lid to front apron (F40)	dimension A	gap dimension	3 mm	+/- 0.7 mm

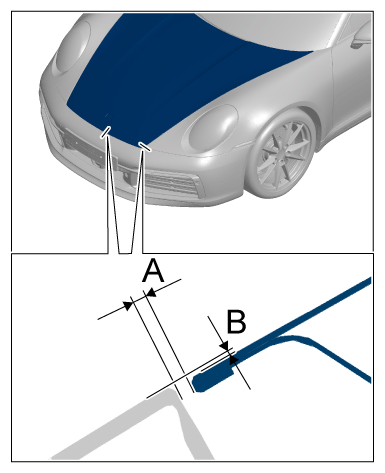

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and front apron
Front lid to front apron (F40)	dimension B	offset	- 1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and front apron
