Front Door

Location	Description	Type	Basic value	Tolerance
Front door to wing	Dimension A	Gap dimension	3.3 mm	+/- 0.5 mm

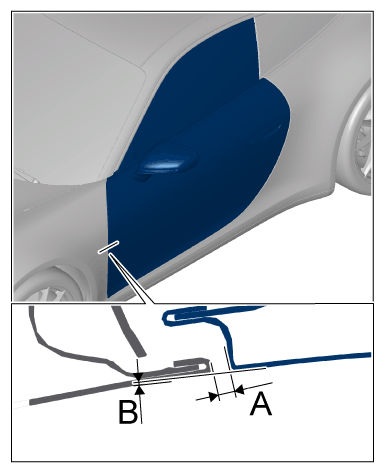

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to wing
Front door to wing	Dimension B	Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to wing
Front side window to rear side window	Dimension A (Coupe)	Gap dimension	7 mm	+/- 0.7 mm

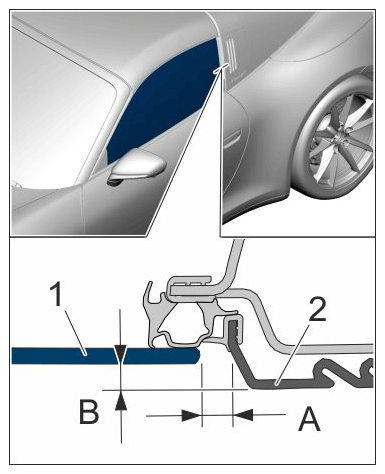

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rearside window
Front side window to rear side window	Dimension B (Cot	ipe) Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rear side window
Front side window to B-pillar trim	Dimension A (Targa)	Gap dimension	12.8 mm	+ 1.3 mm - 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window
Front side window to B-pillar trim	Dimension B (Targa)	Distance	11.0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window
Front door to lower side panel	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm

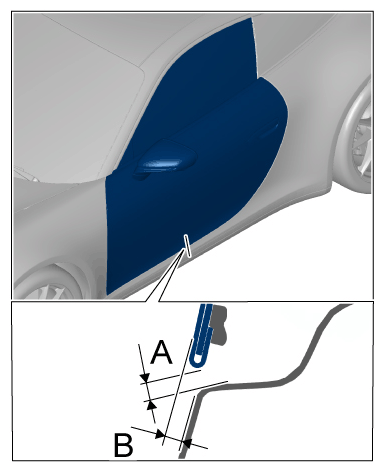

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to lower side panel
Front door to corner side panel	Dimension A	Gap dimension	3.2 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to corner side panel
Front door to corner side panel	Dimension B	Offset	1.2 mm	+/- 0.8 mm

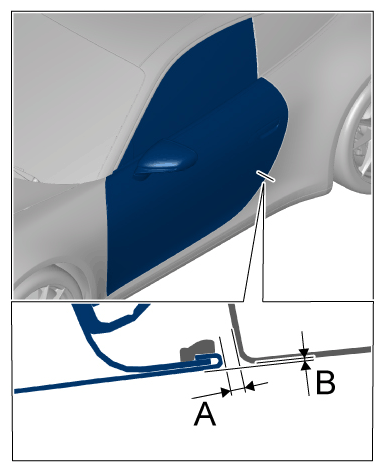

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to corner side panel
Front door to rear side panel	Dimension A	Gap dimension	3 mm	+/- 0.7 mm

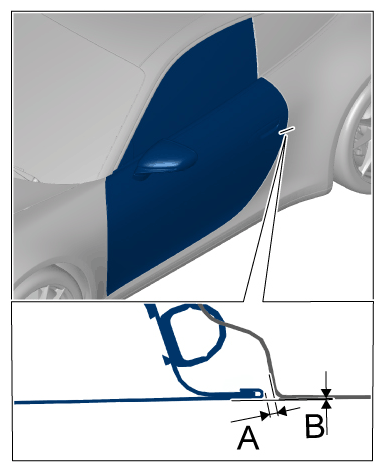

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to rear side panel
Front door to rear side panel	Dimension B	Offset	0 mm	+/- 0.5 mm

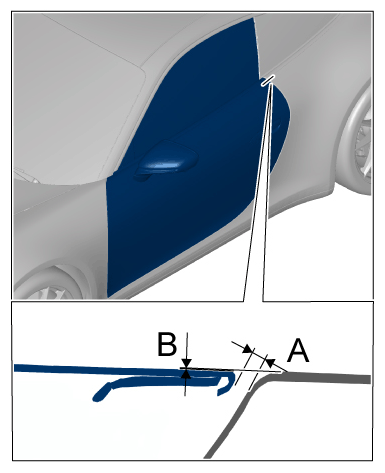

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to rear side rpanel
Front door to upper side panel	Dimension A	Gap dimension	3 mm	+/- 0.7 mm

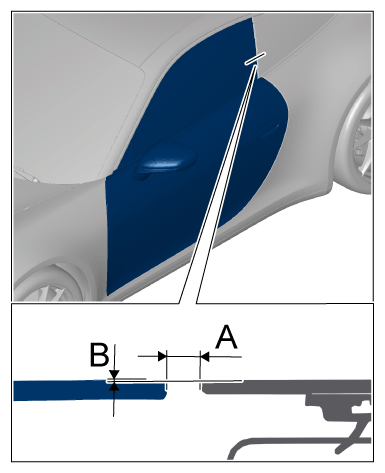

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to upper side panel
Front door to upper side panel	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to upper side panel
Front door to A-pillar	Dimension A	Gap dimension	3 mm	+/- 0.7 mm

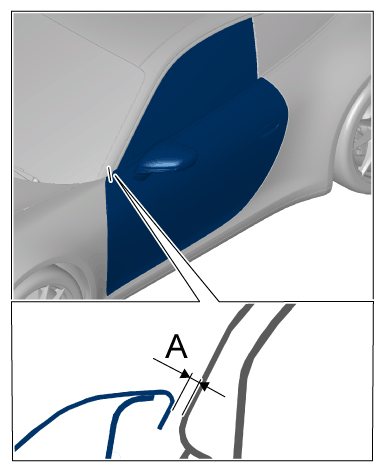

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to A-pillar
