Front Apron

Location	Description	Type	Basic value	Tolerance

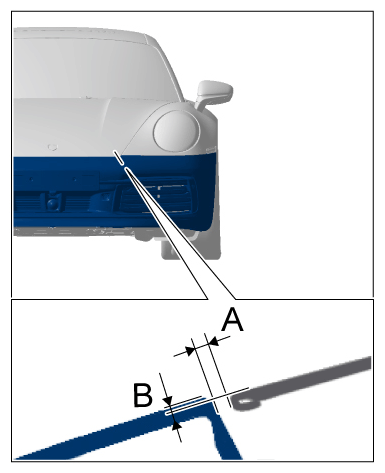

Front lid to front apron (F40-1)	Dimension A	Gap dimension	03 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron
Front lid to front apron (F40-1)	Dimension B	Offset	-1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron

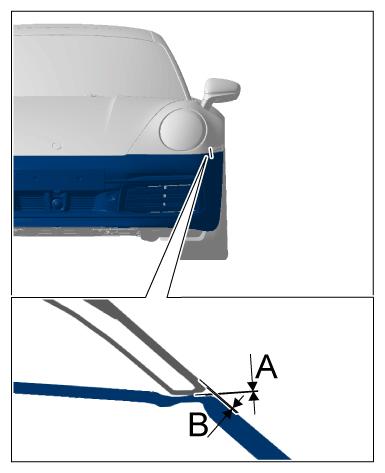

Front lid to front apron (F40-2)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron
Front lid to front apron (F40-2)	Dimension B	Offset	-1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron

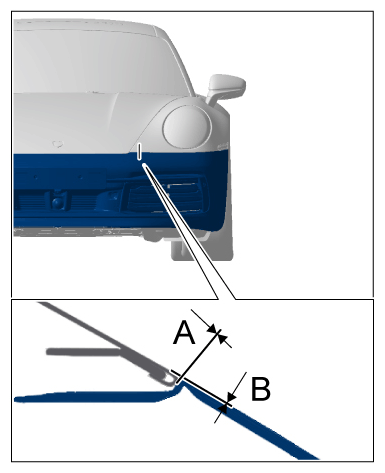

Wing to front apron (F30-10)	Dimension A	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wing to front apron (F30-10)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron

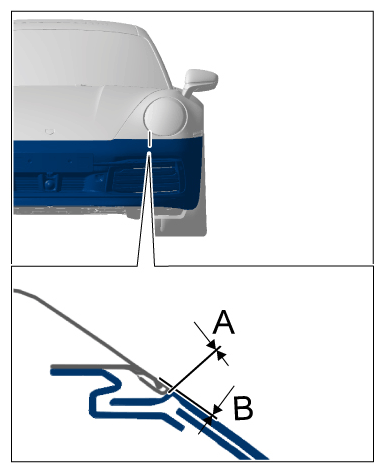

Wing to front apron (F30-20)	Dimension A	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front apron
Wing to front apron (F30-20)	Dimension B	Offset	0.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front apron

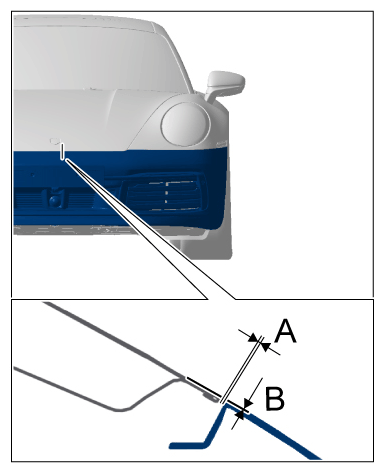

Wing to front apron (F30-30)	Dimension A	Gap dimension	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wing to front apron (F30-30)	Dimension B	Offset	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron

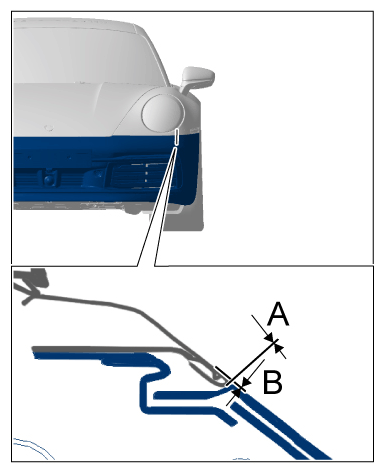

Wing to front apron (F30-40)	Dimension A	Gap dimension	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wing to front apron (F30-40)	Dimension B	Offset	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
