Convertible Top Compartment

Location Description Type Basic value Tolerance

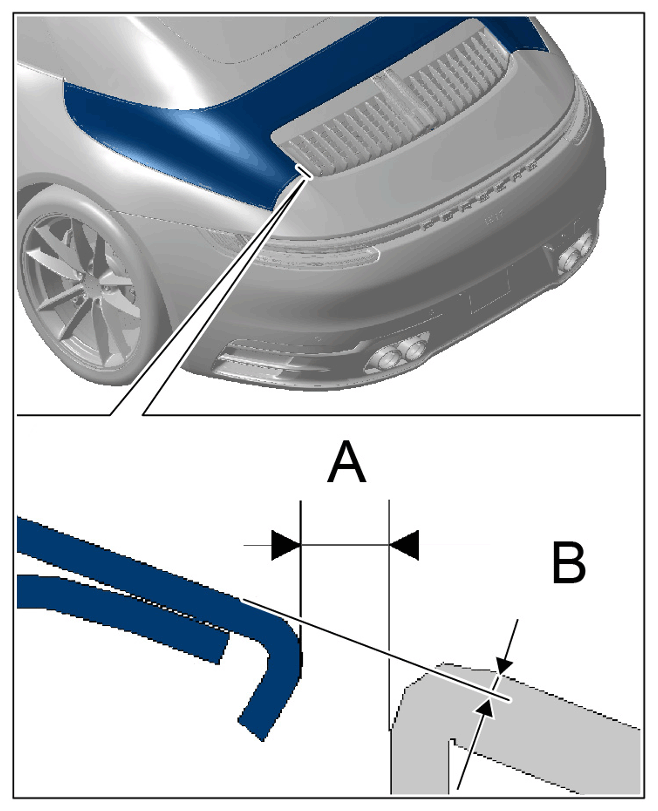

Convertible-top compartment lid to spoiler (H70_1) Dimension A Gap dimension 3.5 mm +/- 0.7 mm
G14224131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to spoiler
Side panel to rear spoiler (H70_1) Dimension B Offset - 0.7 mm + 0.7 mm -0.5 Nm
G14224132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to spoiler
Convertible-top compartment lid to spoiler (H70_2) Dimension A Gap dimension 3.5 mm +/- 0.7 mm
G14224133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to spoiler

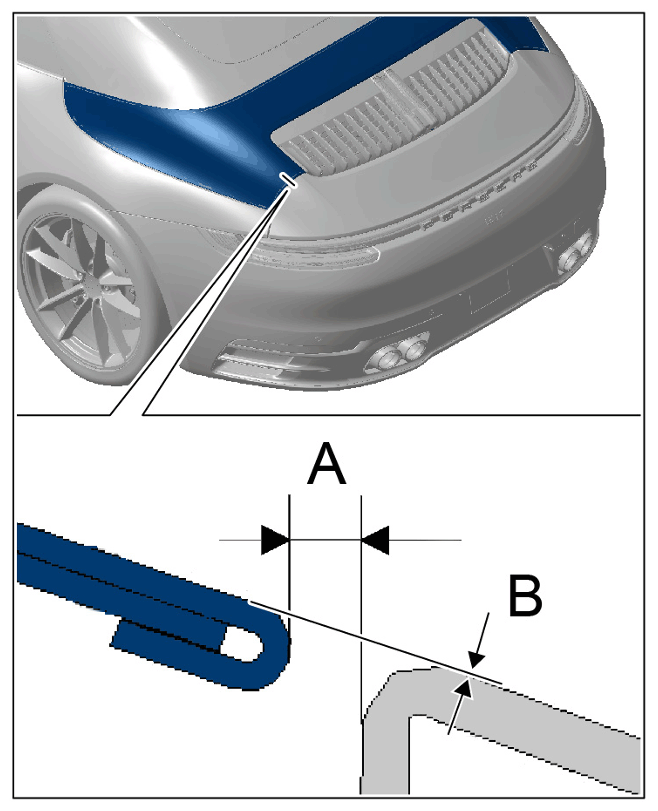

Convertible-top compartment lid to spoiler (H70_2) Dimension B Offset 0 mm + 0.7 mm -0.5 Nm
G14224134Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to spoiler
Convertible-top compartment lid to side panel (D26_1) Dimension A Gap dimension 3.5 mm +/- 0.7 mm
G14224135Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to side panel

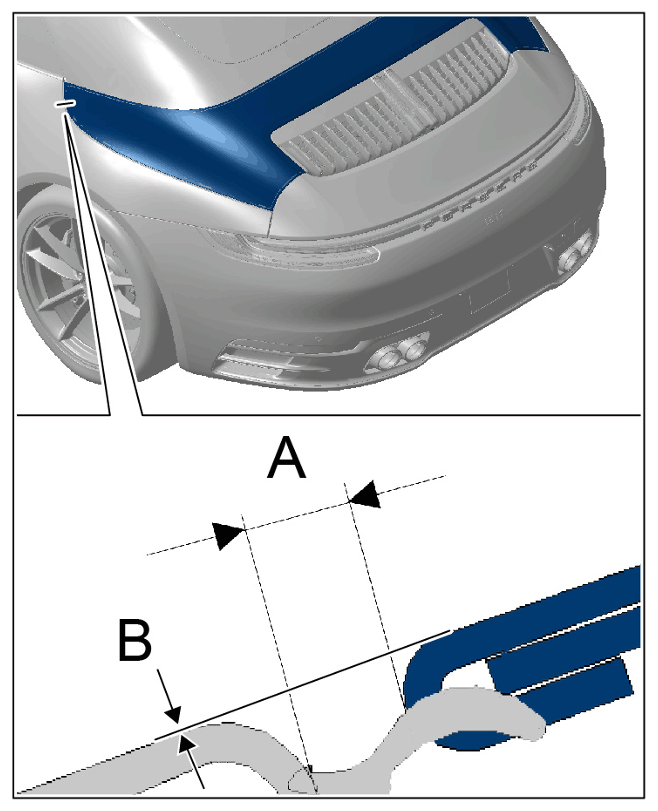

Convertible-top compartment lid to side panel (D26_1) Dimension B Offset 0 mm + 0.5 mm -0.7 Nm
G14224136Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to side panel

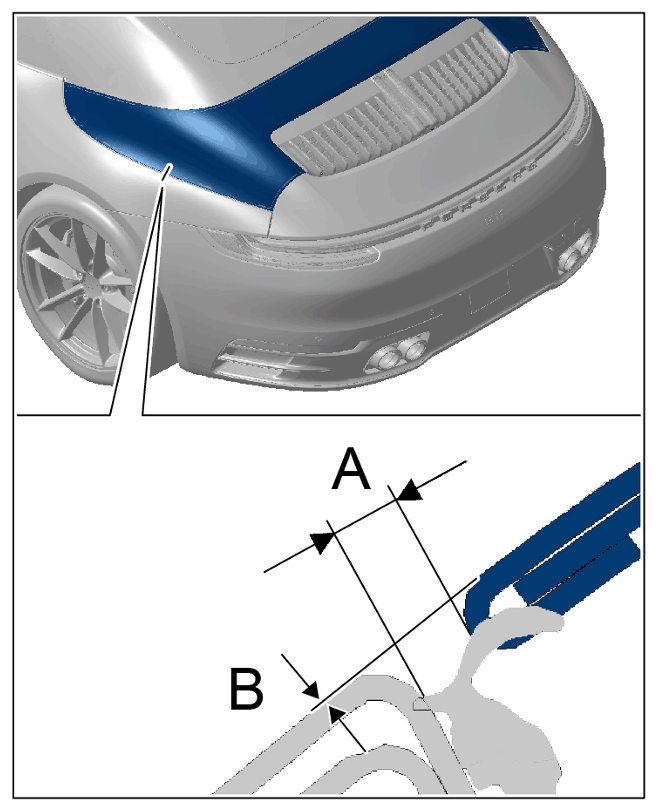

Convertible-top compartment lid to side panel (D26_2) Dimension A Gap dimension 3.5 mm +/- 0.7 mm
G14224137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26_2) Dimension B Offset 0 mm + 0.5 mm -0.7 Nm
G14224138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid
Convertible-top compartment lid to side panel (D26_3) Dimension A Gap dimension 3.5 mm +/- 0.7 mm
G14224139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26_3) Dimension B Offset 0 mm + 0.5 mm -0.7 Nm
G14224140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to side panel

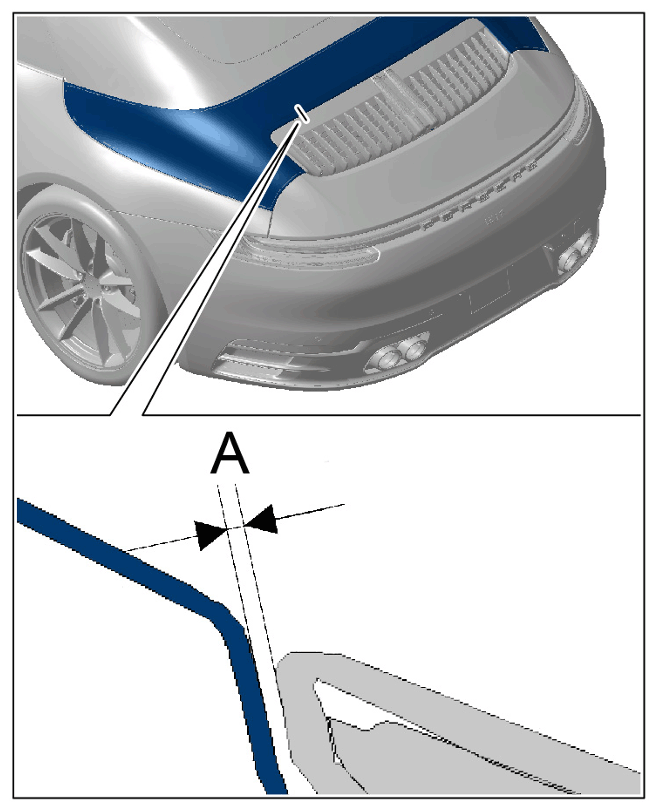

Convertible-top compartment lid to air intake grille (HP400_0) Dimension A Gap dimension 1 mm +/- 0.5 mm
G14224141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to air intake grille

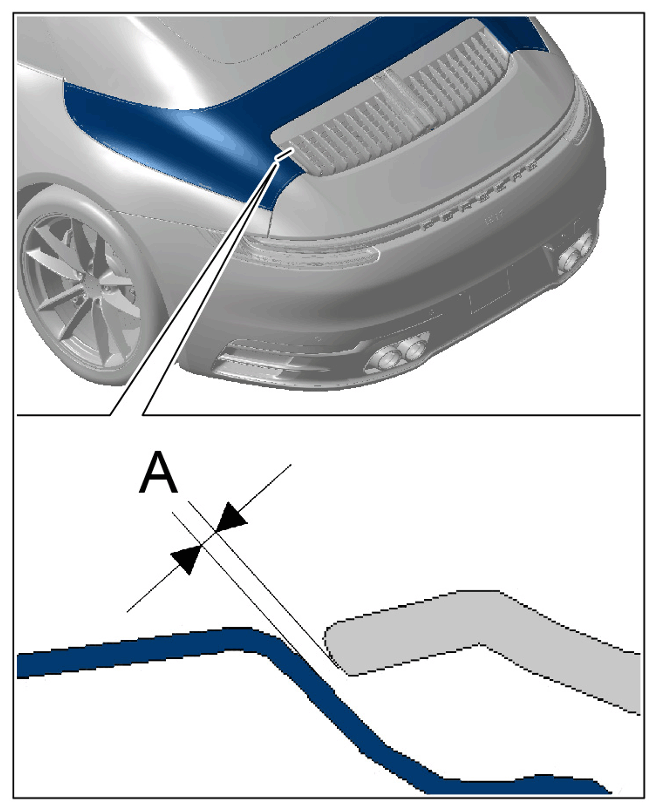

Convertible-top compartment lid to air intake grille (HP400_1) Dimension A Gap dimension 1 mm +/- 0.5 mm
G14224142Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to air intake grille
Rear window to door window (S23d) Dimension A Gap dimension 9 mm +/- 0.8 mm
G14224143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window to door window

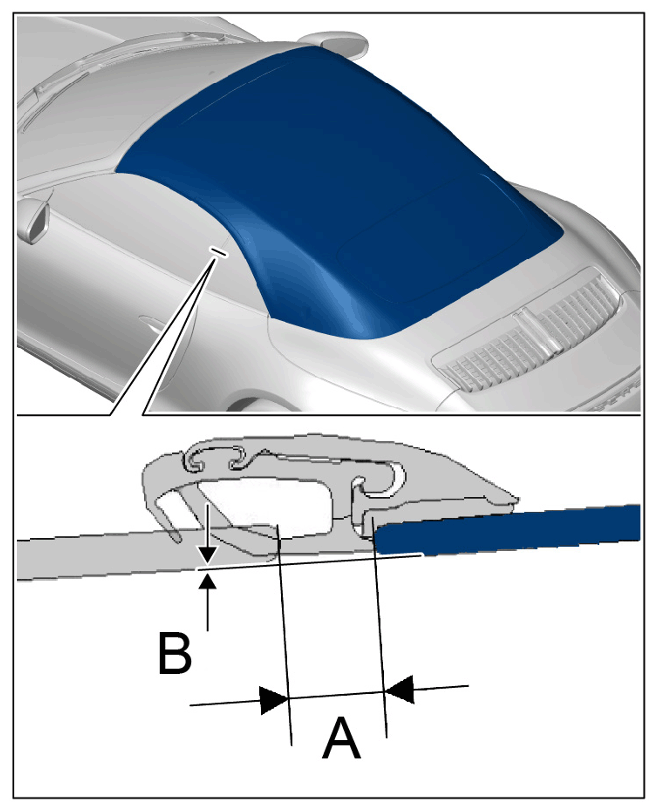

Rear window to door window (S23d) Dimension B Offset 0 mm - 2 mm
G14224144Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window to door window

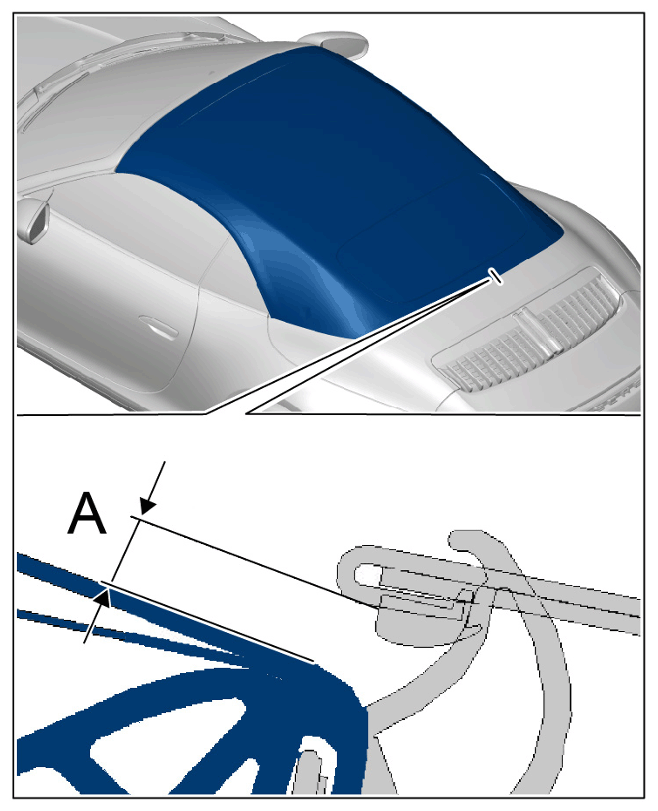

Convertible-top compartment lid to convertible top (D17_0) Dimension A Gap dimension 4.6 mm +/- 1.7 mm
G14224145Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to convertible top

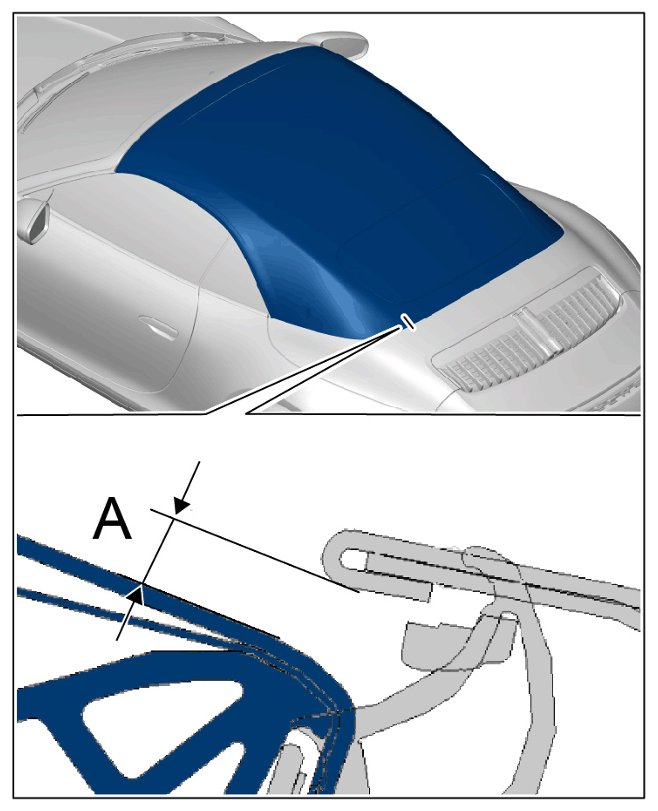

Convertible-top compartment lid to convertible top (D17_1) Dimension A Gap dimension 4.6 mm +/- 1.7 mm
G14224146Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to convertible top

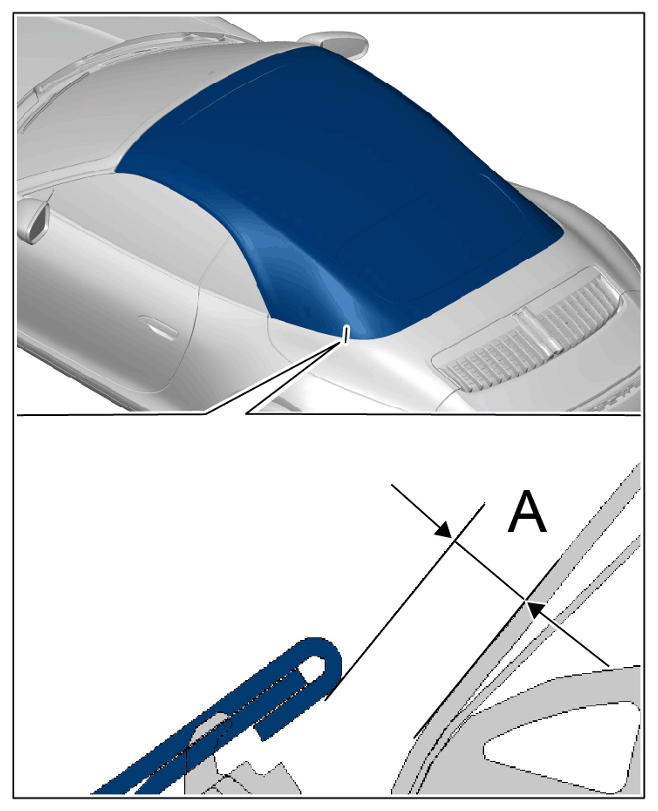

Convertible-top compartment lid to convertible top (D17_2) Dimension A Gap dimension 5.5 mm +/- 2 mm
G14224147Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to convertible top

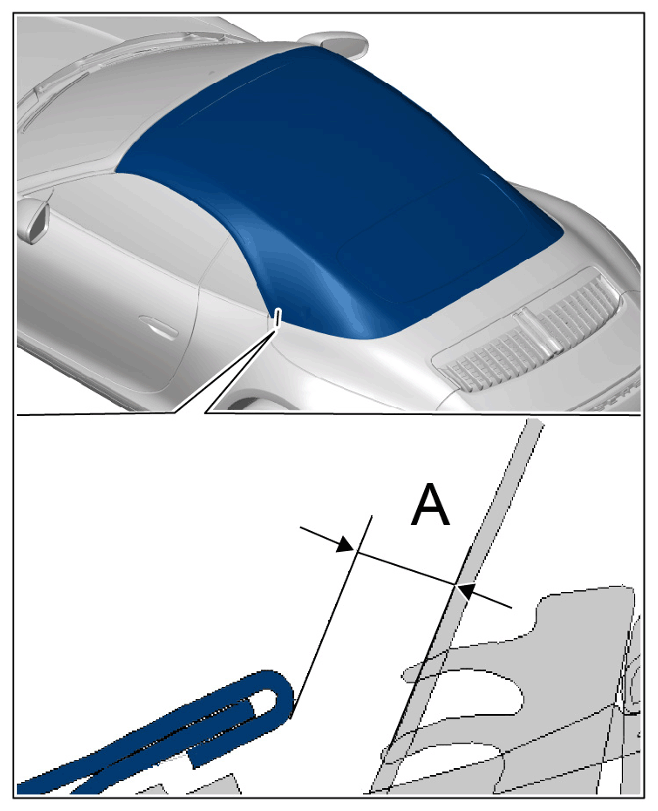

Convertible-top compartment lid to convertible top (D17_3) Dimension A Gap dimension 7 mm +/- 2 mm
G14224148Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Convertible-top compartment lid to convertible top

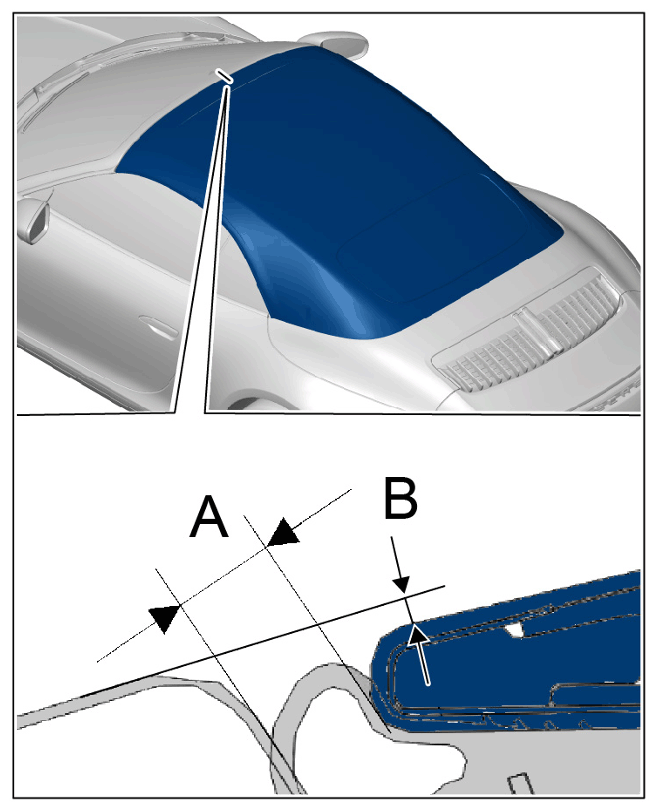

Cowl panel frame to convertible top (D10_1) Dimension A Gap dimension 6.5 mm +/- 1 mm
G14224149Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel frame to convertible top
Cowl panel frame to convertible top (D10_1) Dimension B Offset 1.5 mm +/- 1.5 mm
G14224150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel frame to convertible top
Cowl panel frame to convertible top (D10_2) Dimension A Gap dimension 6.5 mm +/- 1 mm
G14224151Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel frame to convertible top

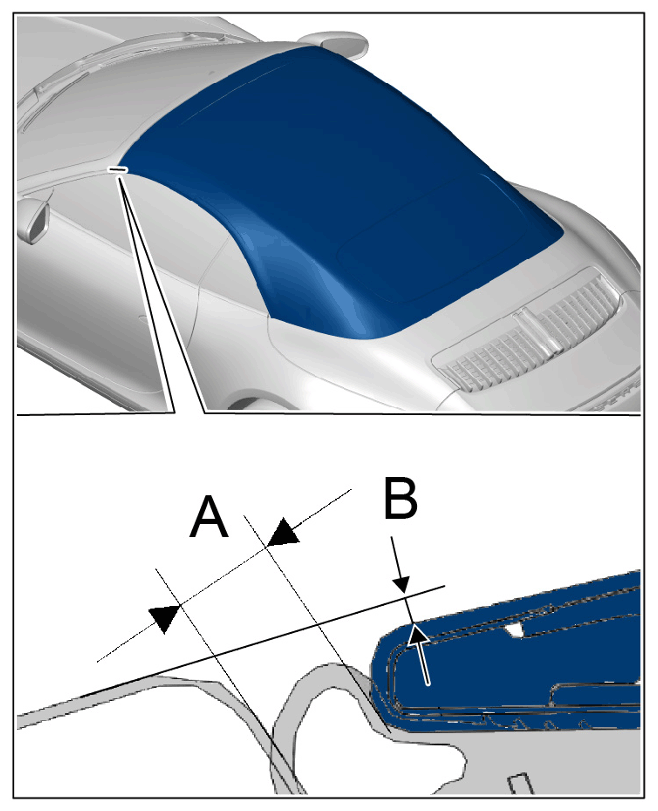

Cowl panel frame to convertible top (D10_2) Dimension B Offset 1.5 mm +/- 1.5 mm
G14224152Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel frame to convertible top
