Air Intake Grille
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

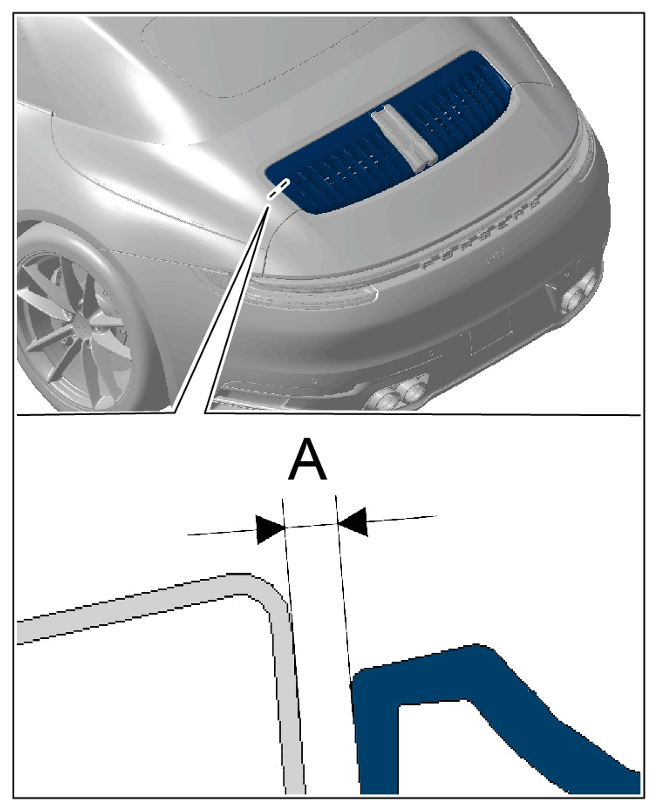

| Side panel to air intake grille (H42a) | Dimension A | Gap dimension | 3 mm | +/- 0.6 mm |
|
Side panel to air intake grille |
||||

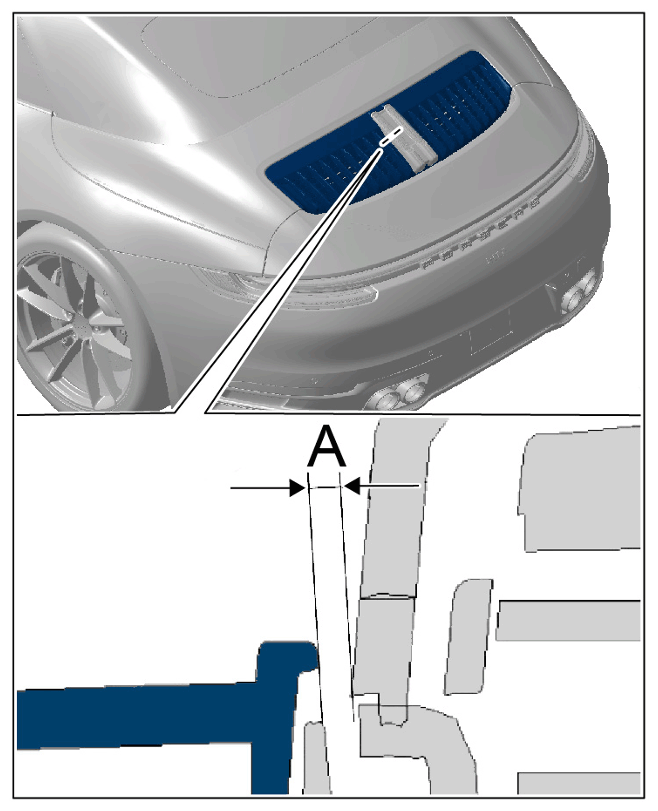

| Air intake grille to brake light (HP402_0) | Dimension A | Gap dimension | 1 mm | +/- 0.5 mm |
|
Air intake grille to brake light |
||||

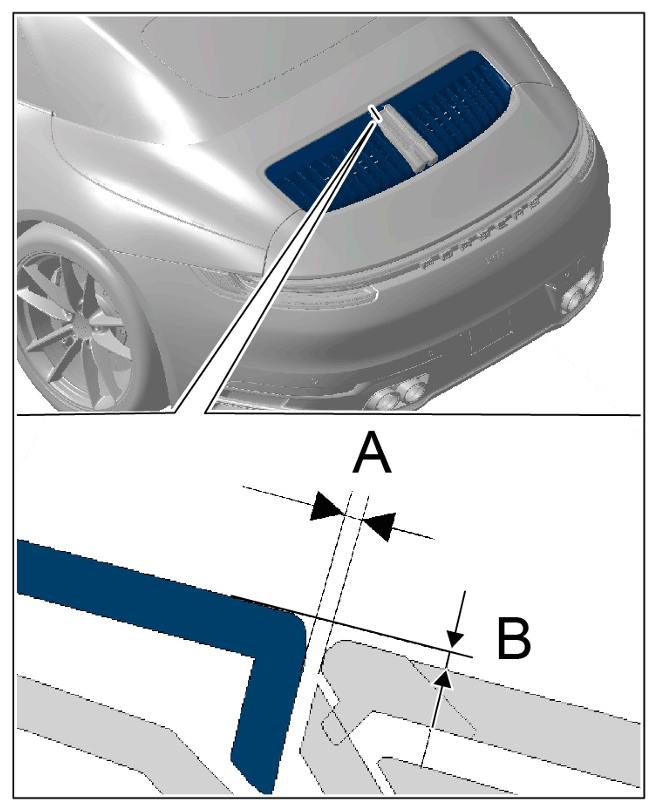

| Air intake grille to brake light (HP402_0) | Dimension B | Offset | 0.5 mm | +/- 0.5 mm |
|
Air intake grille to brake light |
||||
| Air intake grille to brake light (HP402_2) | Dimension A | Gap dimension | 1.6 mm | +/- 0.5 mm |
|
Air intake grille to brake light |
