WM, 5X00IN41 Gap Dimension: Notes

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

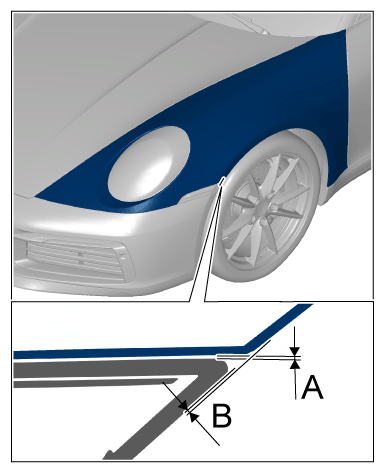

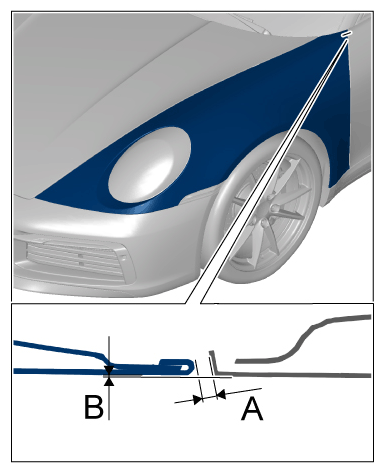

Front wing to A-pillar (S10)	Dimension A	Gap dimension	7.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to A-pillar

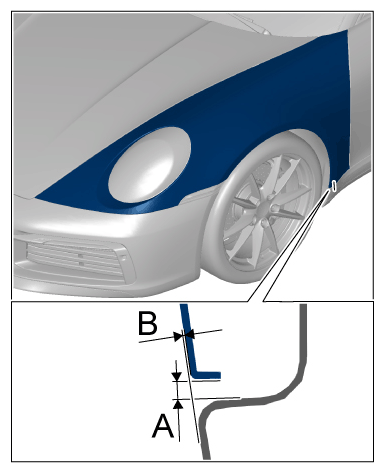

Front wing to bottom side panel (S11 0)	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side pane
Front wing to bottom side panel (S11 0)	Dimension B	Offset	0 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side pane
Front wing to bottom side panel (S11 1)	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side pane
Front wing to bottom side panel (S11 1)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to bottom side pane
Front wing to top of door (S20 1)	Dimension A	Gap dimension	3.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to top of door
Front wing to top of door (S20 1)	Dimension B	Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to top of door
Front wing to side marking (S13 1)	Dimension A	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to side marking
Front wing to side marking (S13 1)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to side marking
Front wing to rear side marking (S13 2)	Dimension A	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to rear side marking
Front wing to rear side marking (S13 2)	Dimension B	Offset	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front wing to rear side marking

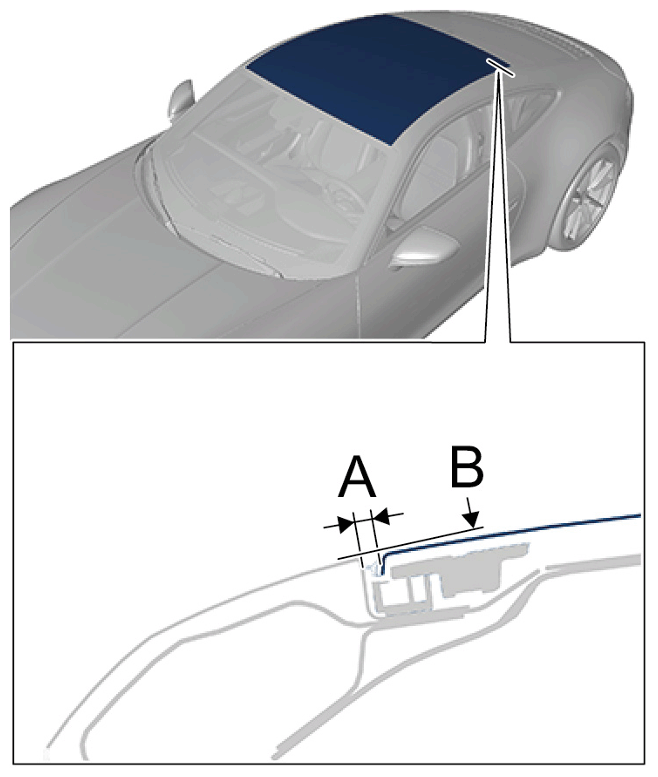

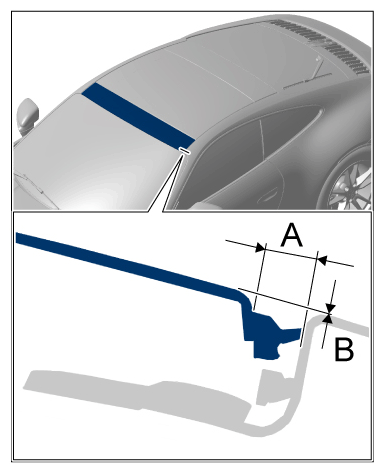

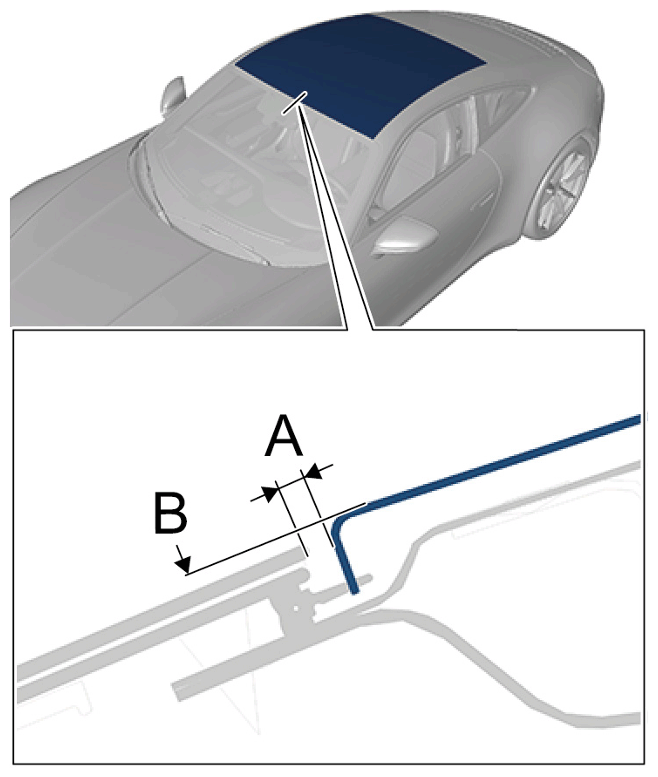

Roof to windscreen (F501)	Dimension A	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to windscreen (F502)	Dimension B	Offset	1.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

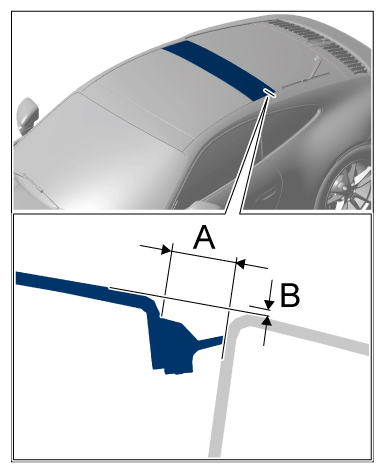

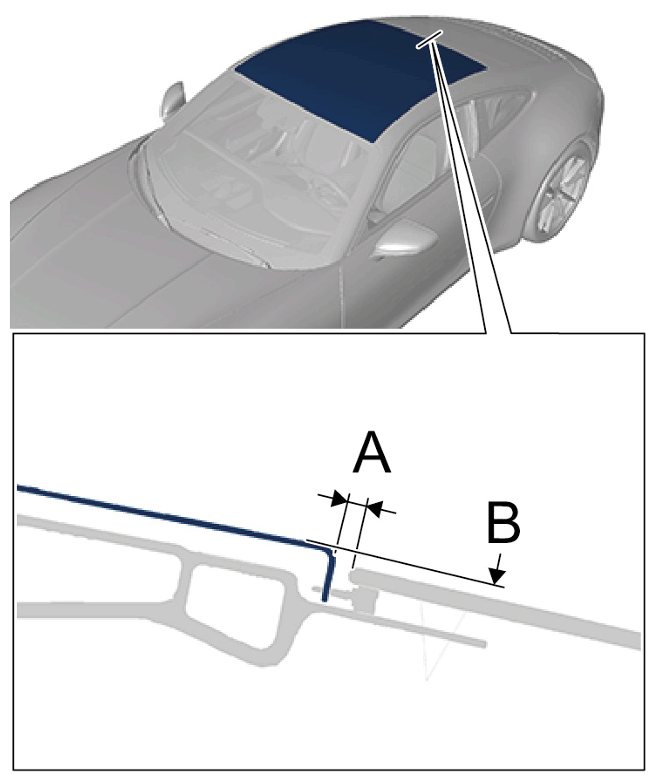

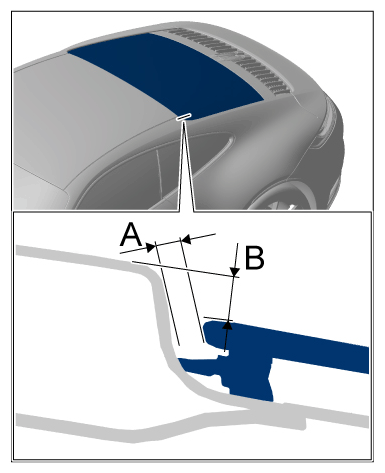

Roof to rear window (H501)	Dimension A	Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to rear window (H502)	Dimension B	Offset	3.1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_11)	Dimension A	Gap dimension	5.8 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_12)	Dimension B	Offset	- 0.2 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_21)	Dimension A	Gap dimension	4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to front side panel (D14_22)	Dimension B	Offset	-1 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_31)	Dimension A	Gap dimension	5.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Roof to centre side panel (D14_32)	Dimension B	Offset	0.2 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

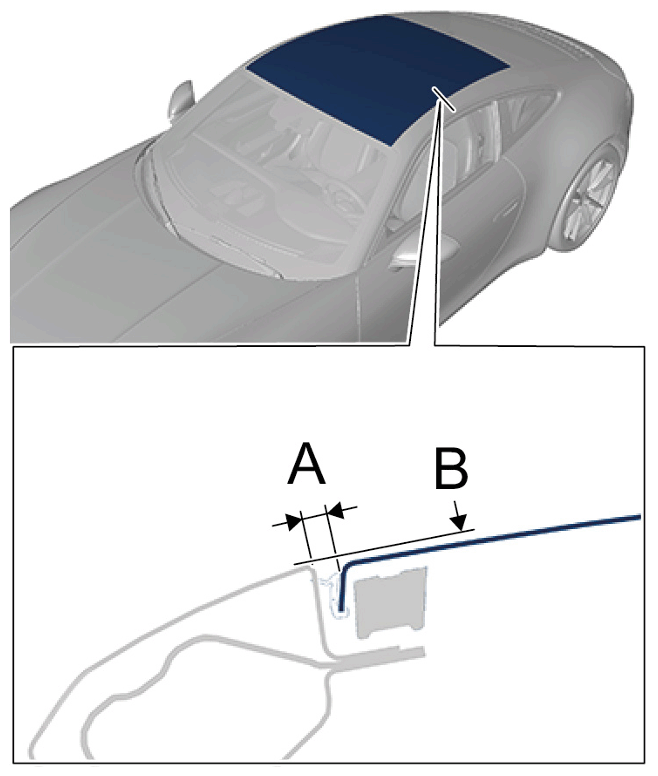

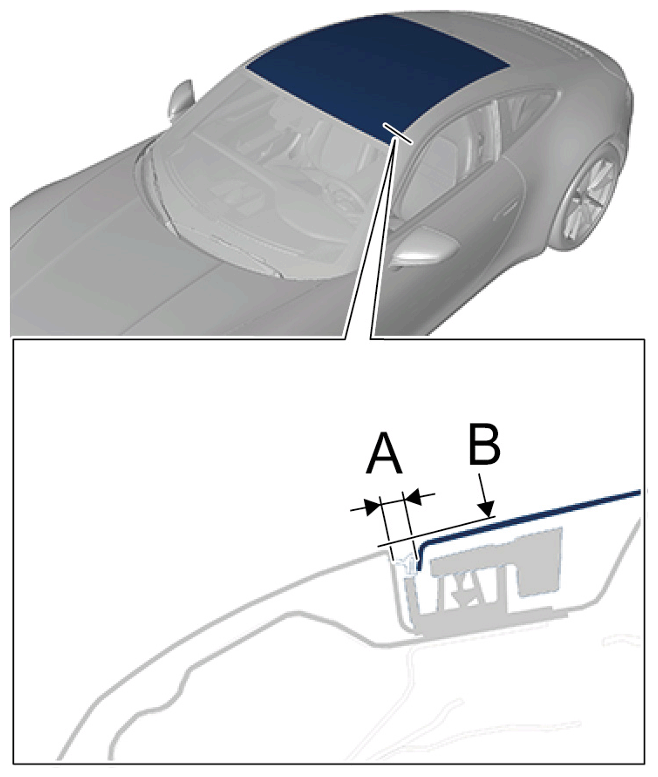

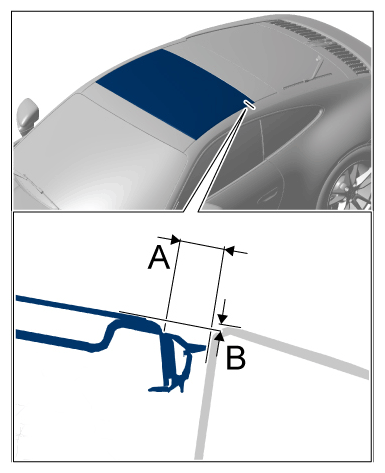

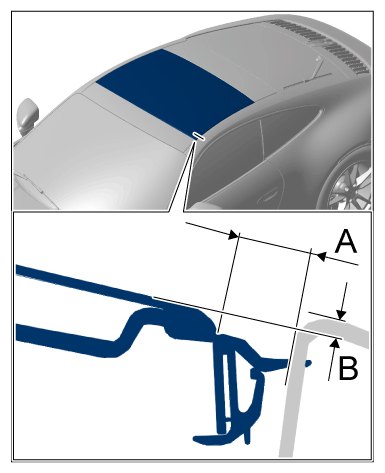

Panoramic roof assembly to side panel, front (D14a_1)	Dimension A	Gap dimension	5.9 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, front
Panoramic root assembly to side panel, tront (D14a_1)	Dimension b	unset	- 0.2 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, front (D14a 2)	Dimension A	Gap dimension	5.8 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, front (D14a 2)	Dimension B	Offset	-1 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, front
Panoramic roof assembly to side panel, centre (D14a_3)	Dimension A	Gap dimension	4.6 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a_3)	Dimension B	Offset	-1.6 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a_4)	Dimension A	Gap dimension	4.8 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, centre (D14a_4)	Dimension B	Offset	- 0.7 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, centre
Panoramic roof assembly to side panel, rear (D14a_5)	Dimension A	Gap dimension	4.5 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_5)	Dimension B	Offset	- 0.7 mm	-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_6)	Dimension A	Gap dimension	5.9 mm	+/- 1.0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, rear
Panoramic roof assembly to side panel, rear (D14a_6)	Dimension B	Offset	0.2 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of panoramic roof assembly, rear

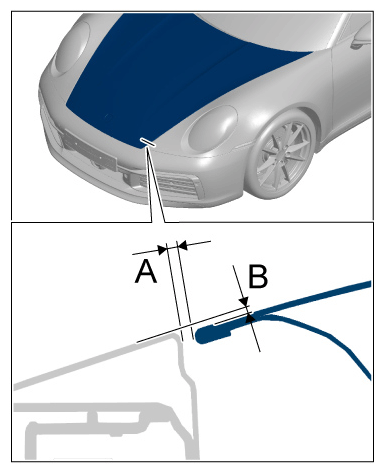

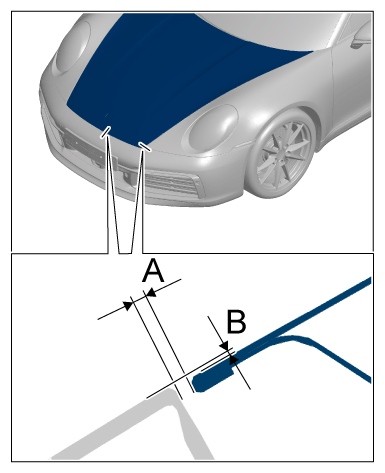

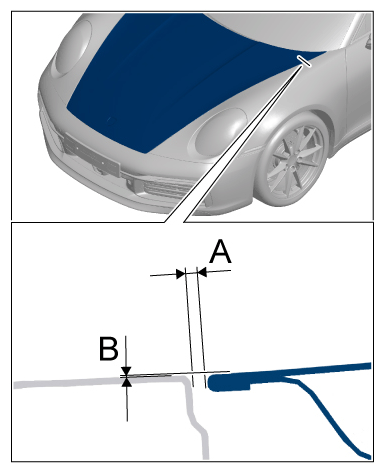

Front lid to wing front (F14 1)	dimension A	gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and wing fronl
Front lid to wing front (F14 1)	dimension B	offset	- 0.9 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and wing front
Front lid to middle of wing (F14 2)	dimension A	gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and middle of wing
Front lid to middle of wing (F14 2)	dimension B	offset	1.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and middle of wing
Front lid to rear of wing (F14 3)	dimension A	gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to rear of wing
Front lid to rear of wing (F14 3)	dimension B	offset	- 0.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to rear of wing

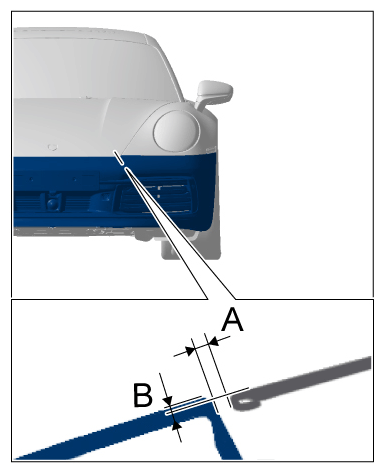

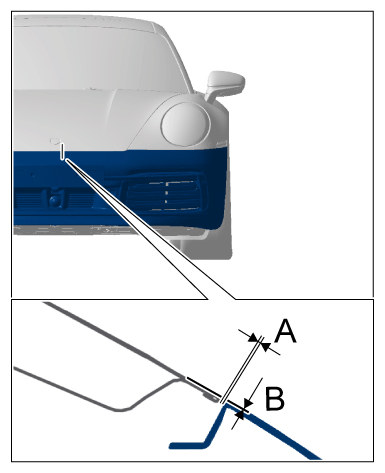

Front lid to front apron (F40)	dimension A	gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and front apron
Front lid to front apron (F40)	dimension B	offset	-1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between front lid and front apron

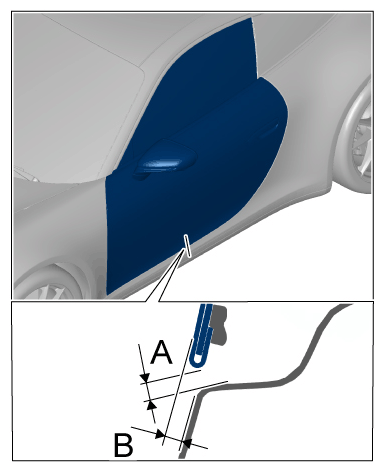

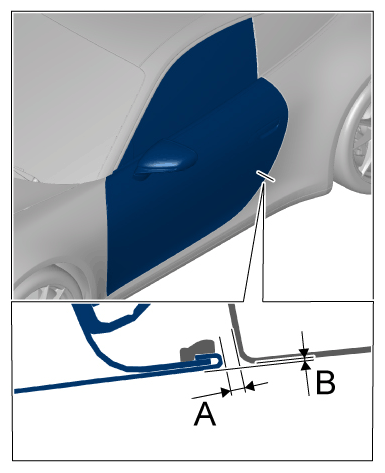

Front door to wing	Dimension A	Gap dimension	3.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to wing
Front door to wing	Dimension B	Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to wing

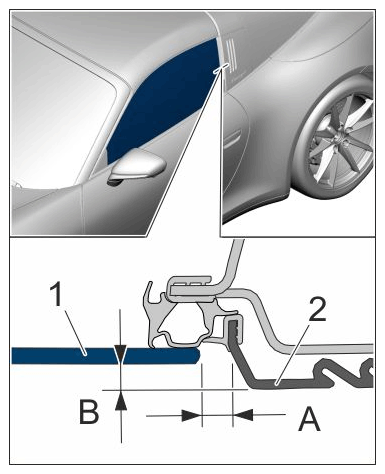

Front side window to rear side window	Dimension A (Coupe)	Gap dimension	7 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rear side window
Front side window to rear side window	Dimension B (Coupe)	Offset	0 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front side window to rear side window
Front side window to B-pillar trim	Dimension A (Targa)	Gap dimension	12.8 mm	+ 1.3 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window
Front side window to B-pillar trim	Dimension B (Targa)	Distance	11.0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for side window

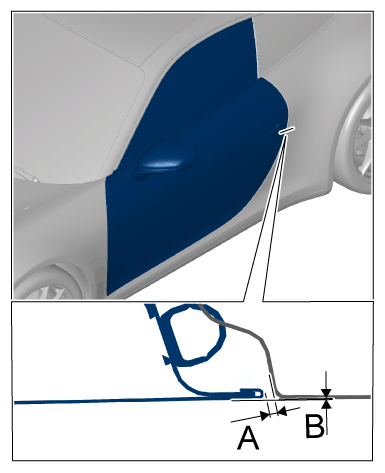

Front door to lower side panel	Dimension A	Gap dimension	3.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to lower side panel
Front door to corner side panel	Dimension A	Gap dimension	3.2 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to corner side panel
Front door to corner side panel	Dimension B	Offset	1.2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to corner side panel
Front door to rear side panel	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to rear side panel
Front door to rear side panel	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to rear side panel

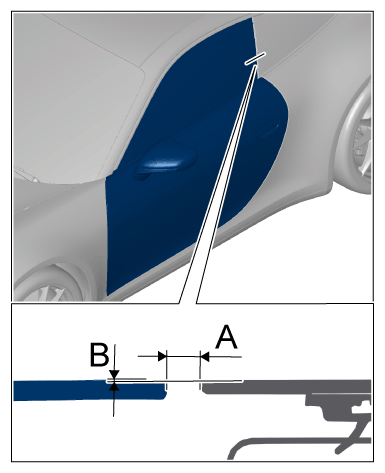

Front door to upper side panel	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to upper side panel
Front door to upper side panel	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to upper side panel

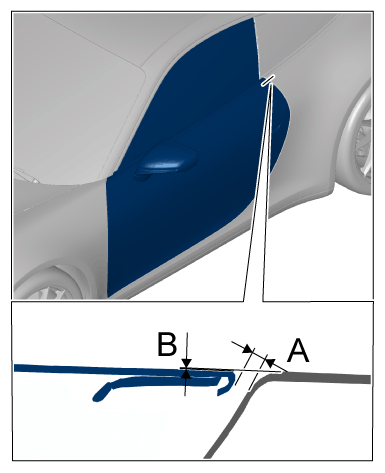

Front door to A-pillar	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for front door to A-pillar

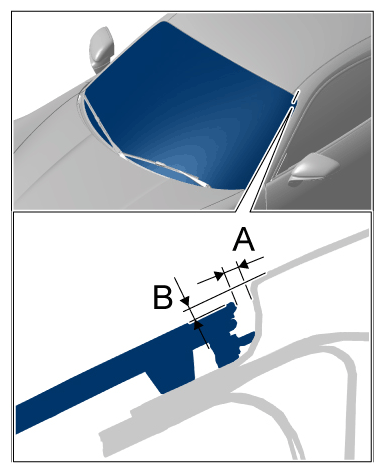

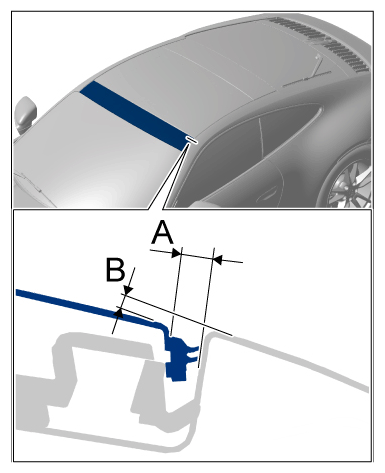

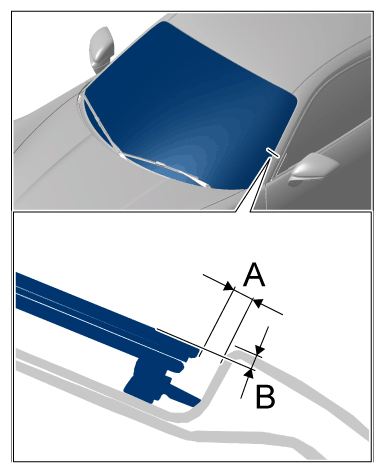

Windscreen to side panel, top (F51_0)	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of windscreen
Windscreen to side panel, top (F51_0)	Dimension B	Offset	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of windscreen
Wndscreen to side panel, centre (F51_1)	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of windscreen, centre
Wndscreen to side panel, centre (F51_1)	Dimension B	Offset	- 2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of windscreen, centre

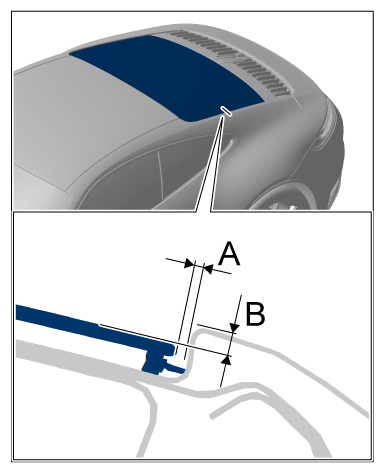

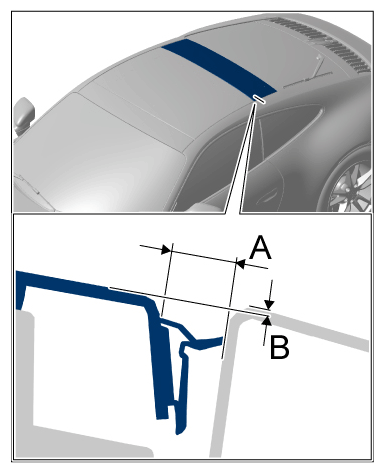

Rear window to side panel, top (H51_0)	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, top
Rear window to side panel, top (H51_0)	Dimension B	Offset	- 4.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, top
Rear window to side panel, centre (H51_1)	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, centre
Rear window to side panel, centre (H51_1)	Dimension B	Offset	- 6 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, centre

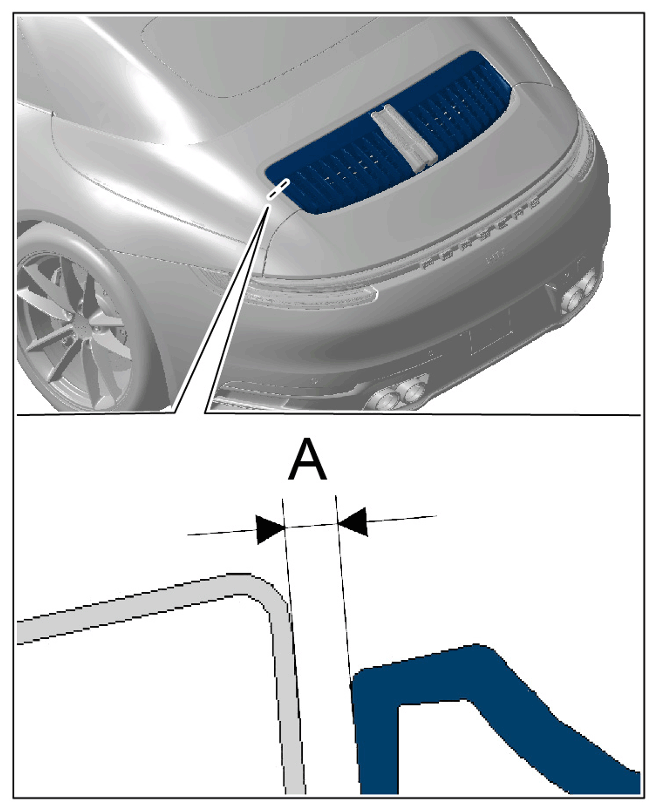

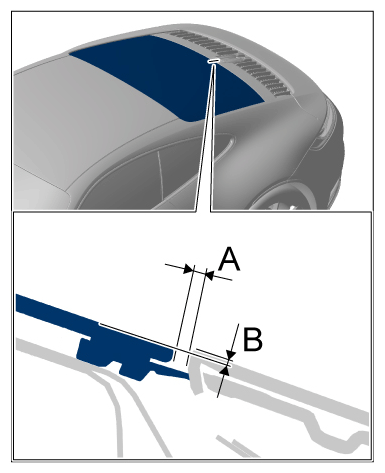

Rear window to air intake grille	Dimension A	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, bottom
Rear window to air intake grille	Dimension B	Offset	-1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window, bottom

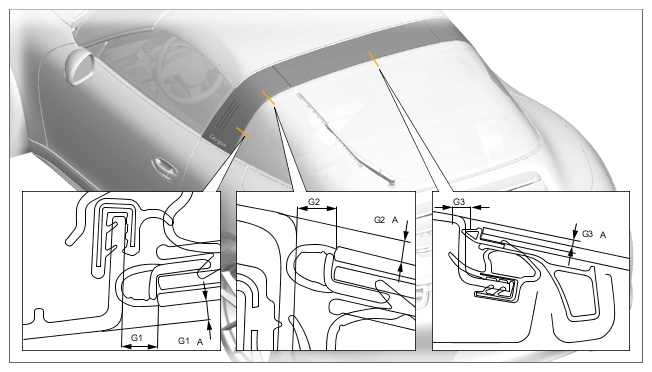

Targa bar to glass dome (G1)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Targa bar to glass dome (G2)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Targa bar to glass dome (G3)		Gap dimension	6.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G1A)	Offset must be recessed	Gap dimension	3.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G2A)	Offset must be recessed	Gap dimension	3.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome
Offset of Targa bar with respect to glass dome (G3A)	Offset must be recessed	Gap dimension	3.3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to glass dome

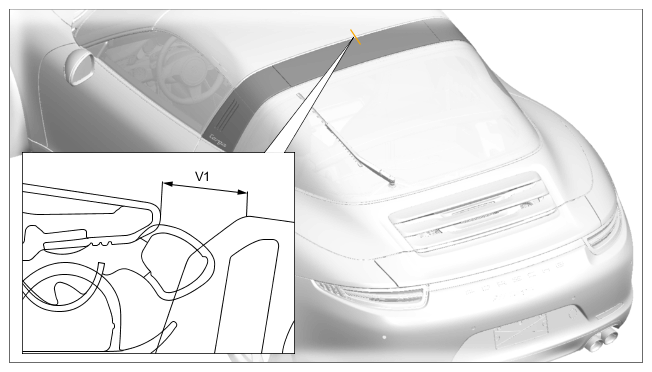

Targa bar to convertible top (V1)		Gap dimension	7 mm	+/- 1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Targa bar to convertible top
Trim panel on sides of Targa bar to trim panel flap (B1)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar
Trim panel flap to centre trim panel on Targa bar (B2)		Gap dimension	3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar
Offset of centre trim panel on Targa bar to trim panel flap (BA)	Offset must be recessed	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension: Trim panels on Targa bar

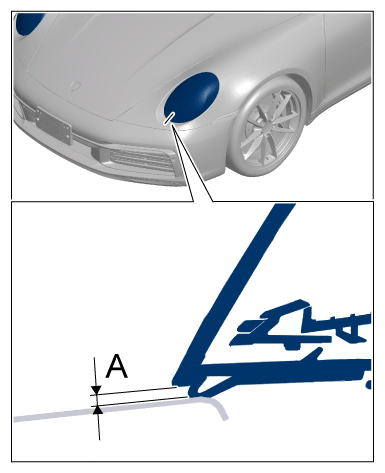

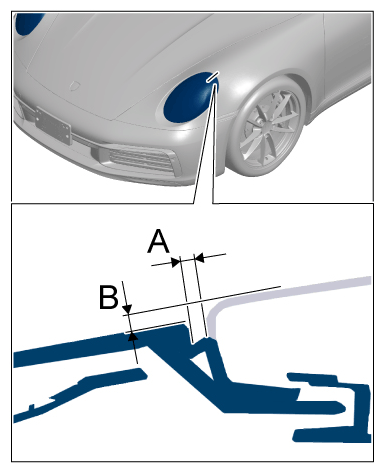

Main headlight to wing (F13 0)	dimension A	gap dimension	2.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between top of main headlights
Main headlight to wing (F13 0)	dimension B	offset	- 2.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between top of main headlights

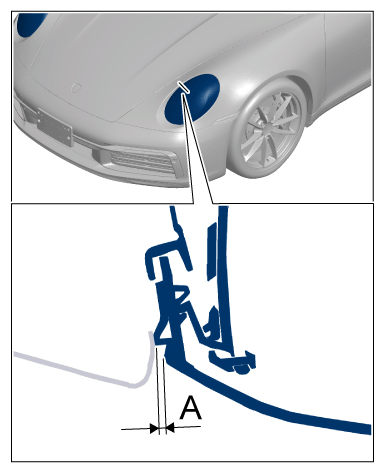

Main headlight to wing (F13 1)	dimension A	gap dimension	2.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between outside of main headlights

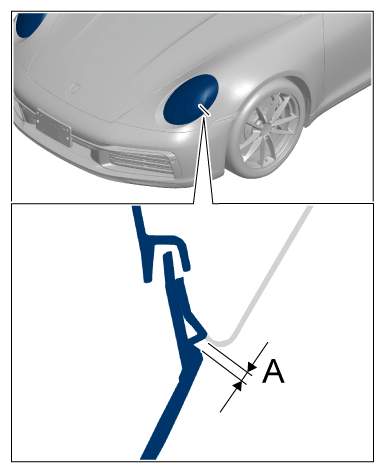

Main headlight to wing (F13 2)	dimension A	gap dimension	2.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between bottom of main headlights
Main headlight to wing (F13 3)	dimension A	gap dimension	2.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between inside of main headlights

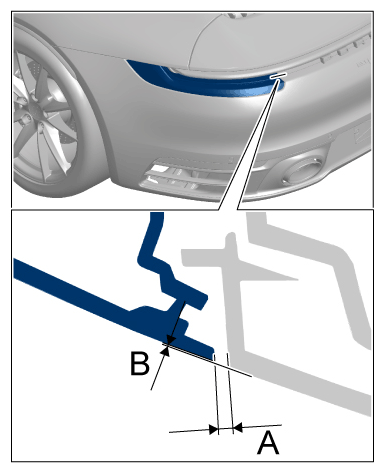

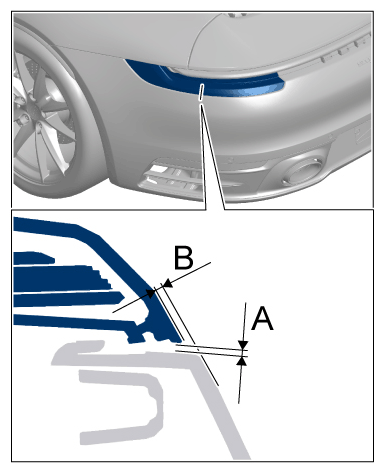

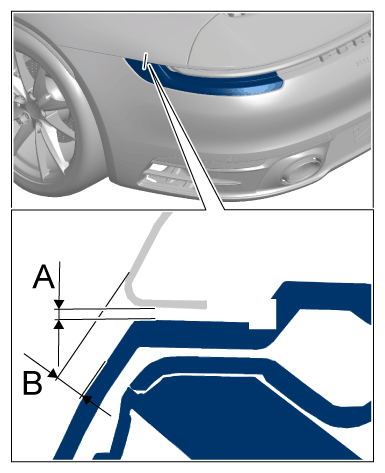

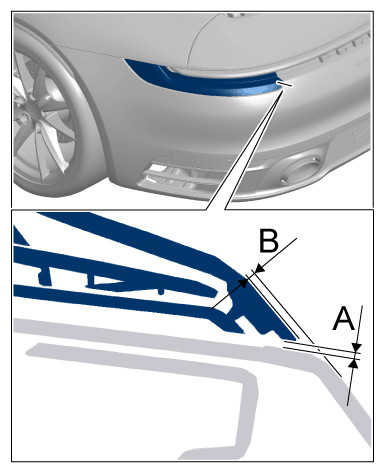

Tail light to side panel (H11)	dimension A	gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and side panel
Tail light to side panel (H11)	dimension B	offset	2.5 mm	+/- 1 mm

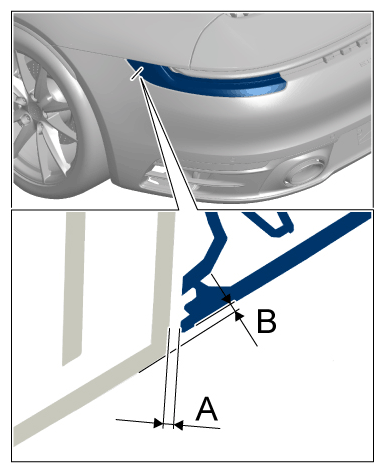

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and side panel
Tail light to outer rear apron (H14 4)	dimension A	gap dimension	2.0 mm	+/- 0.7 mm

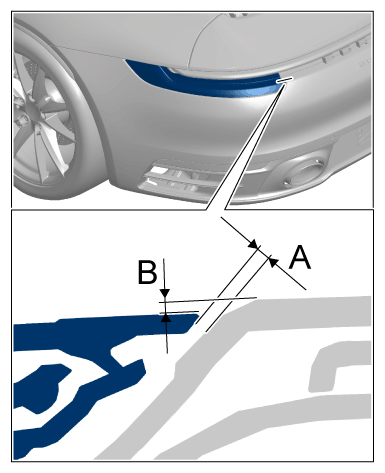

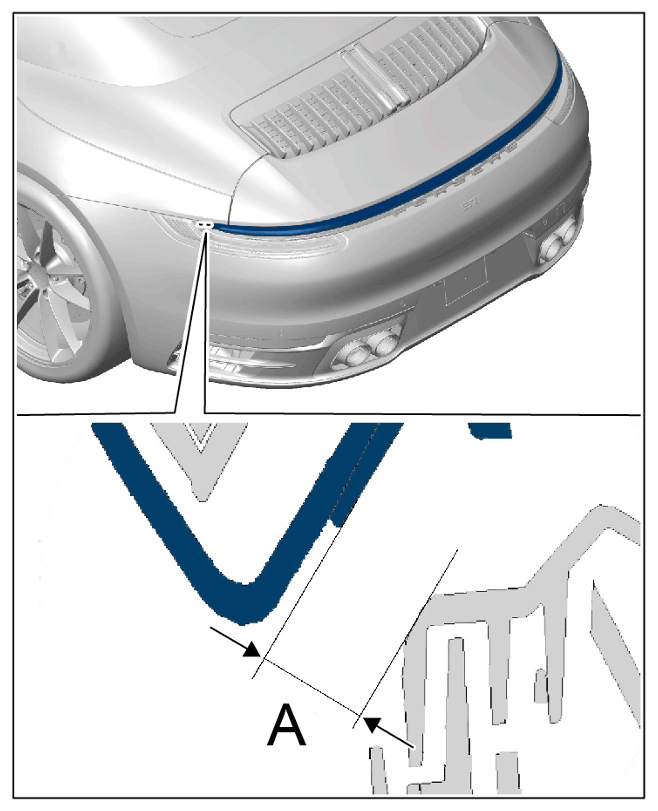

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and outer rear apron
Tail light to outer rear apron (H14 4)	dimension B	offset	2.0 mm	+/- 0.6 mm

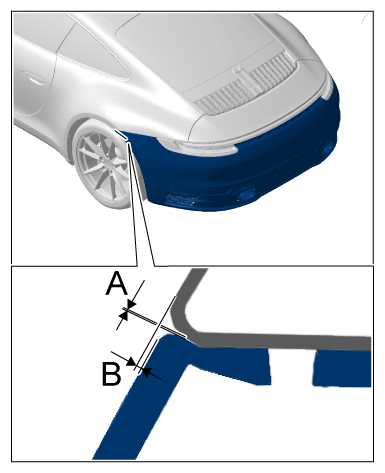

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and outer rear apron
Tail light to bottom rear apron (H14 3)	dimension A	gap dimension	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and bottom rear apron
Tail light to bottom rear apron (H14 3)	dimension B	offset	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and bottom rear apron
Tail light to bottom rear apron (H14 2)	dimension A	gap dimension	1.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner bottom rear apron
Tail light to inner bottom rear apron (H14 2)	dimension B	offset	2 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner bottom rear apron
Tail light to inner rear apron (H14 1)	dimension A	gap dimension	1.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner rear apron
Tail light to inner rear apron (H14 1)	dimension B	offset	1 mm	+/- 0.7 mm

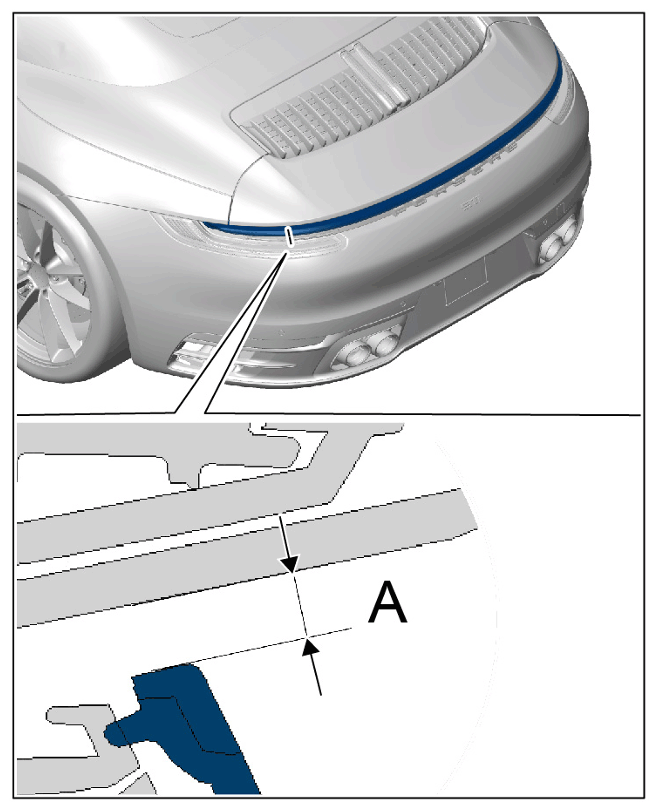

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light and inner rear apron
Tail light trim to trim logo (H14 0)	dimension A	gap dimension	2 mm	+/- 0.6 mm

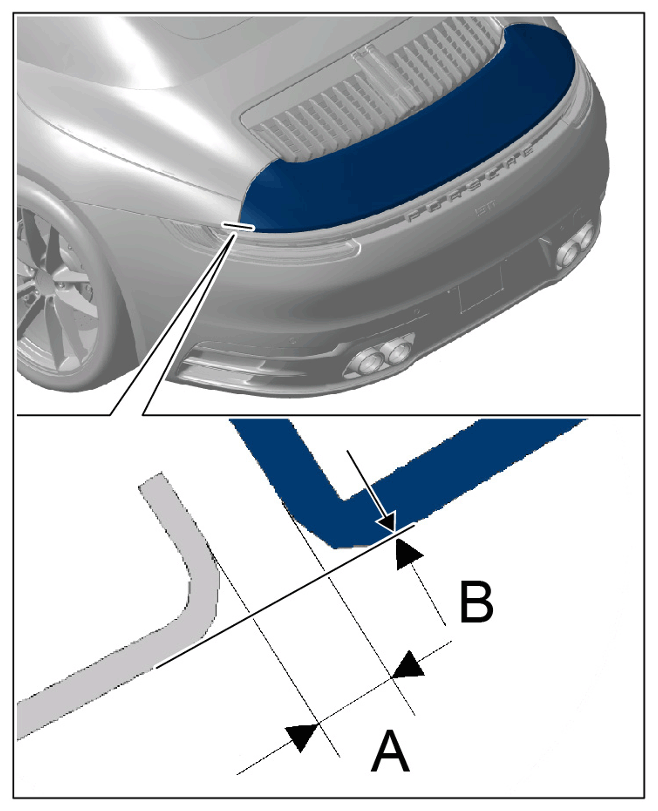

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light trim and trim logo
Tail light trim to trim logo (H14 0)	dimension B	offset	0 mm	+/- 0.7 mm

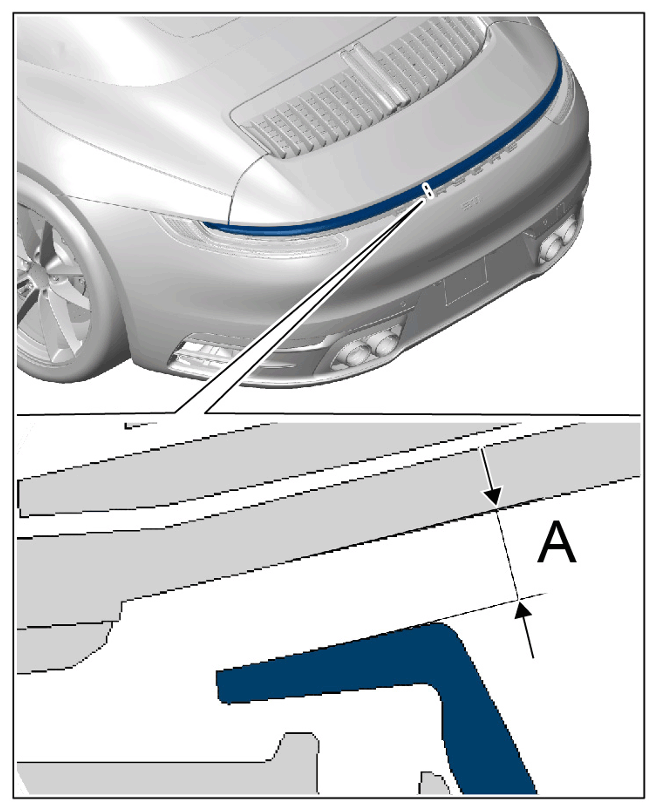

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Dimension of gap between tail light trim and trim logo
Front lid to front apron (F40-1)	Dimension A	Gap dimension	03 mm	+/- 0.7 mm

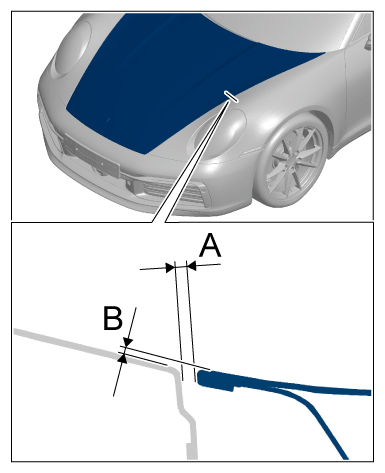

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron
Front lid to front apron (F40-1)	Dimension B	Offset	-1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron
Front lid to front apron (F40-2)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron
Front lid to front apron (F40-2)	Dimension B	Offset	-1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to front apron

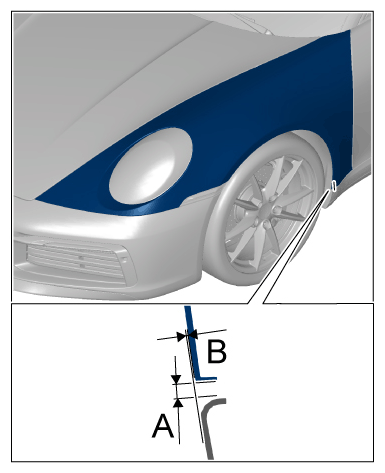

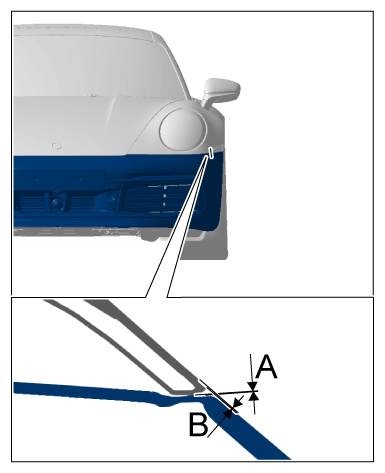

Wing to front apron (F30-10)	Dimension A	Gap dimension	0 mm	+ 0.5 mm

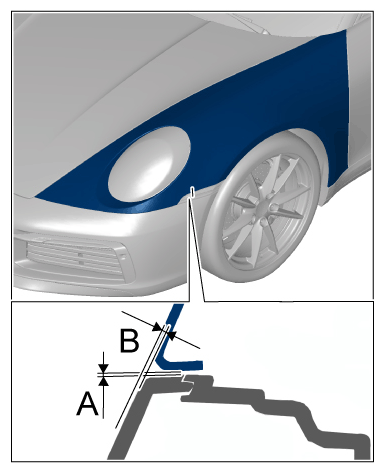

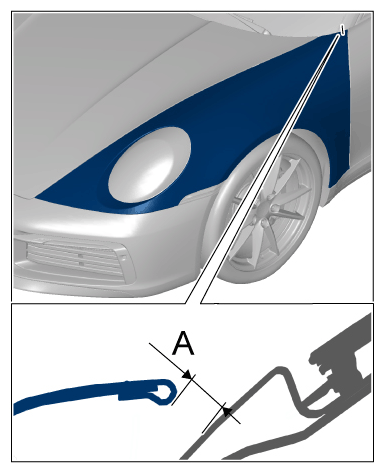

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wing to front apron (F30-10)	Dimension B	Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron

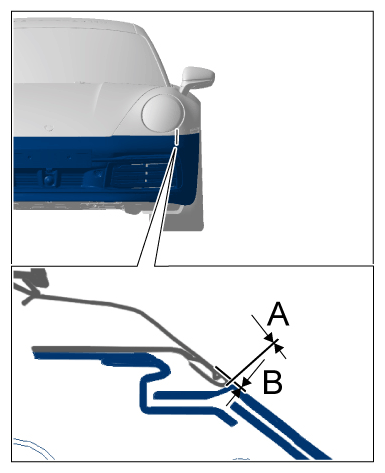

Wing to front apron (F30-20)	Dimension A	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front apron
Wing to front apron (F30-20)	Dimension B	Offset	0.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wing to front apron

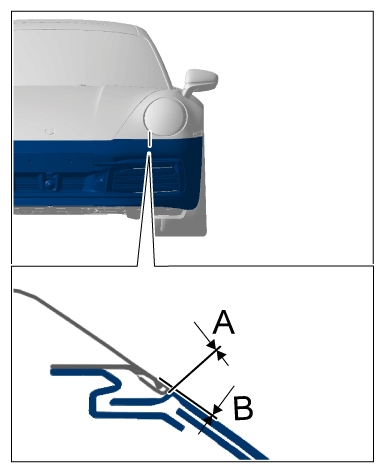

Wing to front apron (F30-30)	Dimension A	Gap dimension	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wng to front apron (F30-30)	Dimension B	Offset	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron

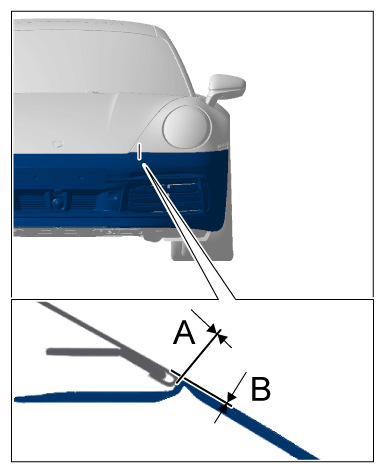

Wing to front apron (F30-40)	Dimension A	Gap dimension	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron
Wing to front apron (F30-40)	Dimension B	Offset	0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing to front apron

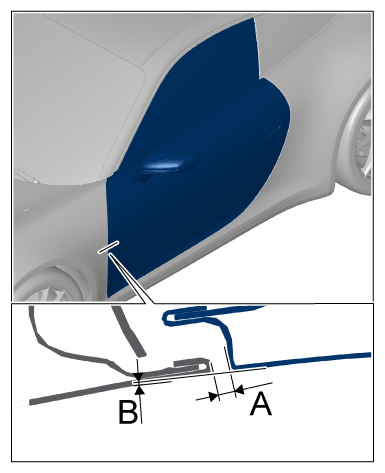

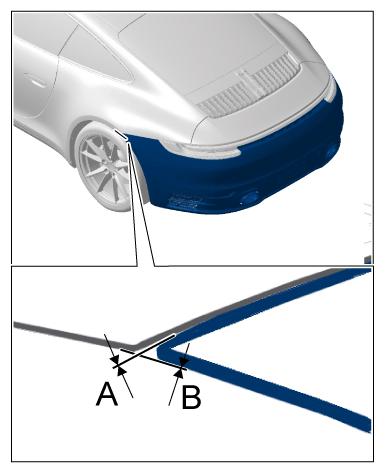

Side panel to rear apron (H30-0)	Dimension A	Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-0)	Dimension B	Offset	0 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-1)	Dimension A	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron
Side panel to rear apron (H30-1)	Dimension B	Offset	0.5 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear apron

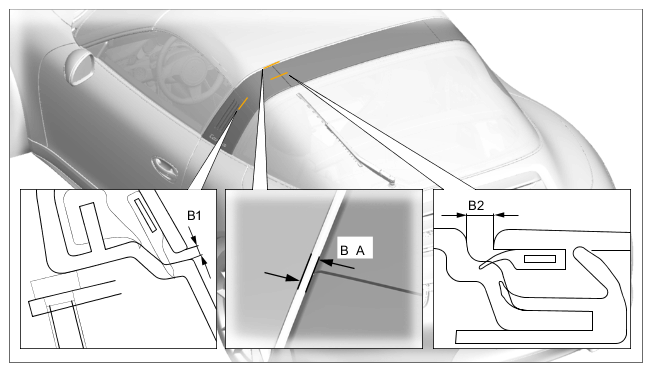

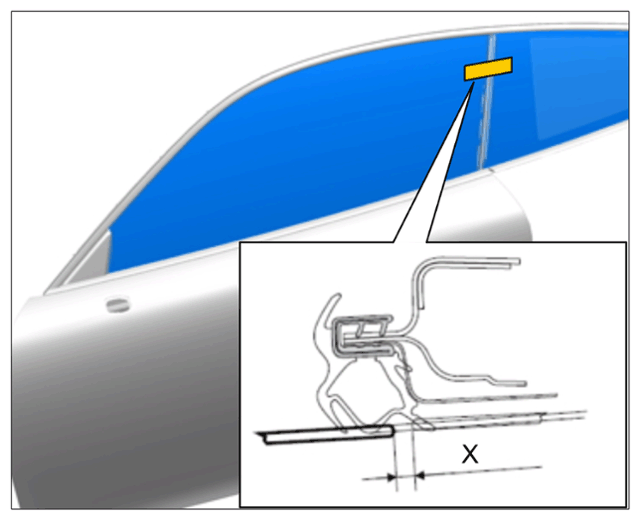

Side window gap with respect to door window	Dimension A	Gap dimension	9 mm	+/- 0.8 mm

Side window projection with respect to door window	Dimension B	Gap dimension	0 mm	+ 2 mm

Side window offset with respect to door window		Gap dimension	0 mm	- 2 mm

Door window with respect to side window		Gap dimension	7 mm	+/- 0.7 mm

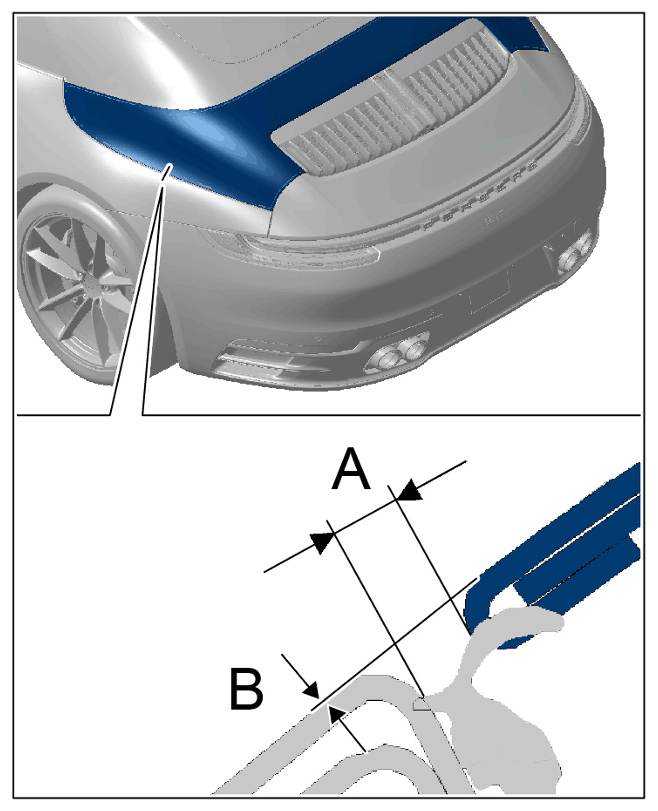

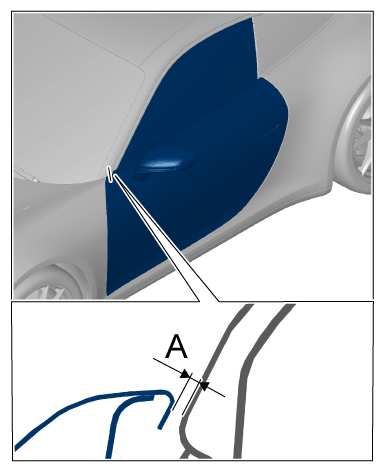

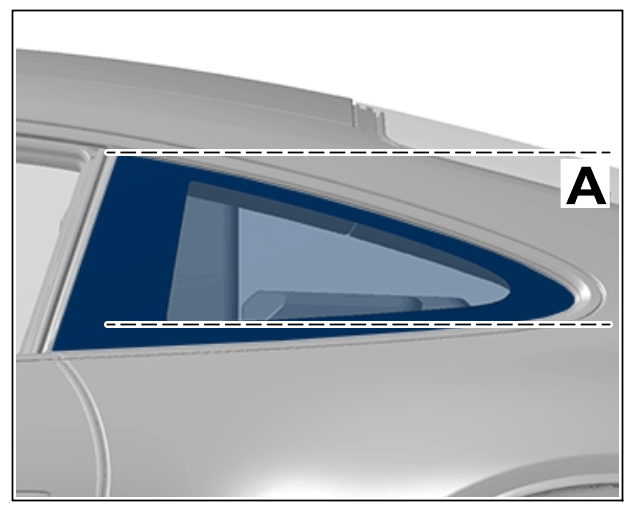

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door window
Side window offset with respect to door window		Gap dimension	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side window offset
Side panel to rear spoiler (H72_1)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_1)	Dimension B	Offset	- 0.8 mm	+ 0.7 mm	-0.5Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_2)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_2)	Dimension B	Offset	0 mm	+ 0.7 mm	-0.5Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_3)	Dimension A	Gap dimension	3.5 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler
Side panel to rear spoiler (H72_3)	Dimension B	Offset	0 mm	+ 0.7 mm	-0.5Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to rear spoiler

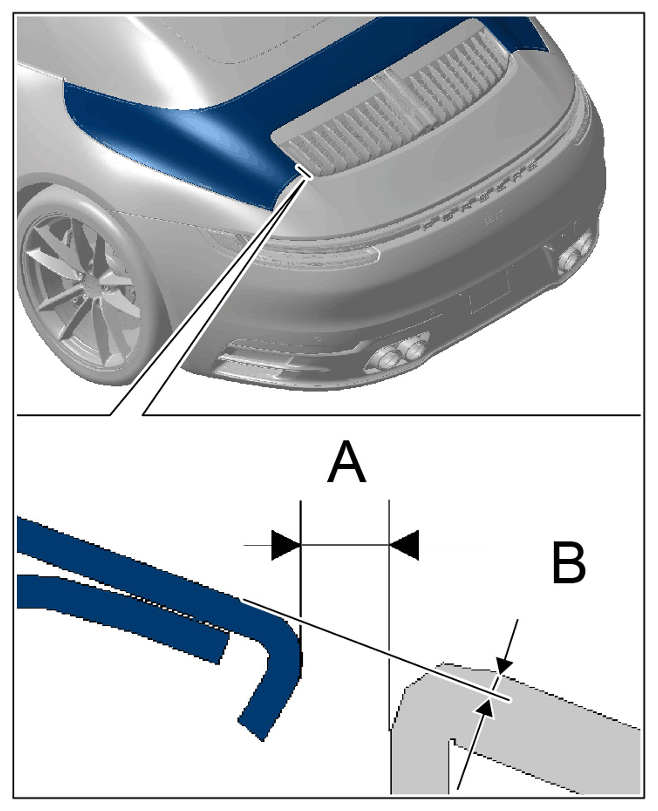

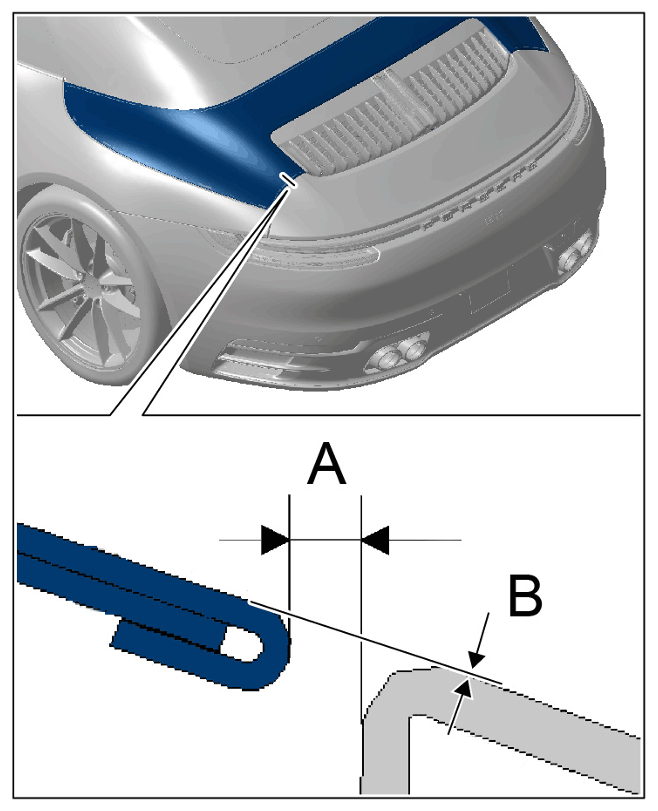

Convertible-top compartment lid to spoiler (H70_1)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to spoiler
Side panel to rear spoiler (H70_1)	Dimension B	Offset	- 0.7 mm	+ 0.7 mm	-0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to spoiler
Convertible-top compartment lid to spoiler (H70_2)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to spoiler
Convertible-top compartment lid to spoiler (H70_2)	Dimension B	Offset	0 mm	+ 0.7 mm	-0.5Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to spoiler

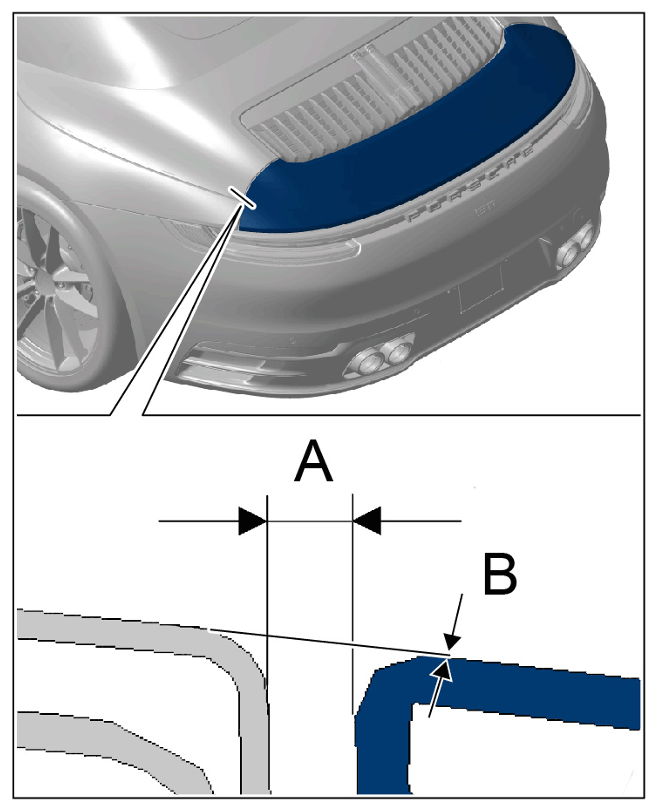

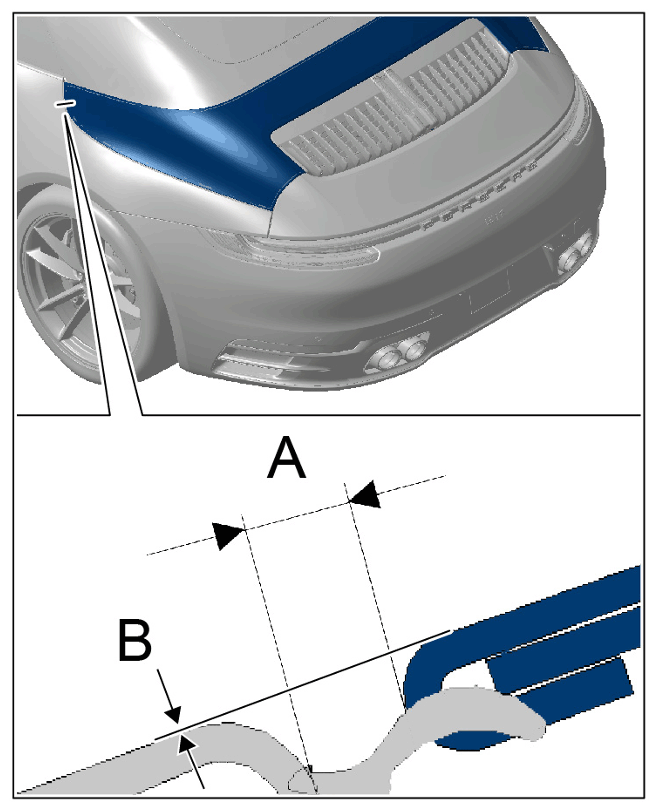

Convertible-top compartment lid to side panel (D26 1)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26 1)	Dimension B	Offset	0 mm	+ 0.5 mm	-0.7Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26 2)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26 2)	Dimension B	Offset	0 mm	+ 0.5 mm	-0.7Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid
Convertible-top compartment lid to side panel (D26 3)	Dimension A	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to side panel
Convertible-top compartment lid to side panel (D26 3)	Dimension B	Offset	0 mm	+ 0.5 mm	-0.7Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to side panel

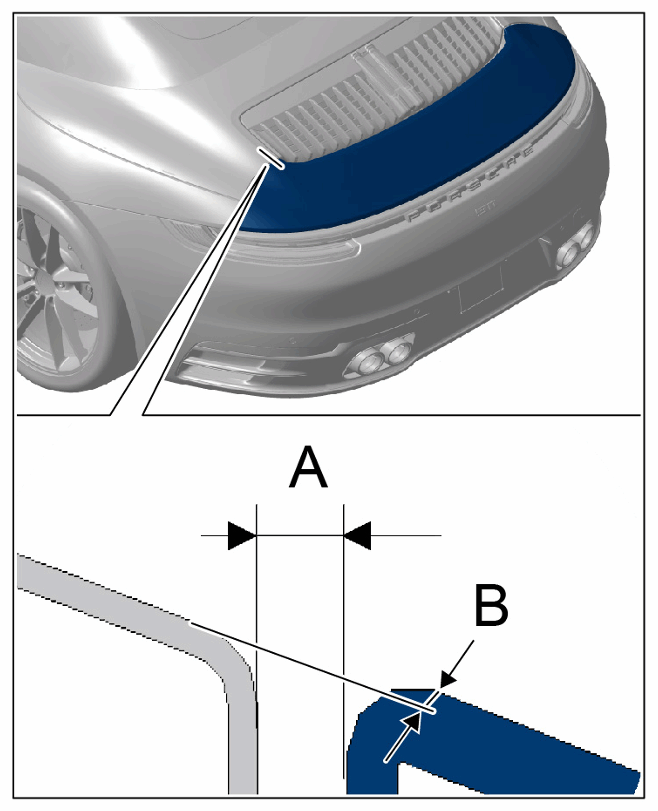

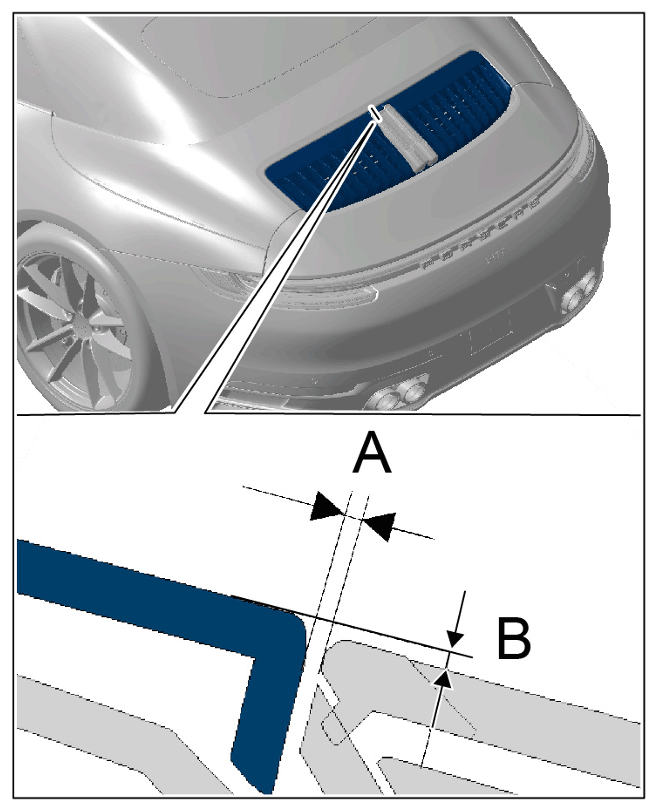

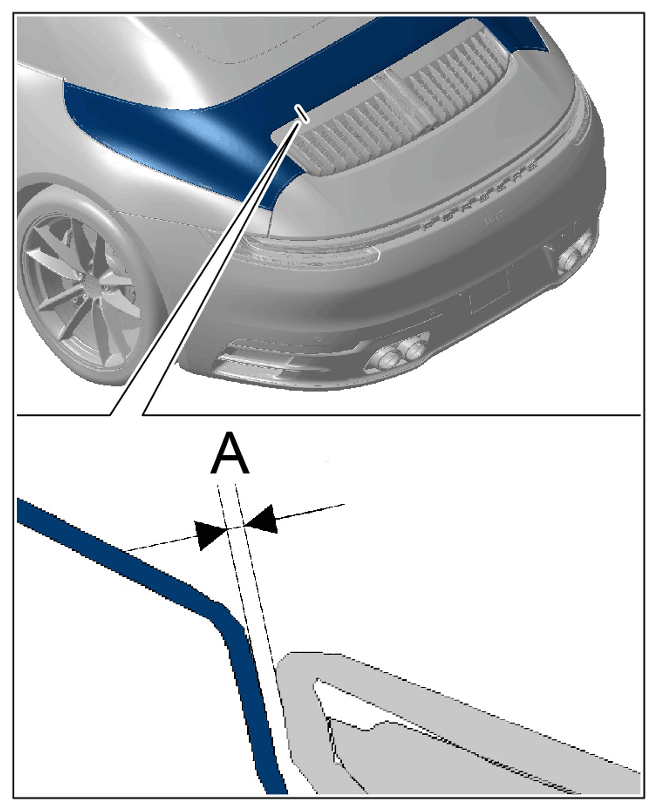

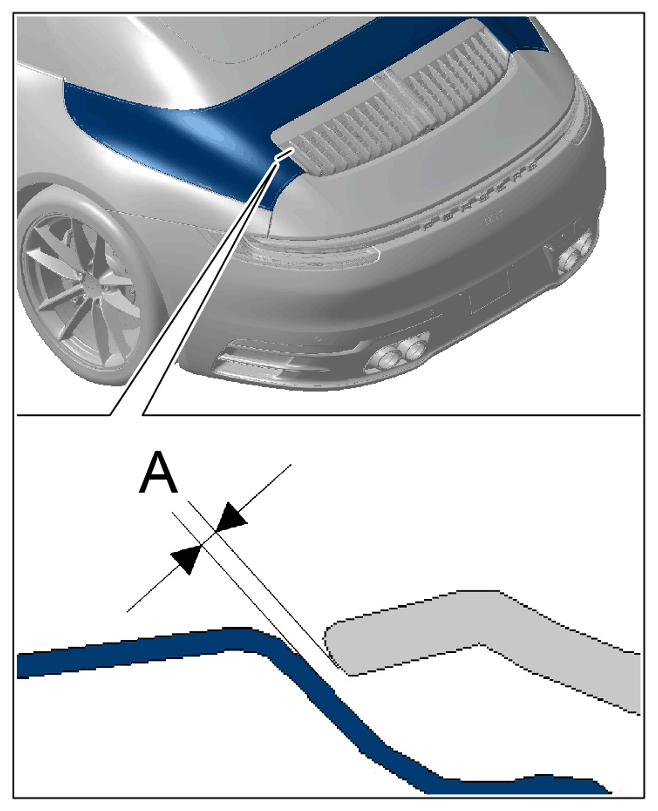

Convertible-top compartment lid to air intake grille (HP400_0)	Dimension A	Gap dimension	1 mm	+/- 0.5 mm

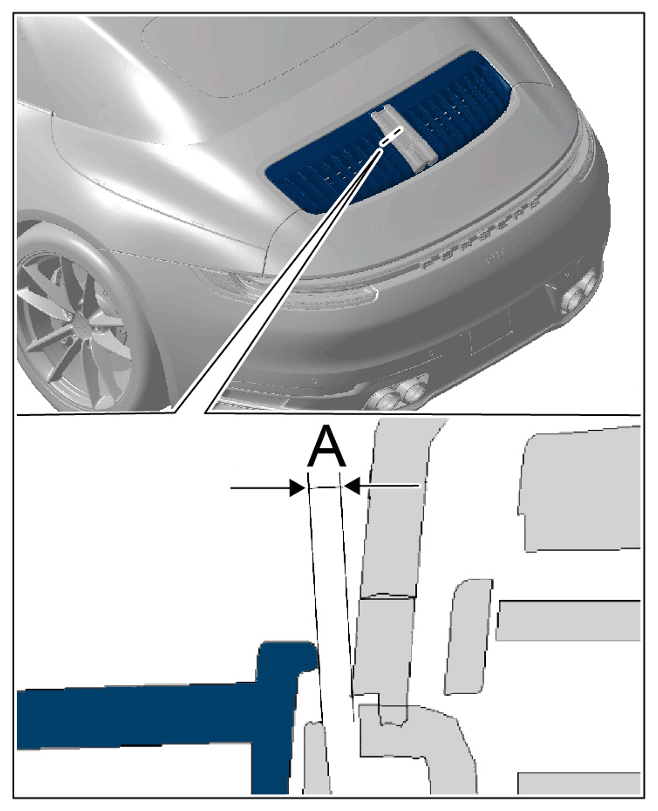

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to air intake grille
Convertible-top compartment lid to air intake grille (HP400_1)	Dimension A	Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to air intake grille
Rear window to door window (S23d)	Dimension A	Gap dimension	9 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear window to door window
Rear window to door window (S23d)	Dimension B	Offset	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear window to door window

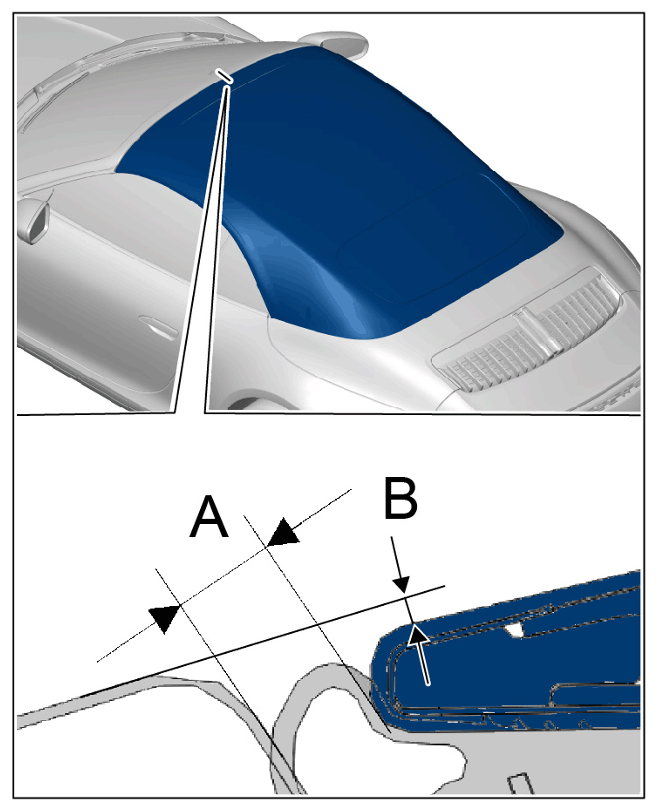

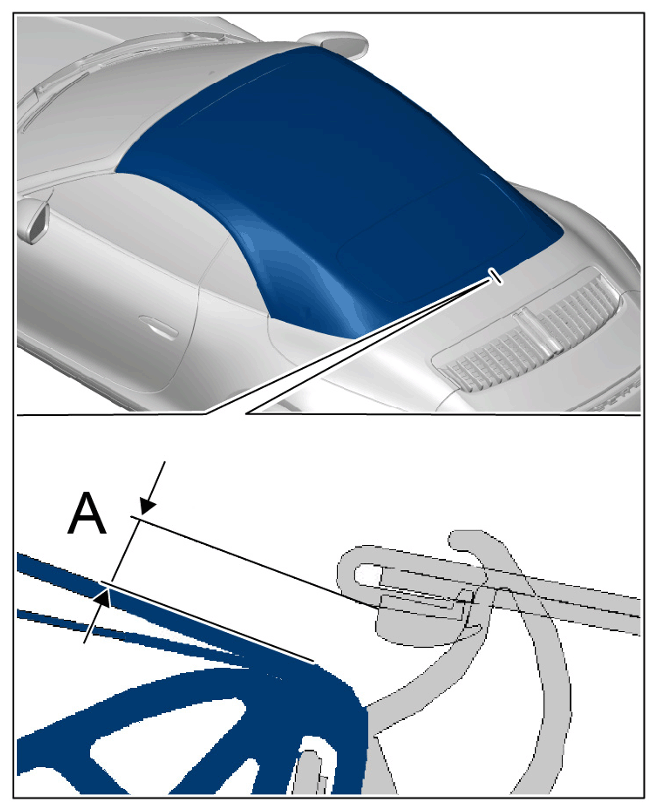

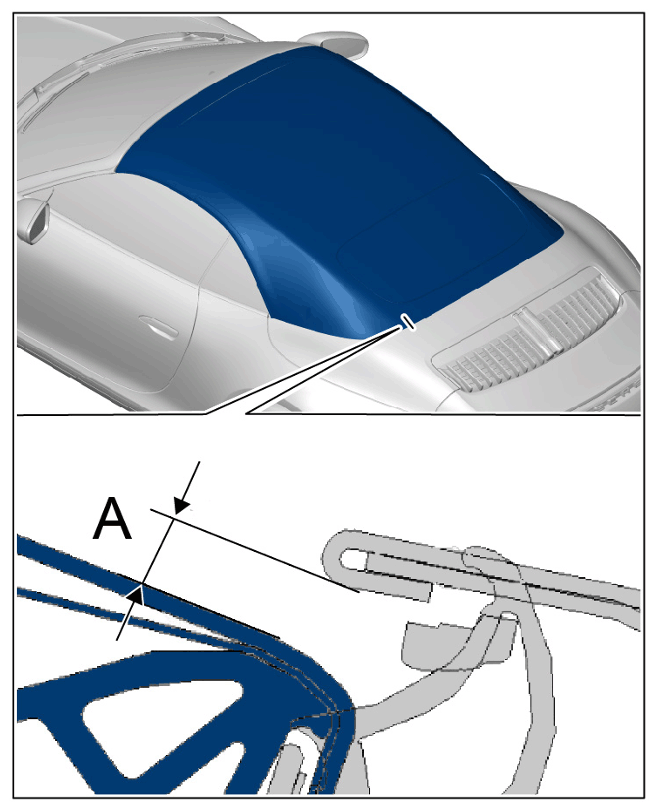

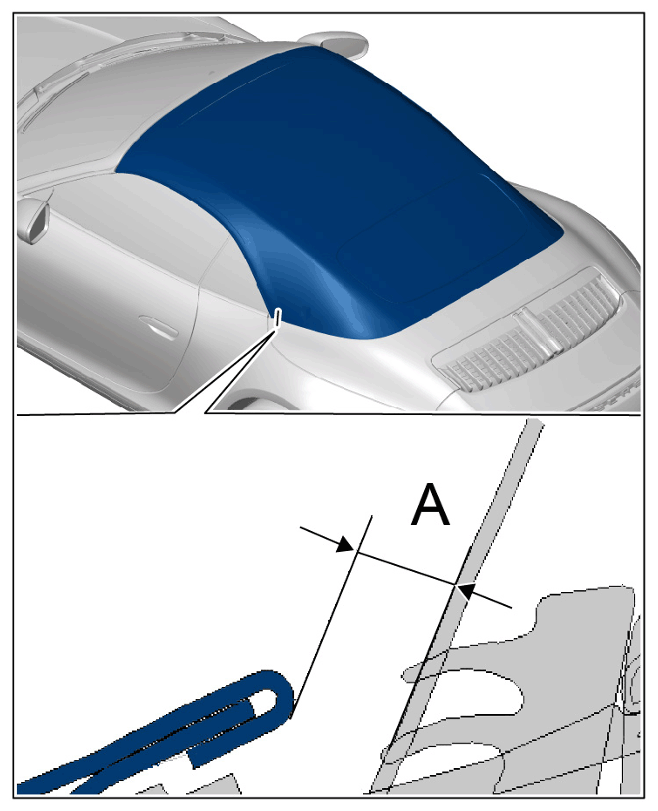

Convertible-top compartment lid to convertible top (D17_0)	Dimension A	Gap dimension	4.6 mm	+/- 1.7 mm

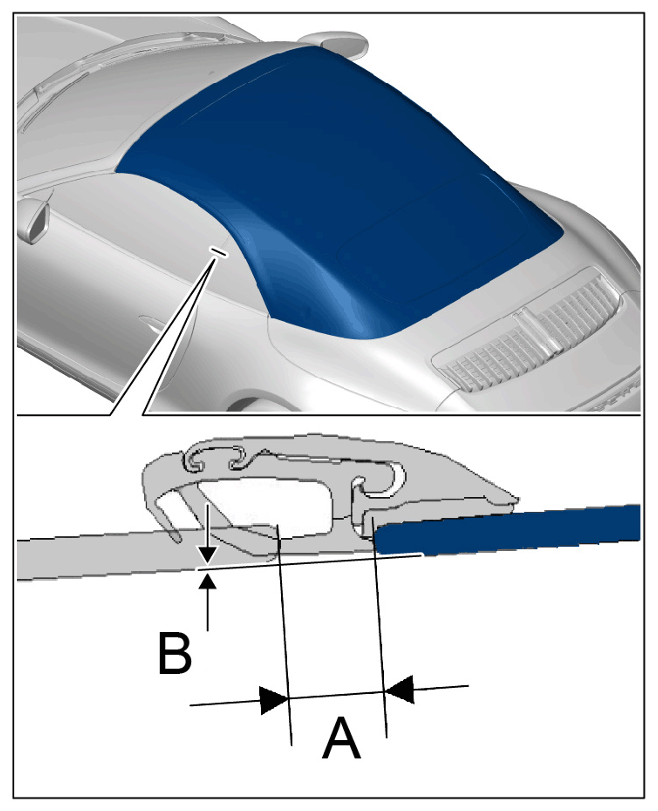

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to convertible top

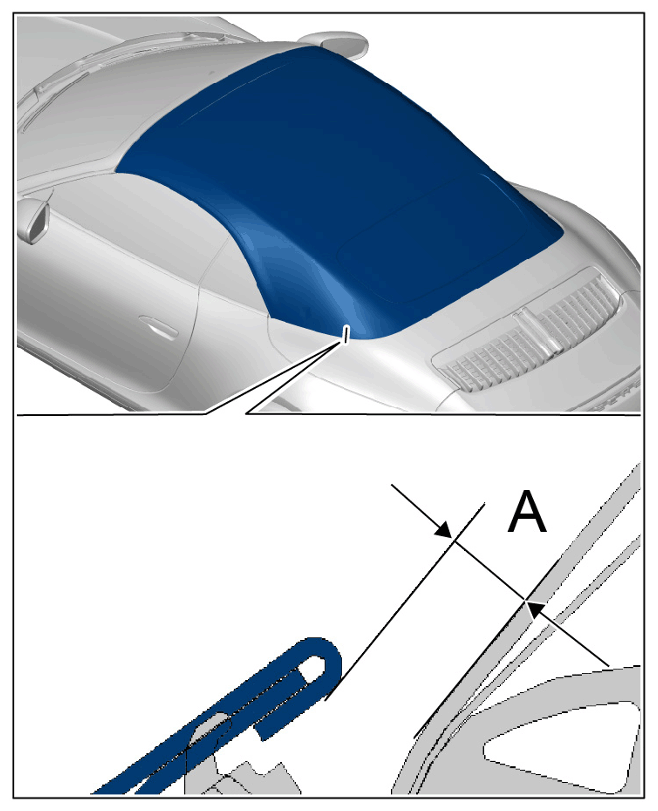

Convertible-top compartment lid to convertible top (D17_1)	Dimension A	Gap dimension	4.6 mm	+/- 1.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to convertible top
Convertible-top compartment lid to convertible top (D17_2)	Dimension A	Gap dimension	5.5 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to convertible top
Convertible-top compartment lid to convertible top (D17_3)	Dimension A	Gap dimension	7 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Convertible-top compartment lid to convertible top

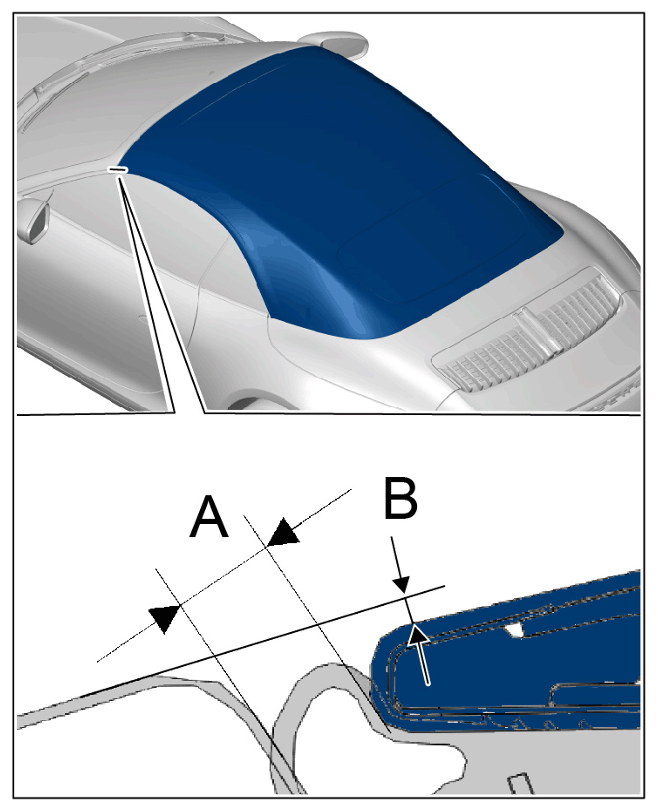

Cowl panel frame to convertible top (D10_1)	Dimension A	Gap dimension	6.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cowl panel frame to convertible top
Cowl panel frame to convertible top (D10_1)	Dimension B	Offset	1.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cowl panel frame to convertible top
Cowl panel frame to convertible top (D10_2)	Dimension A	Gap dimension	6.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cowl panel frame to convertible top
Cowl panel frame to convertible top (D10_2)	Dimension B	Offset	1.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cowl panel frame to convertible top
Tail light to light panel (H14a_2)	Dimension A	Gap dimension	4.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail light to light panel
Tail light to light panel (H14a_3)	Dimension A	Gap dimension	10 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tail light to light panel
Logo trim to light panel (HP204)	Dimension A	Gap dimension	4.7 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Logo trim to light panel
Side panel to air intake grille (H42a)	Dimension A	Gap dimension	3 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side panel to air intake grille
Air intake grille to brake light (HP402_0)	Dimension A	Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air intake grille to brake light
Air intake grille to brake light (HP402_0)	Dimension B	Offset	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air intake grille to brake light
Air intake grille to brake light (HP402_2)	Dimension A	Gap dimension	1.6 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air intake grille to brake light
