WM, 5X00IN40 Technical Values: Notes

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2

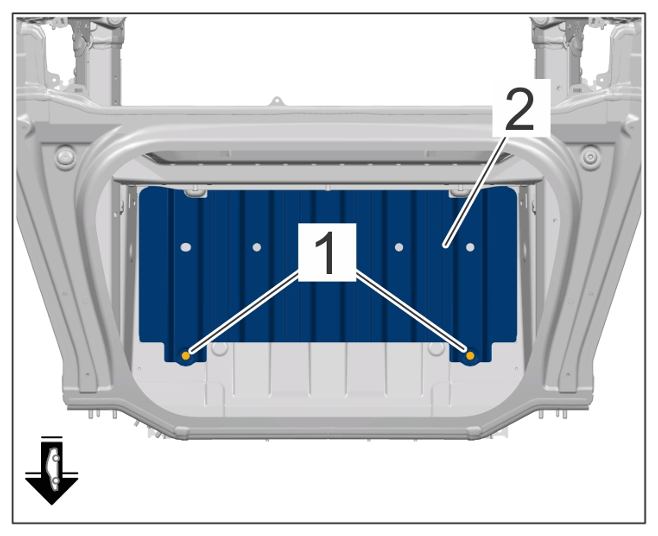

Nuts Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Floor front section

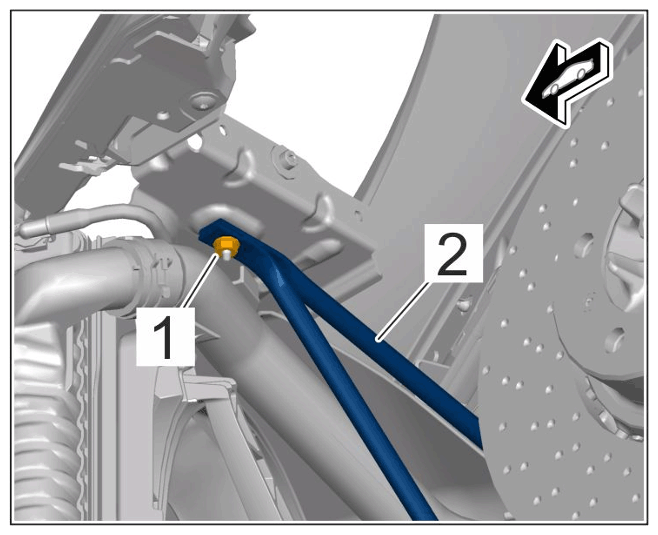

Nut securing strut to front wing Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner fastening nut

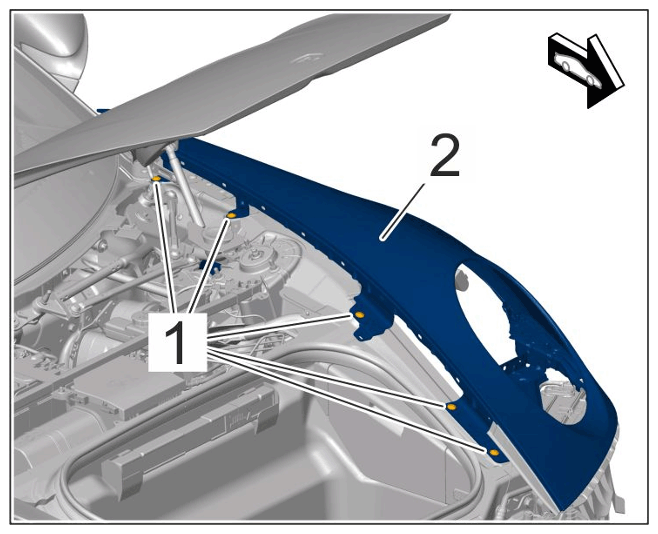

Screws on wing, top Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing screws, top

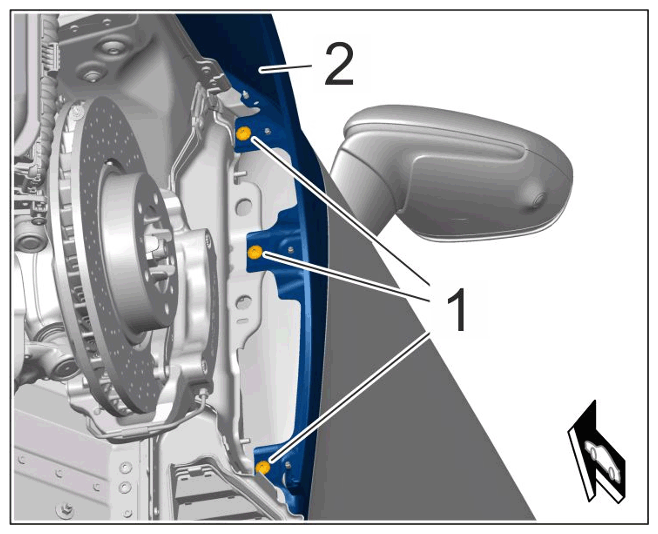

Screws on wing, rear Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223703Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing screws, rear

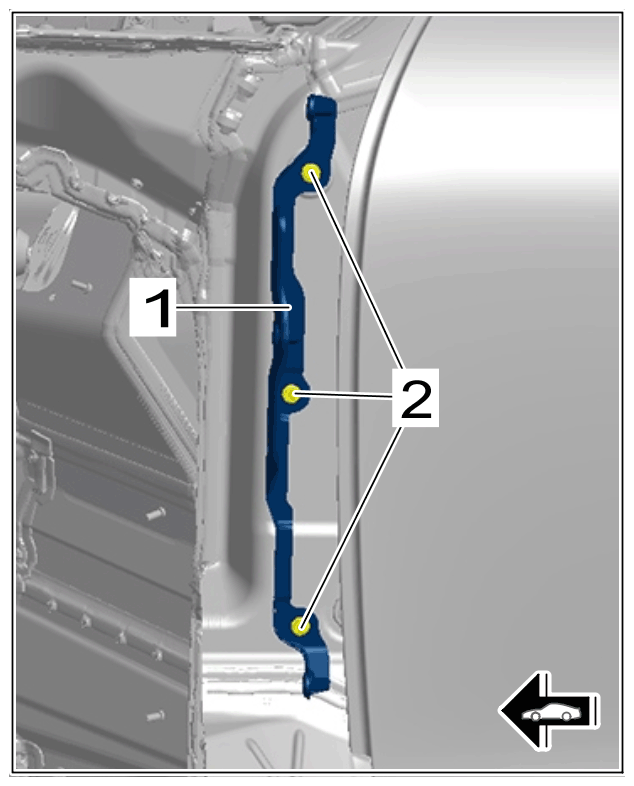

Nut for the securing rail for the wing joining plate Item 2 Tightening torque 8 Nm
G14223704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing joining plate

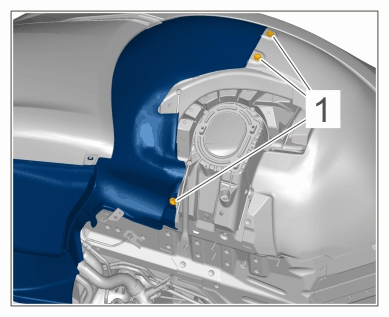

Front wheel housing liner (front section) Item 1 Tightening torque 2 (1.5 ft.lb) Nm + 10% - 15 %
G14223705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Front wheel housing liner (front section) Item 1 Tightening torque 3.2 (2.1 ft.lb) + 10% - 15 %
G14223706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws		     Nm

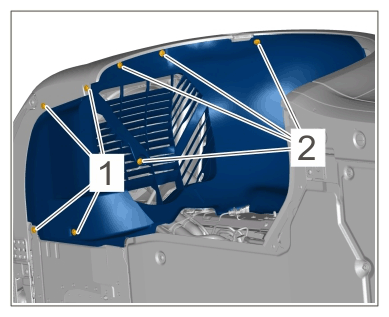

Front wheel housing liner (front section) Item 2 Tightening torque 2 (1.5 ft.lb) Nm + 10% - 15 %
G14223707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

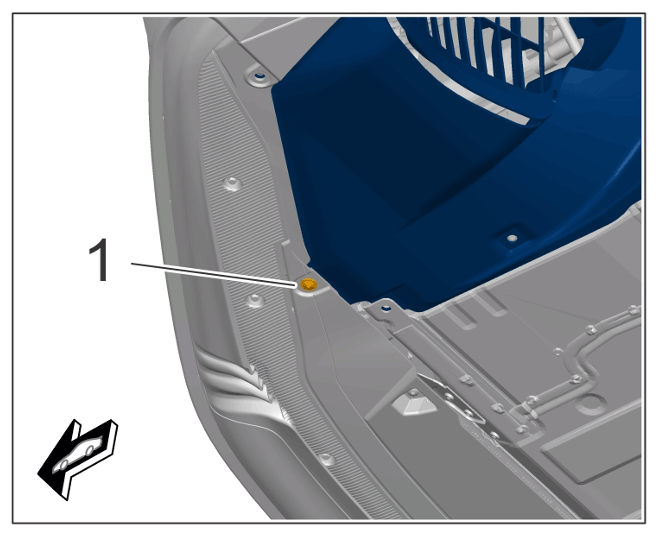

Front wheel housing liner (front section) Item 1 Tightening torque 3.2 (2.1 ft.lb) Nm + 10% - 15 %
G14223708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

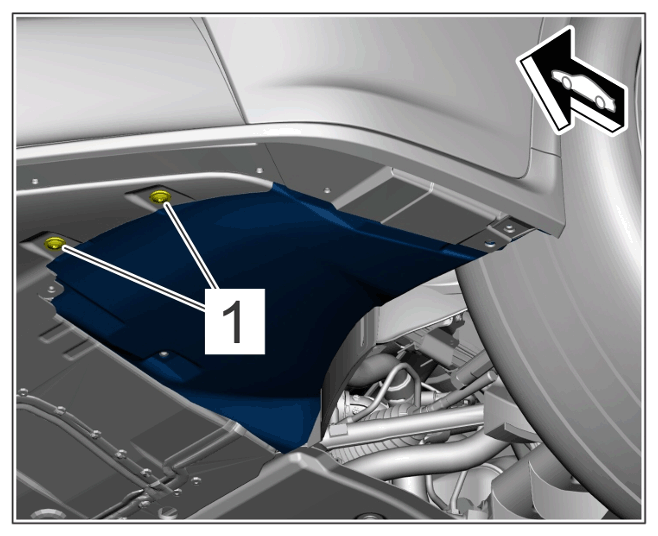

Front screws (front section) GT3 Item 1 Tightening torque 3.2 (2.4 ft.lb) Nm
G14223709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

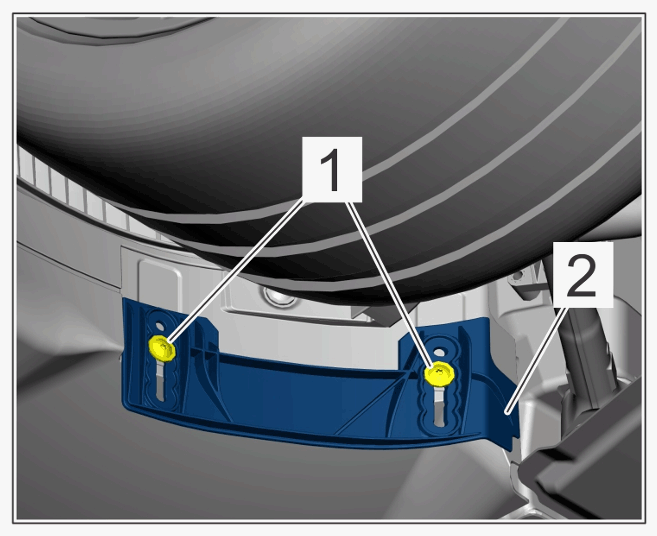

Screws for front wheel housing liner (separation edge) Item 1 Tightening torque 2 (1.5 ft.lb) Nm
G14223710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Front wheel housing liner (rear section) Item 1 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner (front section)

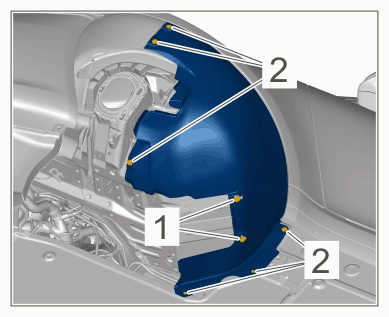

Front wheel housing liner (rear section) Item 2 Tightening torque 2 (1.5 ft.lb) Nm + 10% - 15 %
G14223712Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner (front section)

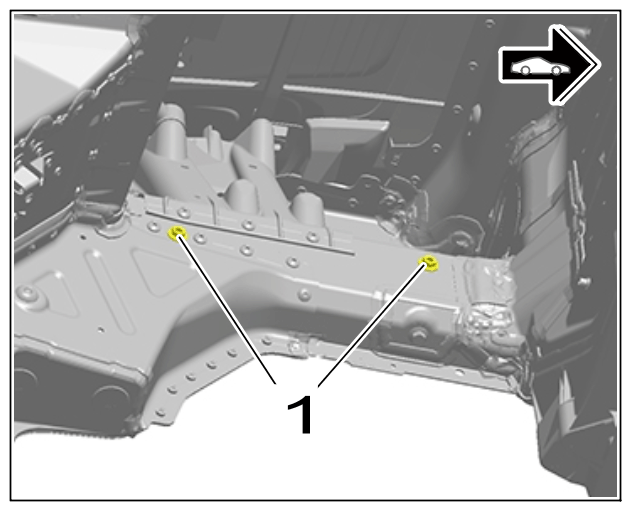

Screws for front longitudinal member (wishbone mounting) Item 1 Tightening torque 40 Nm
G14223713Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for wishbone mounting

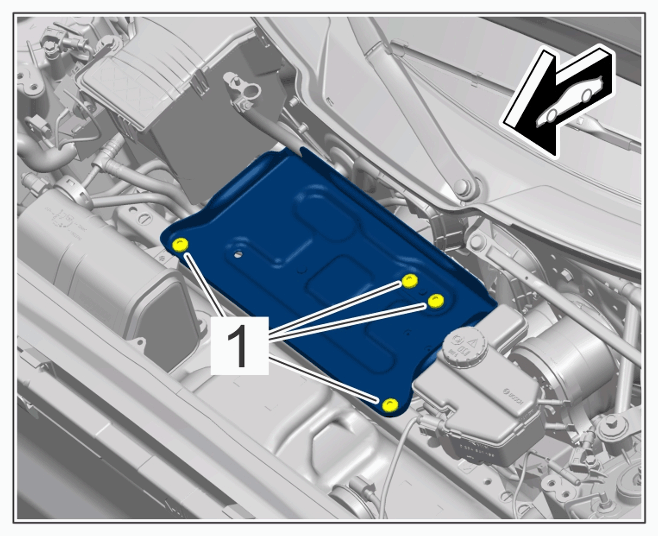

Battery console to bodyshell Item 1 Tiqgtening torque 23 (17 ft.lb) Nm
G14223714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

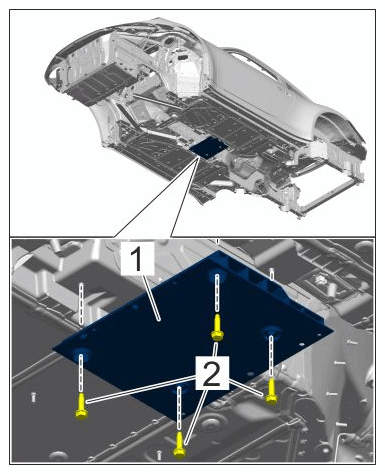

Rear tunnel reinforcement to floorpan Item 2 Tightening torque 40 (30 ft.lb) Nm
G14223715Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crash reinforcement in rear tunnel

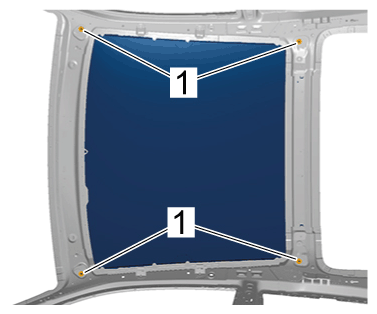

Roof Item 1 Tightening torque 10 Nm
G14223716Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof

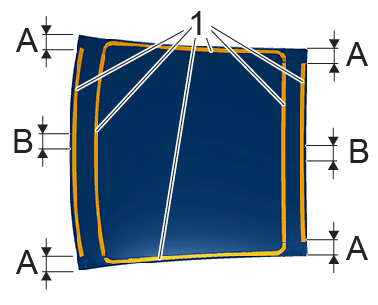

Area A   Length 50 mm
G14223717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding surfaces
Area B   Length 30 mm
G14223718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding surfaces
Roof pillar to bore on roof (front panel) Item A Length 45 mm
G14223719Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (front panel)
Windscreen to bore on roof (front panel) Item B Length 40 mm
G14223720Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (front panel)

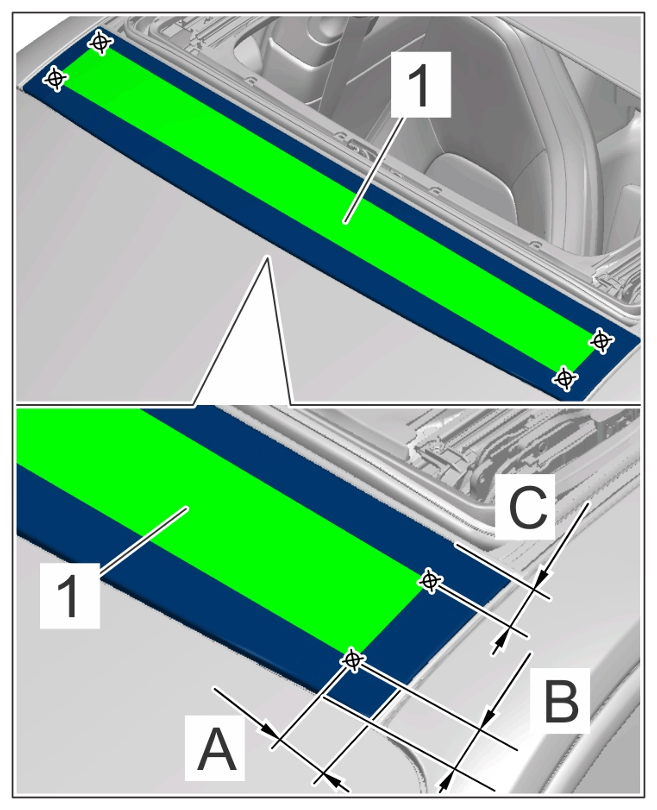

Sliding roof opening to bore on roof (front panel) Item C Length 40 mm
G14223721Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (front panel)
Roof pillar to bore on roof (rear panel) Item A Length 45 mm
G14223722Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (rear panel)

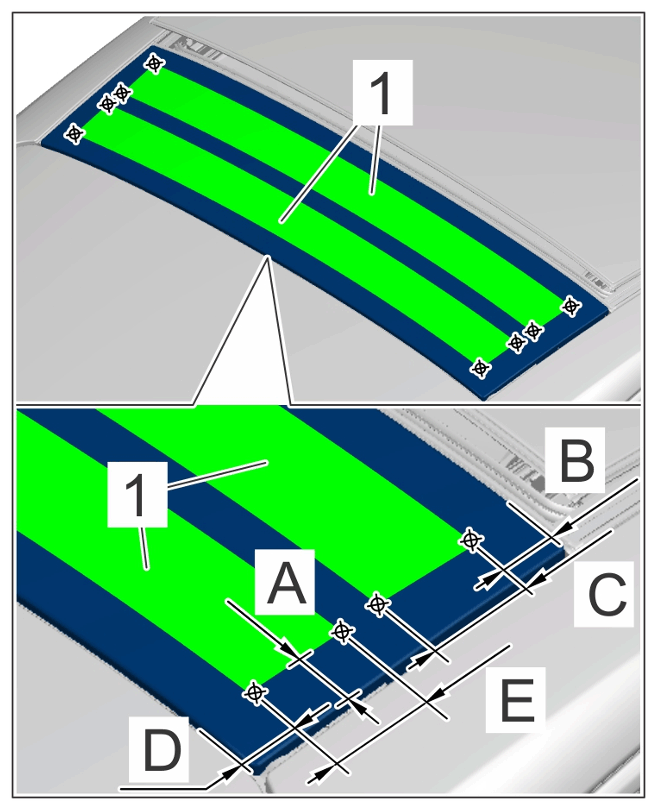

Bore to bore Item B Length 40 mm
G14223723Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (rear panel)
Sliding roof opening to bore on roof (rear panel) Item C Length 80 mm
G14223724Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (rear panel)
Rear window to bore on roof (rear panel) Item D Length 35 mm
G14223725Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (rear panel)
Bore to bore Item E Length 45 mm
G14223726Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof (rear panel)

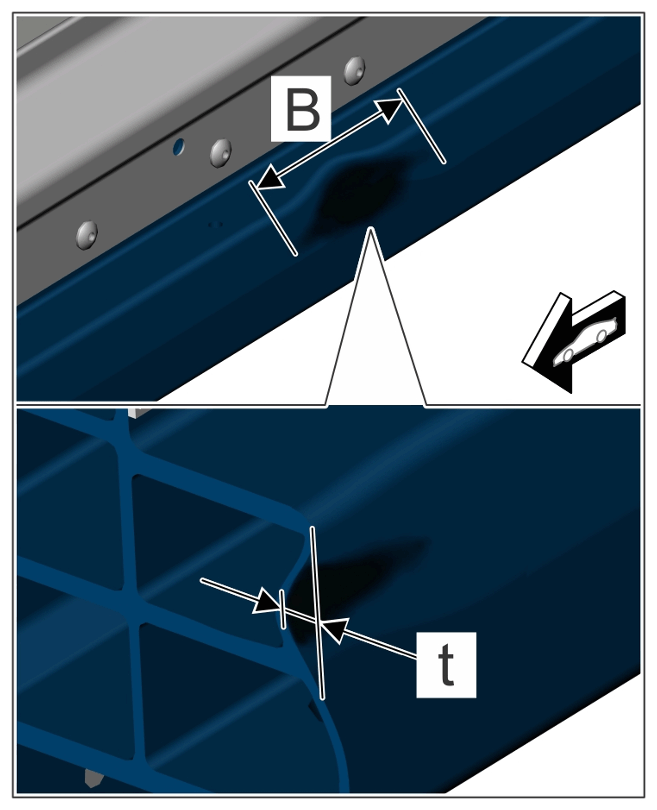

Maximum damage width - deformation Item B Length 90 mm
G14223727Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage width
Maximum damage depth Item t Length 10 mm
G14223728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage depth

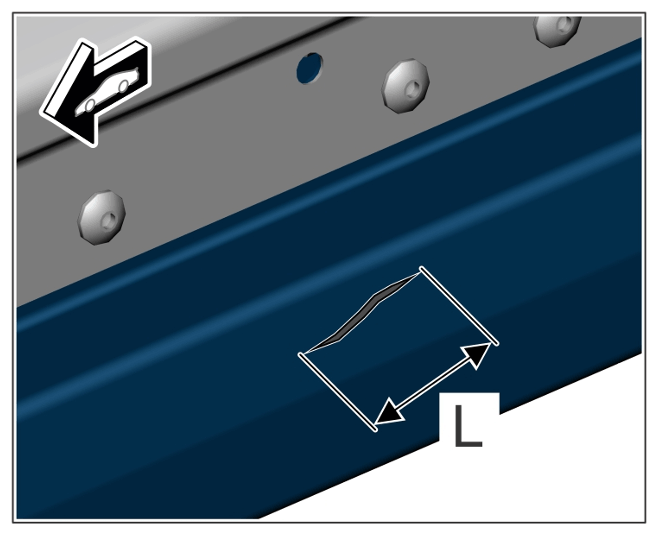

Maximum crack length Item L Length 20 mm
G14223729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crack length

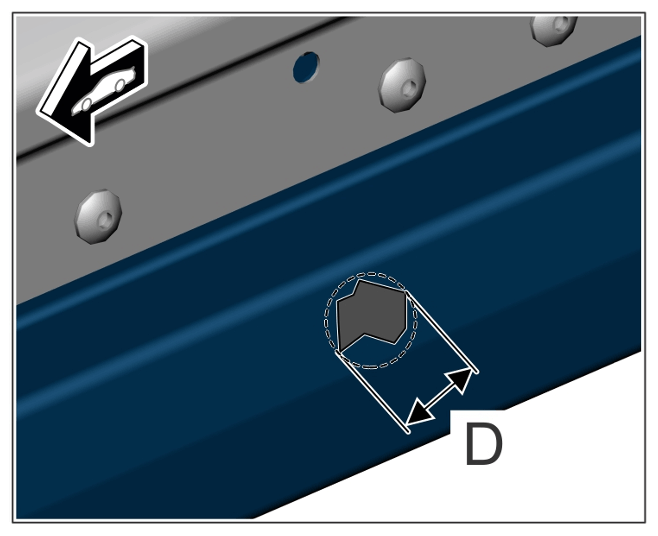

Maximum hole diameter Item D Diameter 10 mm
G14223730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole diameter

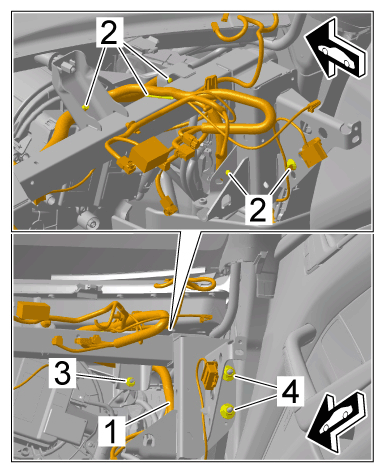

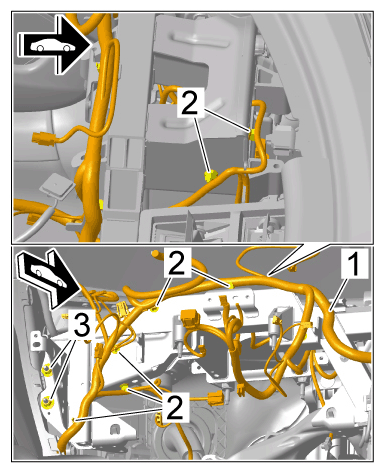

Nuts securing dashboard bracket to A-pillar Items 3 and 4 Tightening torque 20 (14.7 ft.lb) Nm
G14223731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing dashboard bracket to left A-pillar
G14223732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing dashboard bracket to right A-pillar		 r

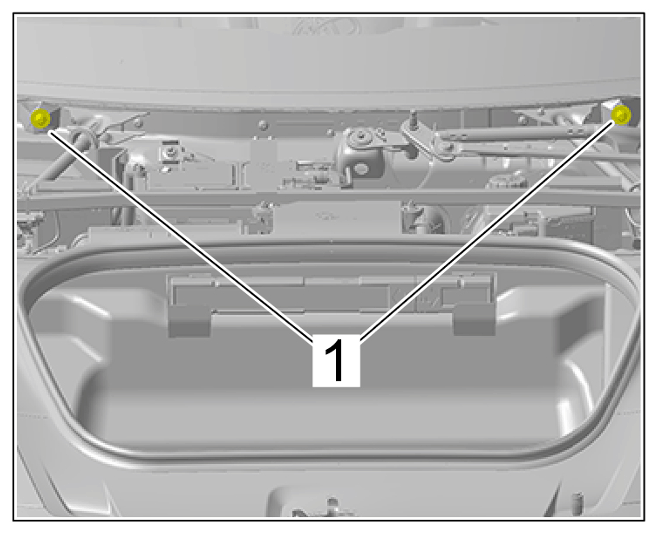

Screws securing dashboard bracket to bulkhead Item 1 Tightening torque 16 (12 ft.lb) Nm
G14223733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

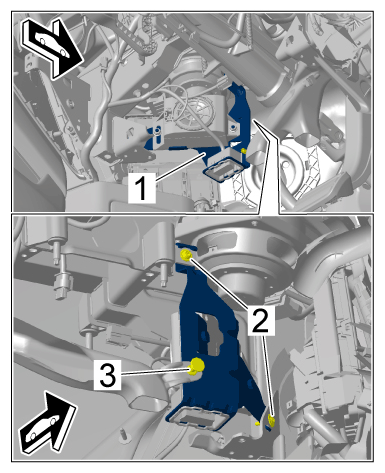

Screws securing PDC buzzer holder to dashboard bracket Item 2 Tightening torque 3.2 (2.4 ft.lb) Nm
G14223734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PDC buzzer holder

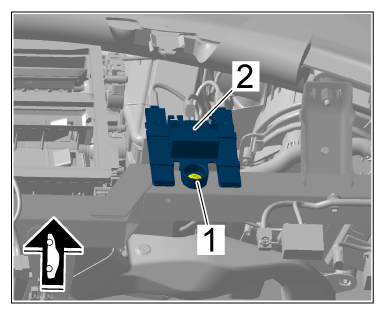

Screw securing antenna holder to dashboard bracket Item 1 Tightening torque 1.5 (1 ft.lb) Nm
G14223735Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna holder
Front cover Item 1 Tightening torque 3 (2 ft.lb) Nm + 10% - 15 %
G14223736Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and nuts

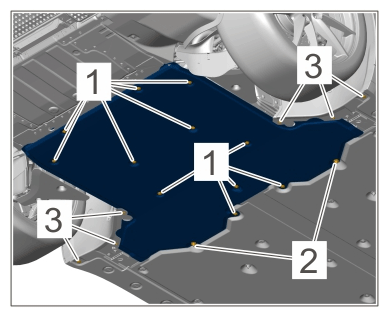

Front cover Item 2 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223737Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and nuts
Front cover (Cabriolet) Item 1 Tightening torque 3 (2 ft.lb) Nm + 10% - 15 %
G14223738Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and nuts

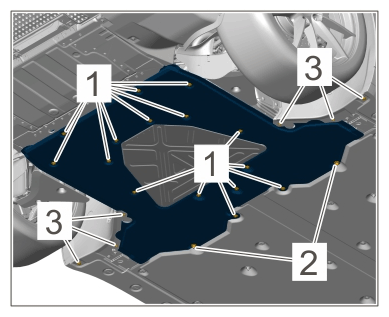

Front cover (Cabriolet) Item 2 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws and nuts

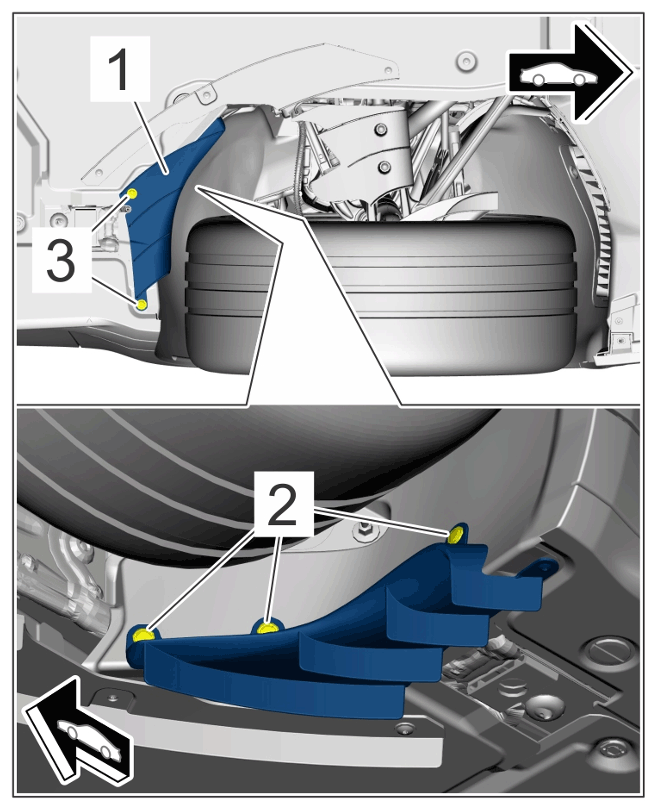

Screws for front cover (outer fin) Item 3 Tightening torque 2 (1.5 ft.lb) Nm
G14223740Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (outer fins)

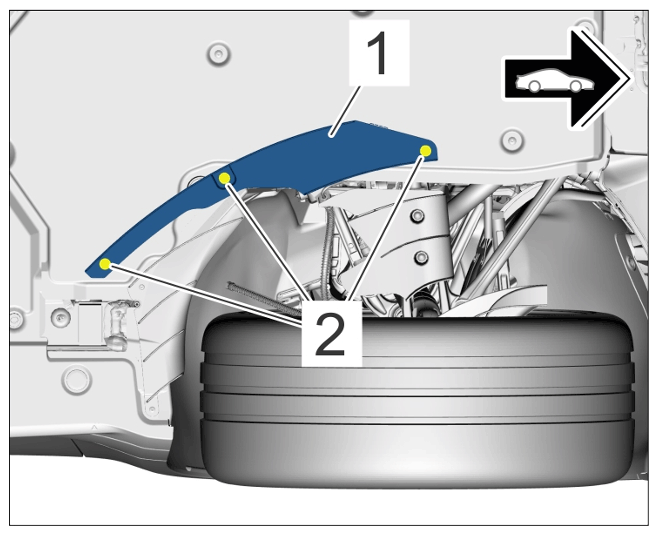

Screws for front cover (inner fin) Item 2 Tightening torque 2 (1.5 ft.lb) Nm
G14223741Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (inner fins)

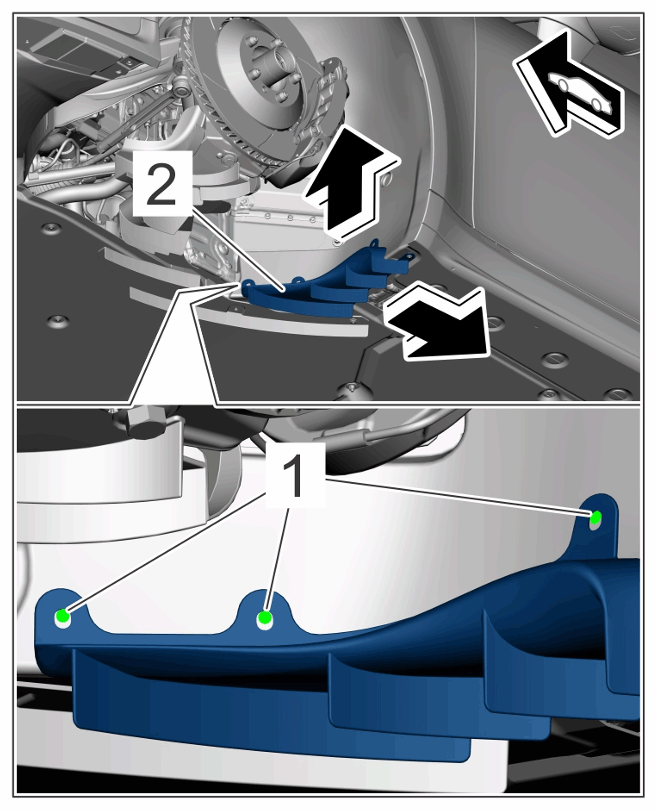

Screws securing connecting piece to B-pillar reinforcement Item 1 Tightening torque 40 (30 ft.lb) Nm
G14223742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

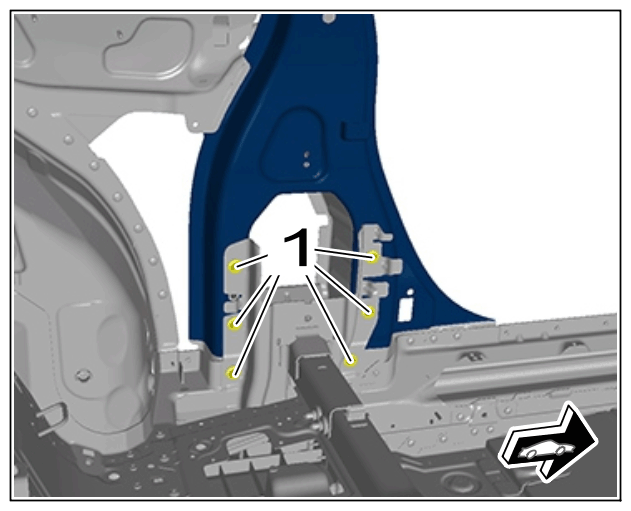

Screw securing door sill to B-pillar reinforcement Item 1 Tightening torque 4 (3 ft.lb) Nm
G14223743Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

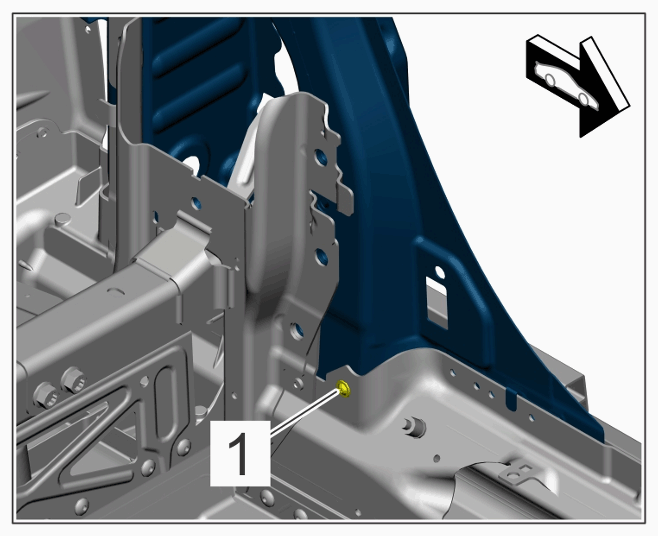

Centre cover Item 2 Tightening torque 3 (2 ft.lb) Nm + 10% - 15 %
G14223744Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts

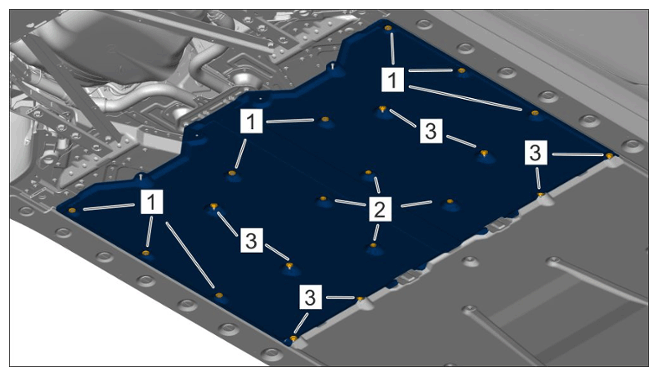

Centre cover Item 2 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223745Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts
Rear cover Item 1 Tightening torque 3 (2 ft.lb) Nm + 10% - 15 %
G14223746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

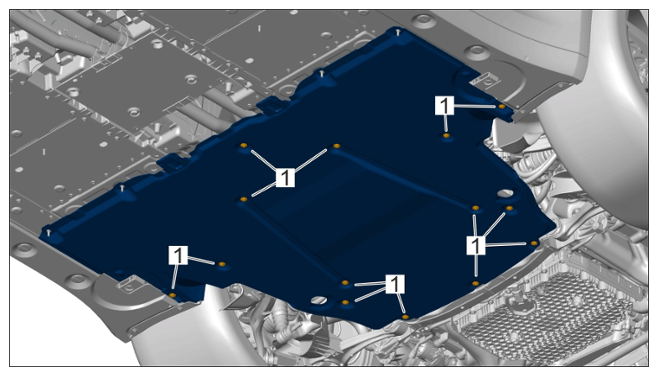

Rear cover Item 1 Tightening torque 3 (2 ft.lb) Nm + 10% - 15 %
G14223747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

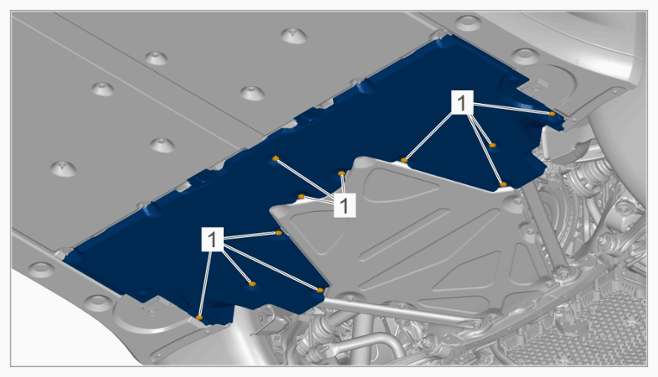

Rear cover Item 2 Tightening torque 30 (22 ft.lb) Nm
G14223748Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

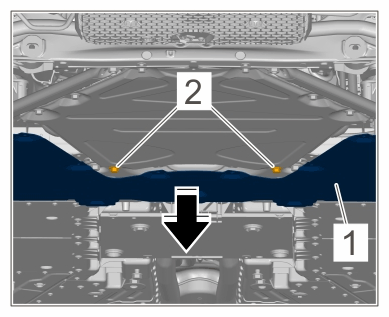

Rear cover Item 1 Tightening torque 30 (22 ft.lb) Nm
G14223749Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover

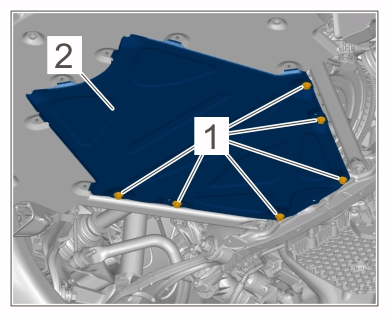

Rear cover Item 1 Tightening torque 3 (2 ft.lb) Nm
G14223750Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

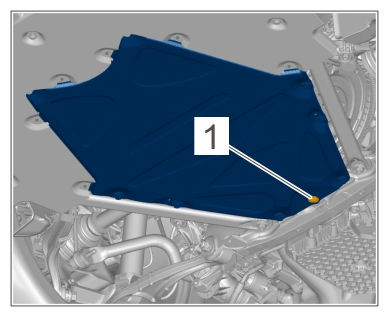

Nut for rear cover Item 2 Tightening torque 2.5 (2 ft.lb) Nm
G14223751Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover
Screws for rear cover Item 3 Tightening torque 3 (2 ft.lb) Nm
G14223752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover

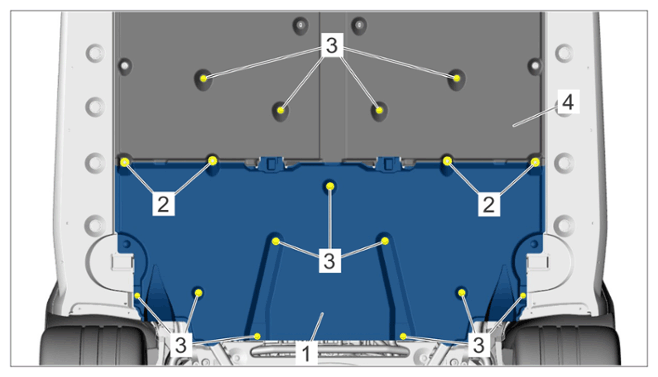

Rear wheel housing liner (front section) Item 1 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223753Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts
Rear wheel housing liner (front section) Item 2 Tightening torque 2 (1.5 ft.lb) Nm + 10% - 15 %
G14223754Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts
Rear wheel housing liner (front section) Item 3 Tightening torque 3.2 (2.1 ft.lb) Nm + 10% - 15 %
G14223755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts

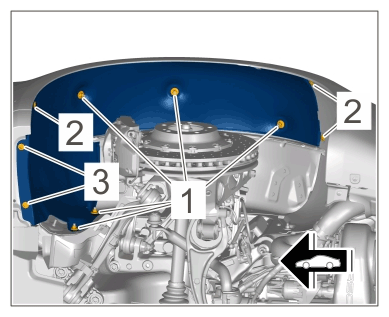

Rear wheel housing liner (rear section) Item 1 Tightening torque 2.5 (1.75 ft.lb) Nm + 10% - 15 %
G14223756Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts
Rear wheel housing liner (rear section) Item 2 Tightening torque 2 (1.5 ft.lb) Nm + 10% - 15 %
G14223757Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts
Rear wheel housing liner (rear section) Item 3 Tightening torque 3.2 (2.1 ft.lb) Nm + 10% - 15 %
G14223758Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts

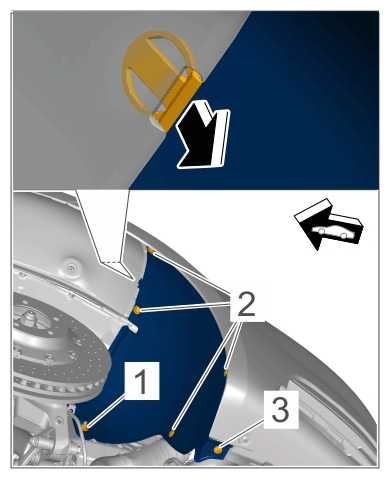

Upper part of front lock Item 1 Tightening torque 9.7 (7.5 ft.lb) Nm
G14223759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on upper part of front lock

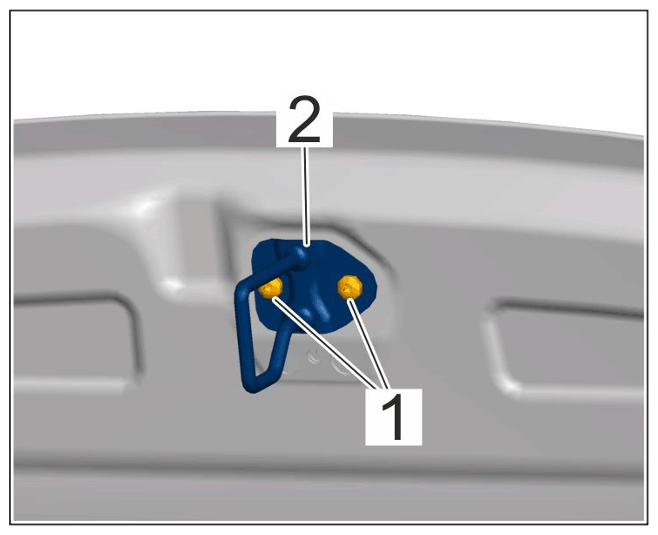

Nut on front lid hinge Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223760Courtesy of PORSCHE CARS NORTH AMERICA, INC.

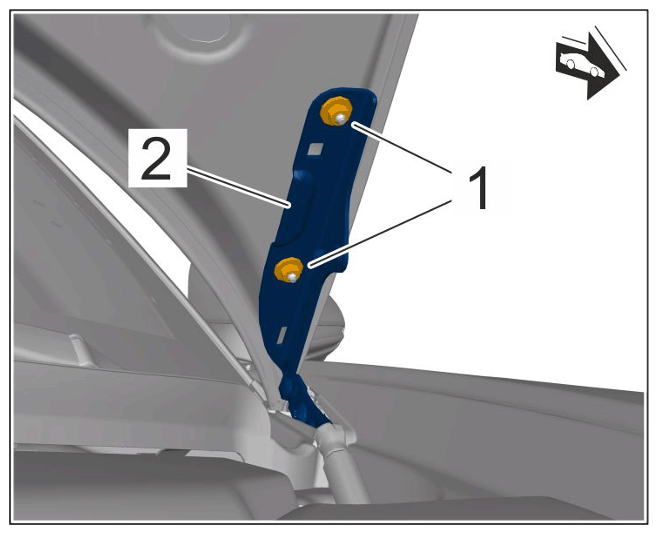

Screws on front lid hinge Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223761Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on lid hinge

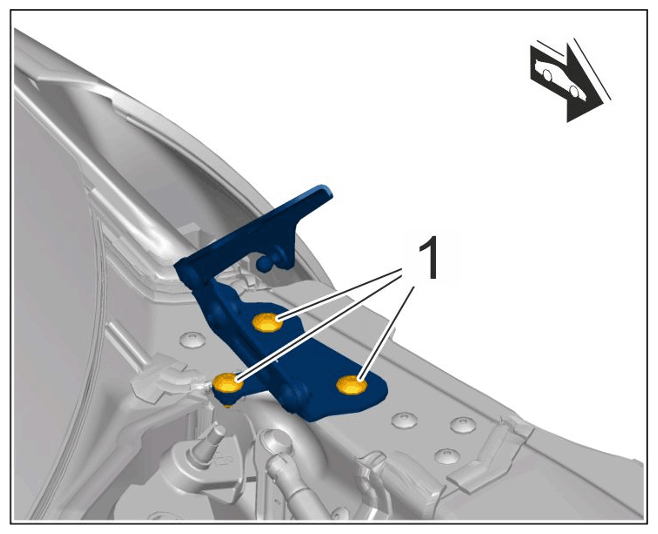

Lid release motor Item 1 Tightening torque 2.5 (1.75 ft.lb) Nm + 0.5 (0.3 ft.lb) Nm
G14223762Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid release motor

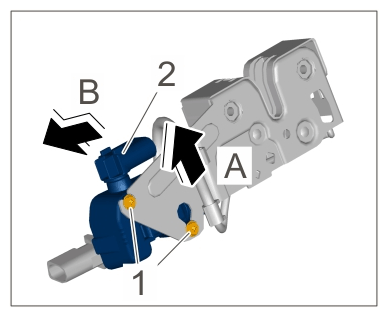

Lower part of rear lid lock Item 1 Tightening torque 9.7 (7.2 ft.lb) Nm
G14223763Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

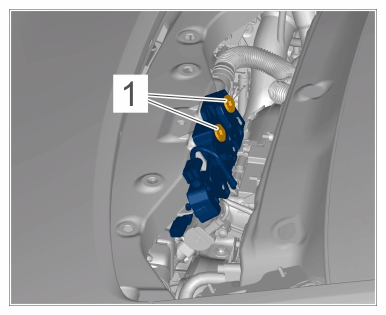

Screws on lower part of rear lid lock Item 1 Tightening torque 2 (1.5 ft.lb) Nm
G14223764Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear lid lock

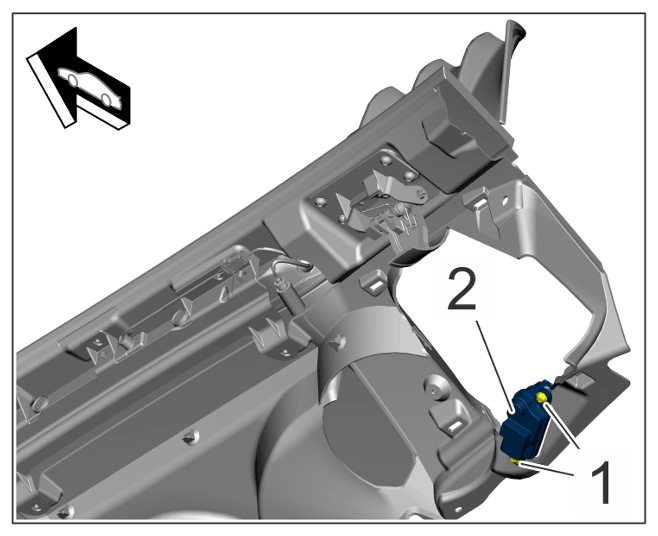

Upper part of rear lid lock Item 1 Tightening torque 9.7 (7.5 ft.lb) Nm
G14223765Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock, rear

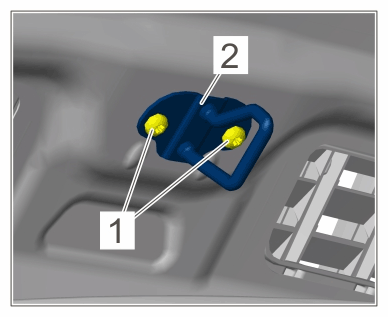

Screws on rear lid (flap) Item 1 Tightening torque 2 (1.5 ft.lb) Nm
G14223766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

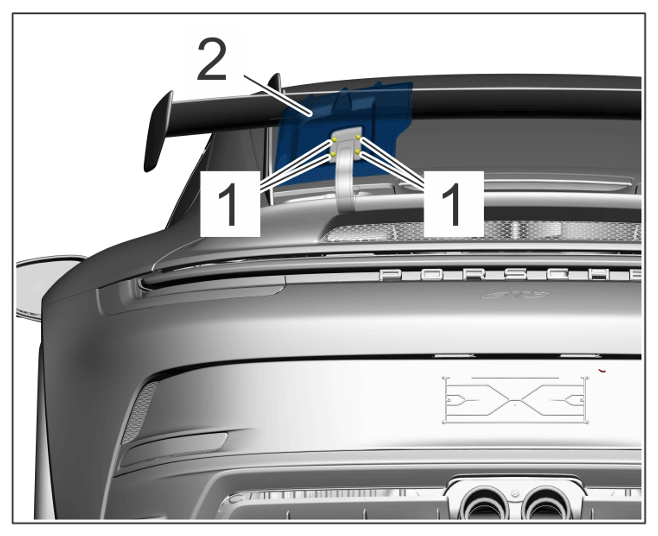

Rear lid hinge Item 1 Tightening torque 9 (6.5 ft.lb) Nm
G14223767Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear lid hinge

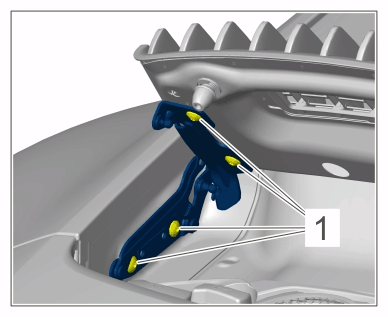

Screws on rear lid hinge Item 1 Tightening torque 4 (3 ft.lb) Nm
G14223768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

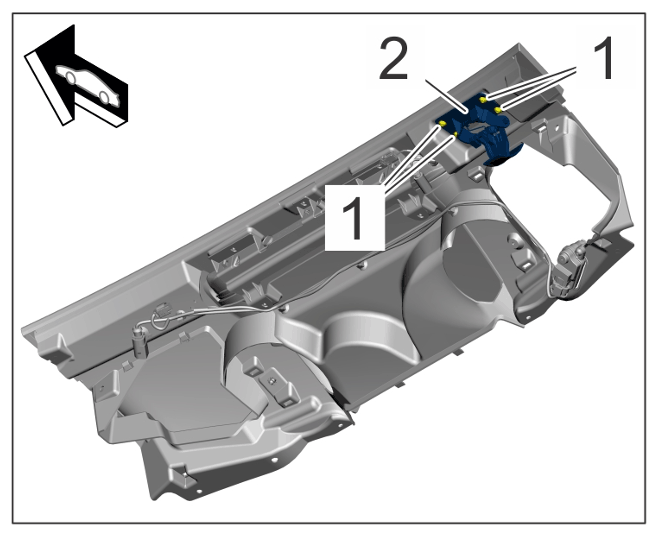

Door handle to supporting bow Item 1 Tightening torque 2 (1.5 ft.lb) Nm
G14223769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

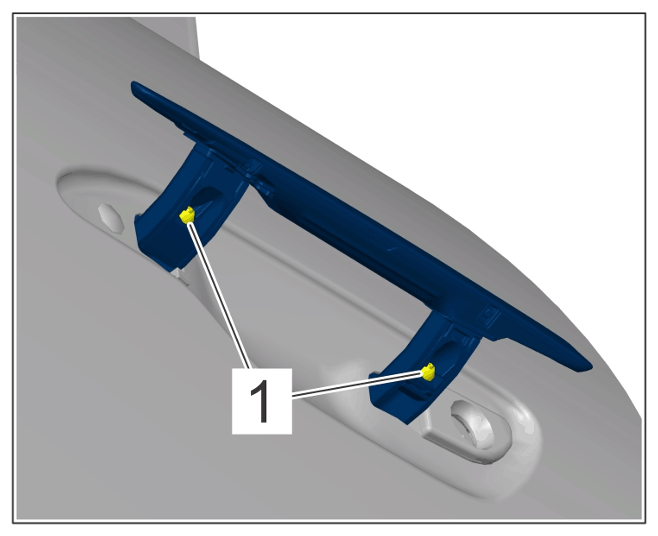

Screw for cover Item 1 Tightening torque 4 (3 ft.lb) Nm + 1 (0.75 ft.lb) Nm
G14223770Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

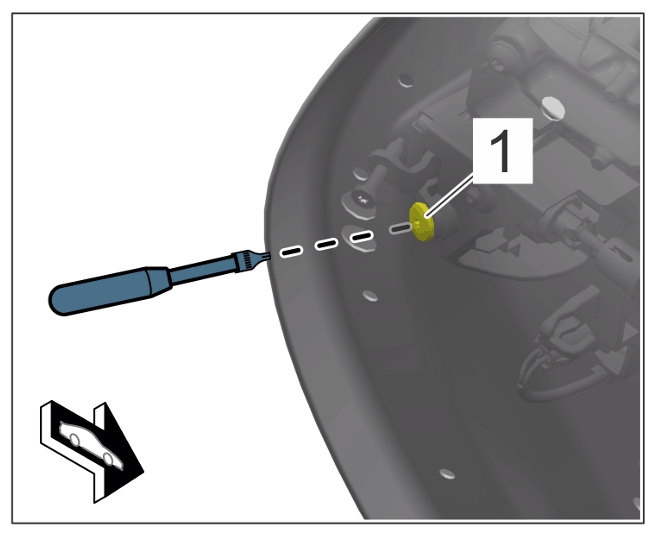

Screw, outer Item 1 Tightening torque 3 (2 ft.lb) Nm
G14223771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

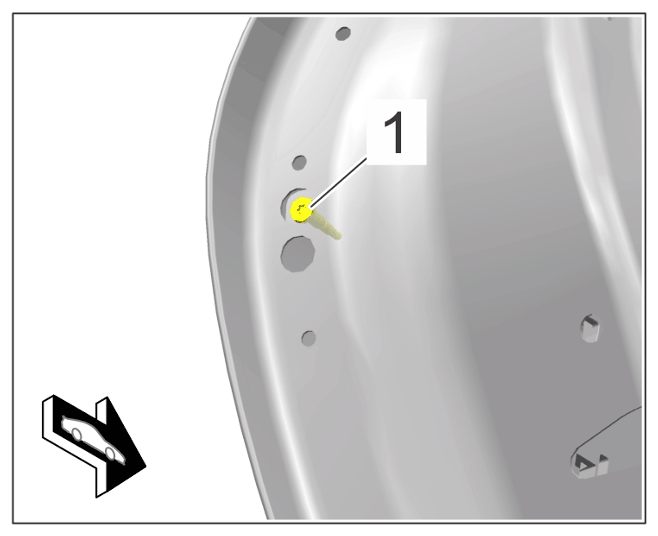

Screw, inner Item 1 Tightening torque 4 (3 ft.lb) Nm
G14223772Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

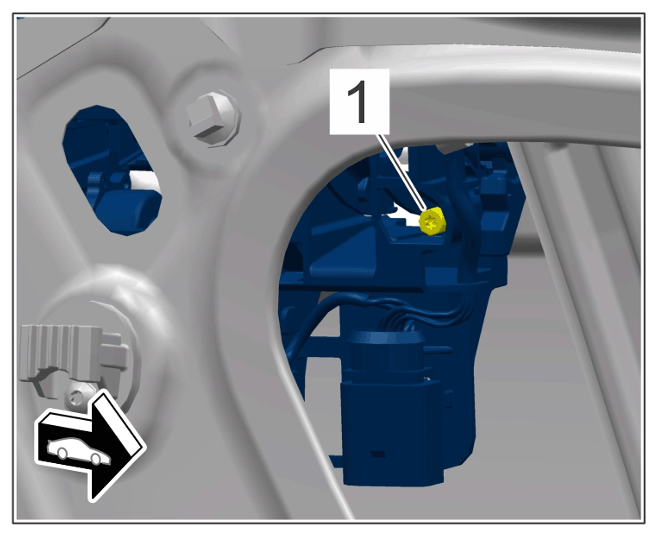

Nut on door lock cover Item 1 Tightening torque 2.5 (1.75 ft.lb) Nm
G14223773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut

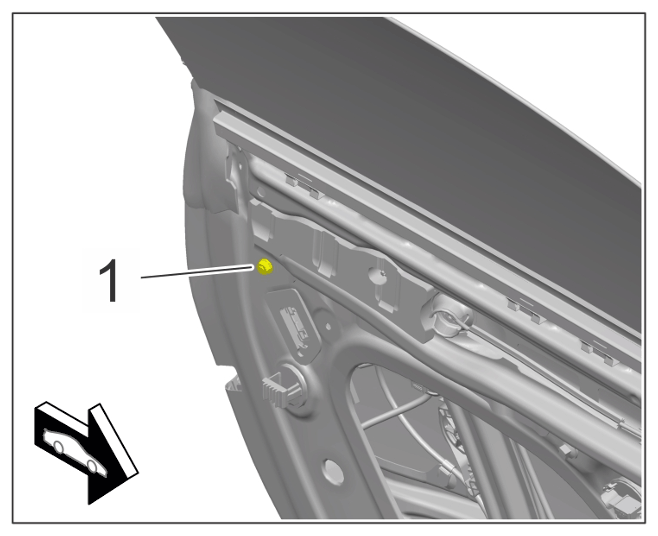

Screws securing door lock to door Item 1 Tightening torque 20 (15 ft.lb) Nm
G14223774Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

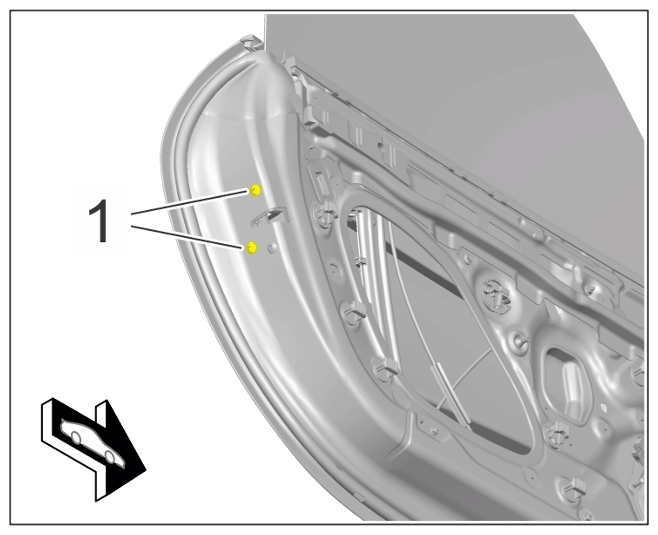

Lock peg Item 1 Tightening torque 25 (19 ft.lb) Nm
G14223775Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)

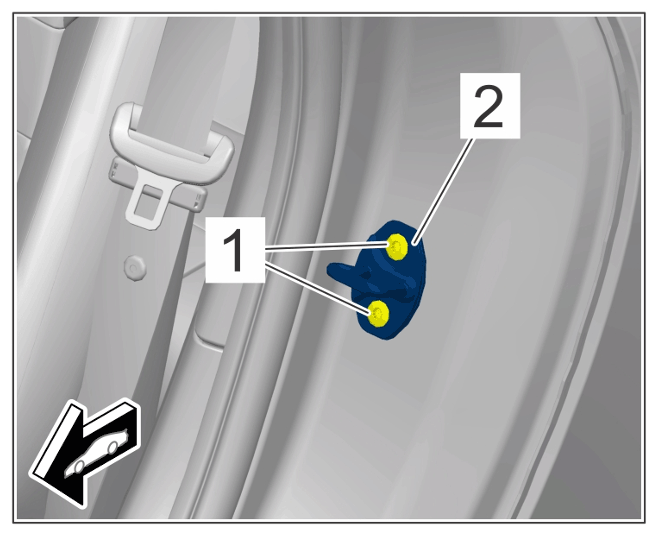

Screws Item 1 Tightening torque 2.3 (1.7 ft.lb) Nm +/- 0.2 (0.1 ft.lb) Nm
G14223776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

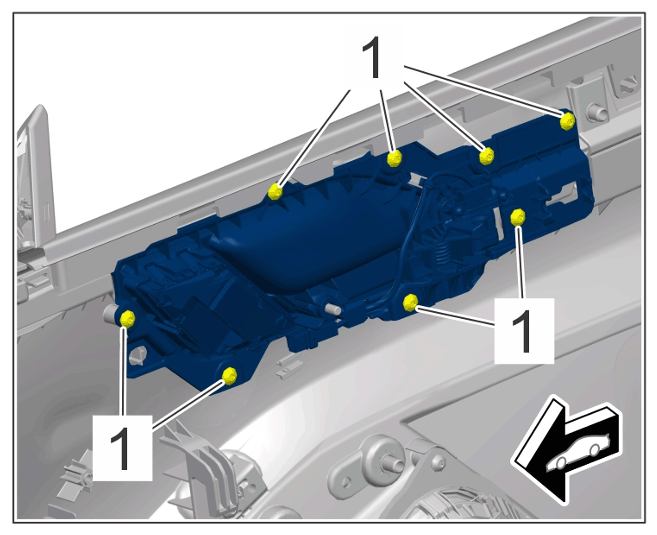

Screw securing door hinge to door Item 1 Tightening torque 50 (37 ft.lb) Nm
G14223777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

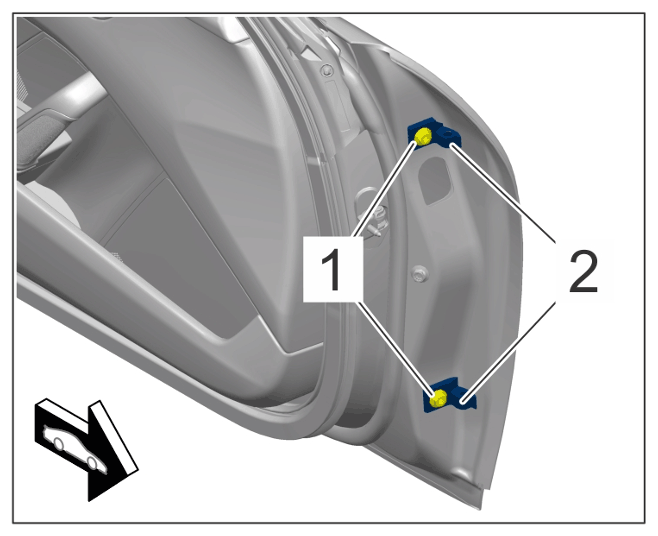

Screw securing door hinge to body Item 1 Initial tightening 20 (15 ft.lb) Nm
G14223778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

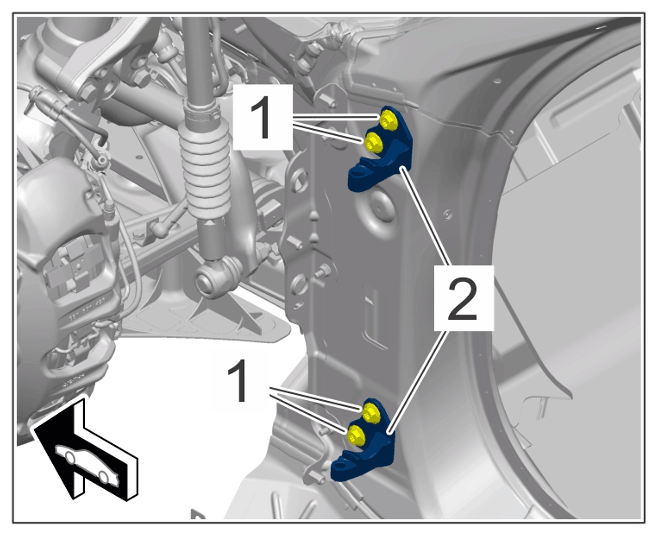

Screw securing door hinge to body Item 1 Final tightening 45 Grad
G14223779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for door hinge Item 1 Tightening torque 13 (9.5 ft.lb) Nm
G14223780Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door hinge

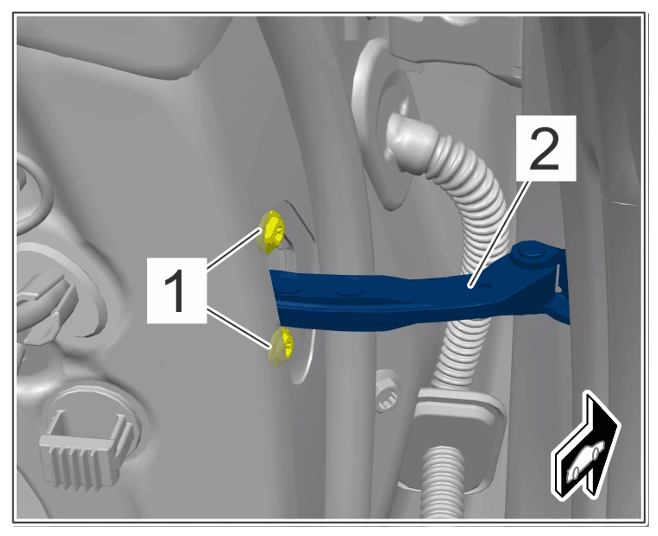

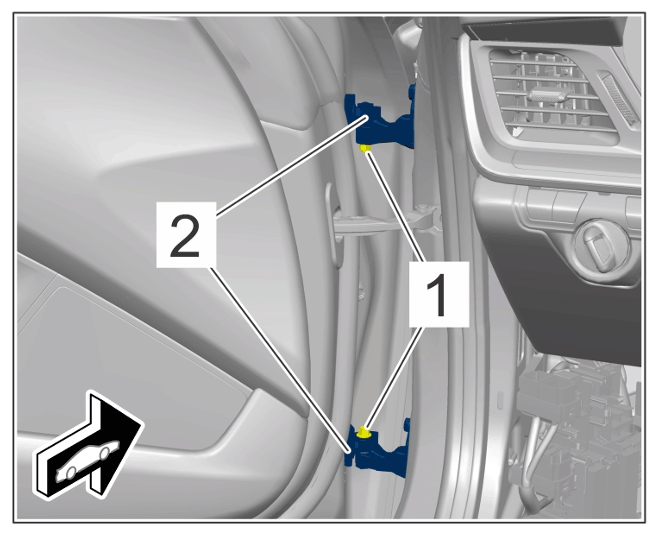

Screw securing door arrester to body Item 1 Tightening torque 33 (24 ft.lb) Nm
G14223781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing door arrester to body

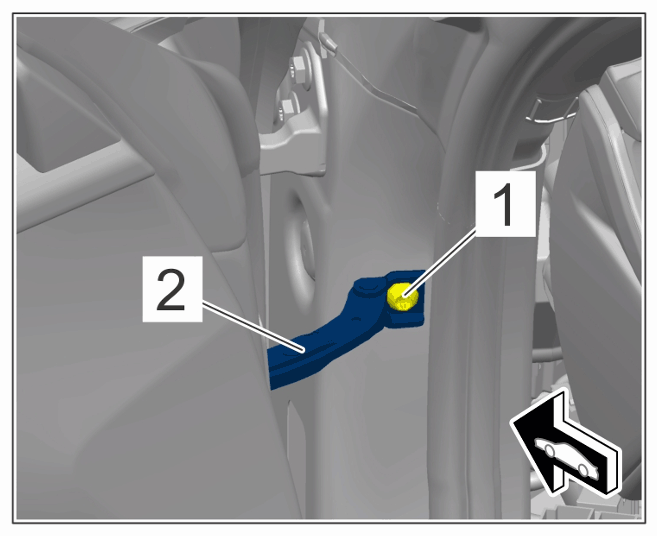

Screw securing door arrester to door Item 1 Tightening torque 8 (6 ft.lb) Nm
G14223782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing door arrester to door
Screw Item 1 Tightening torque 3 (2 ft.lb) Nm
G14223783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
scientia non olet · About LEMON Manuals
