5X - Body General - 911 CARRERA (992)
>>
WM, 5X00IN40 Technical Values
>>
57 - Front Door, Central Locking System
>>
Lock Peg
Lock Peg
Location
Description
Type
Basic value
Tolerance
Lock peg
Item 1
Tightening torque
25 (19 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

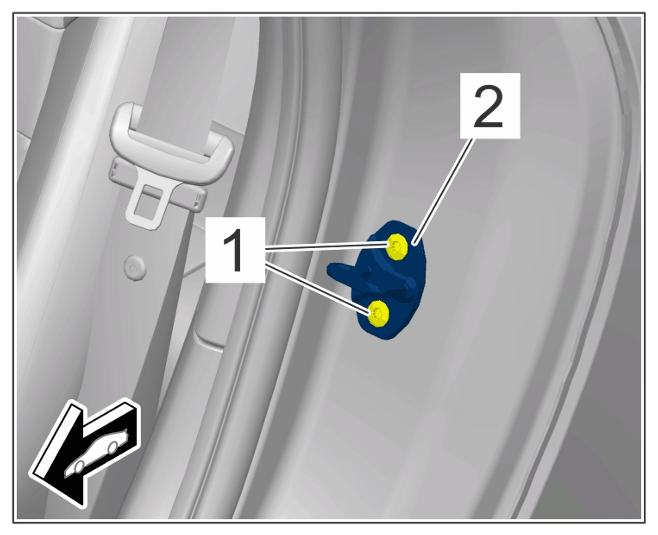

Lock peg (striker pin)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
