WM, 5X00IN40 Technical Values
>>
57 - Front Door, Central Locking System
>>
Door Lock
Door Lock
Location
Description
Type
Basic value
Tolerance

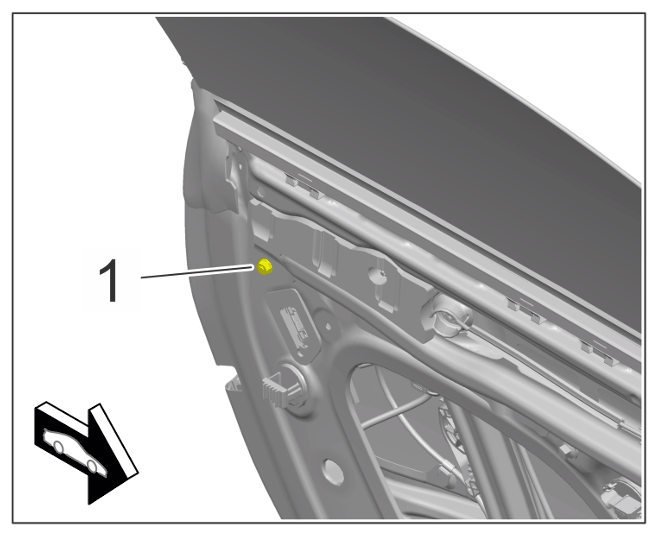

Nut on door lock cover
Item 1
Tightening torque
2.5 (1.75 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nut

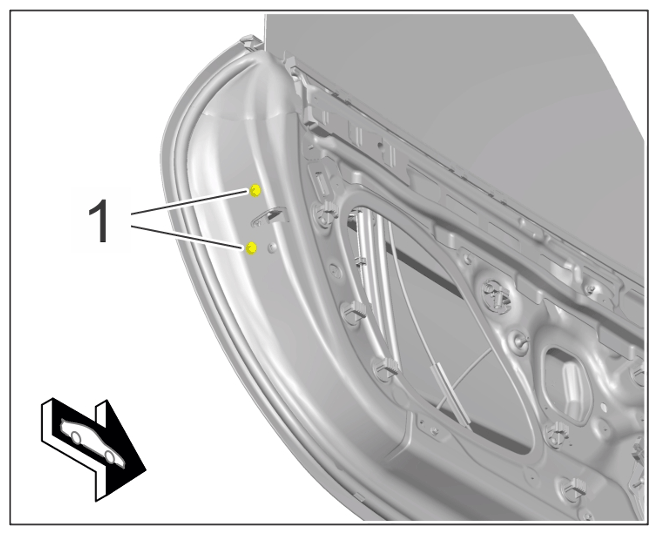

Screws securing door lock to door
Item 1
Tightening torque
20 (15 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
