Door Hinge

Location	Description	Type	Basic value

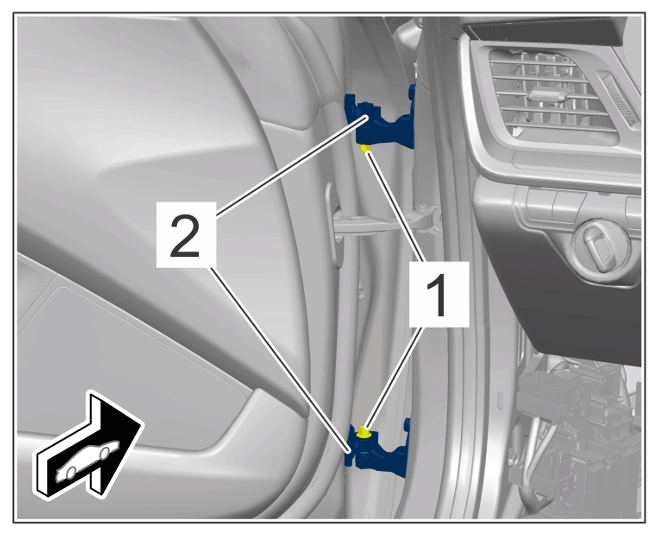

Screw securing door hinge to door	Item 1	Tightening torque	50 (37 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

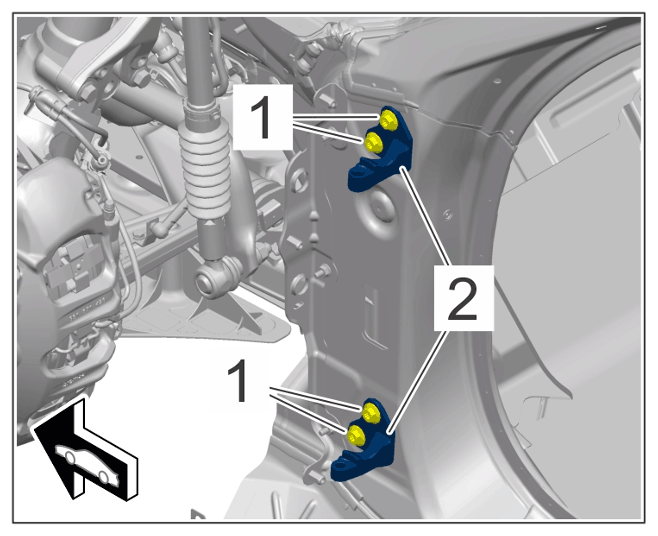

Screw securing door hinge to body	Item 1	Initial tightening	20 (15 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw securing door hinge to body	Item 1	Final tightening	45 Grad
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

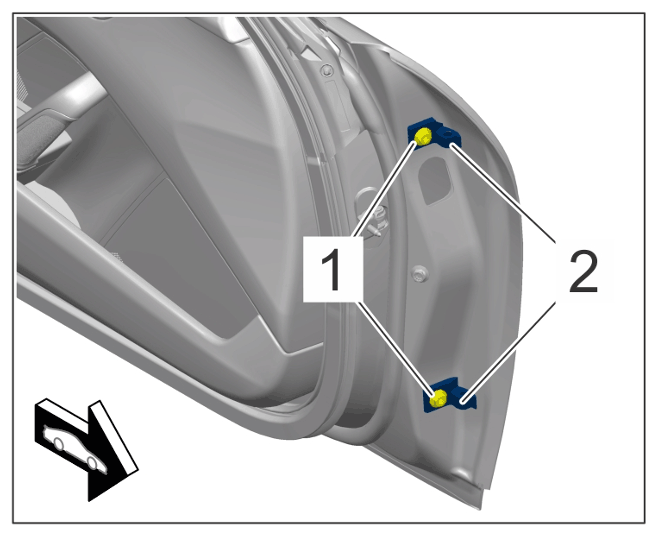

Screw for door hinge	Item 1	Tightening torque	13 (9.5 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for door hinge
