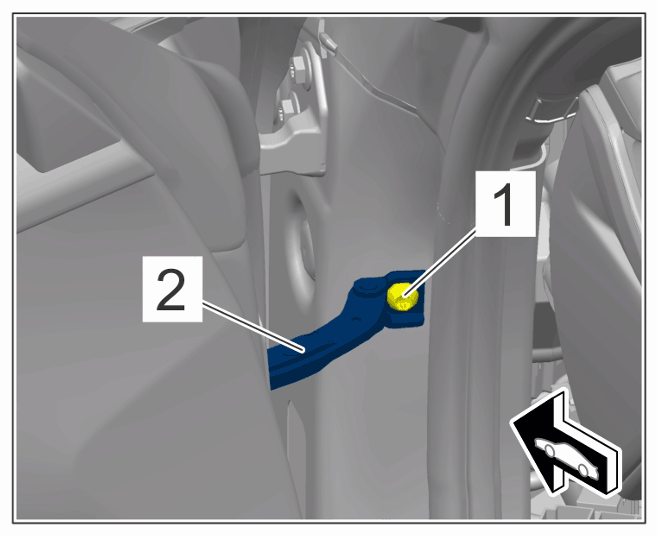

| Screw securing door arrester to body |
Item 1 |
Tightening torque |
33 (24 ft.lb) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw securing door arrester to body |
|
|
|
|

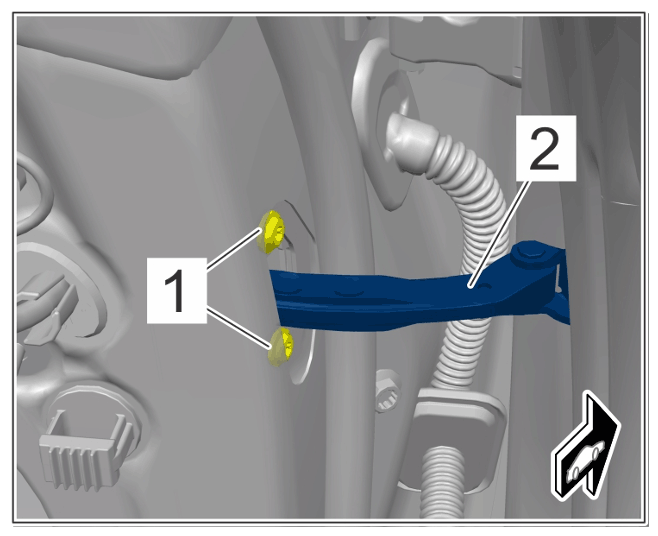

| Screw securing door arrester to door |
Item 1 |
Tightening torque |
8 (6 ft.lb) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw securing door arrester to door |
|
|
|
|
