5X - Body General - 911 CARRERA (992)
>>
WM, 5X00IN40 Technical Values
>>
55 - Lids, Flaps
>>
Rear Lid
Rear Lid
Location
Description
Type
Basic Value
Tolerance

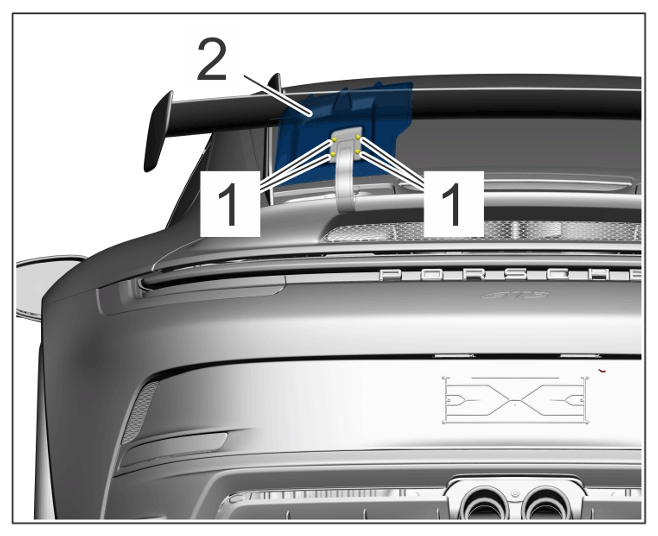

Screws On Rear Lid (Flap)
Item 1
Tightening Torque
2 (1.5 Ft.Lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
