5X - Body General - 911 CARRERA (992)
>>
WM, 5X00IN40 Technical Values
>>
55 - Lids, Flaps
>>
Lid Hinge To Body
Lid Hinge To Body
Location
Description
Type
Basic value
Tolerance
Screws on front lid hinge
Item 1
Tightening torque
8 (6 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

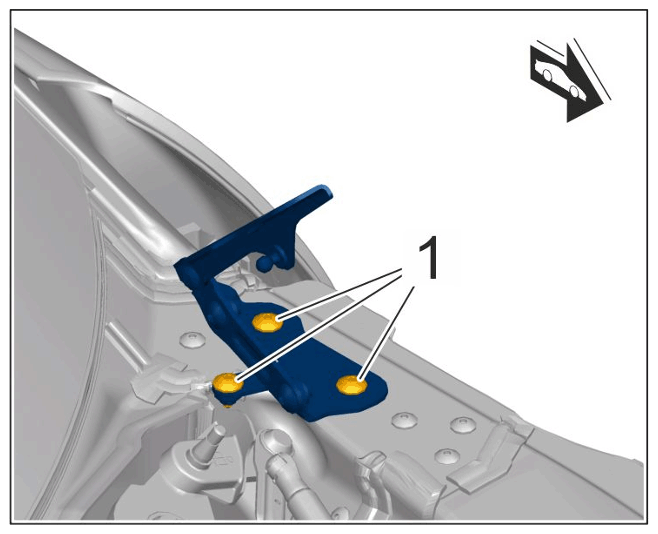

Screws on lid hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
