Roof (Panels)

Location	Description	Type	Basic value

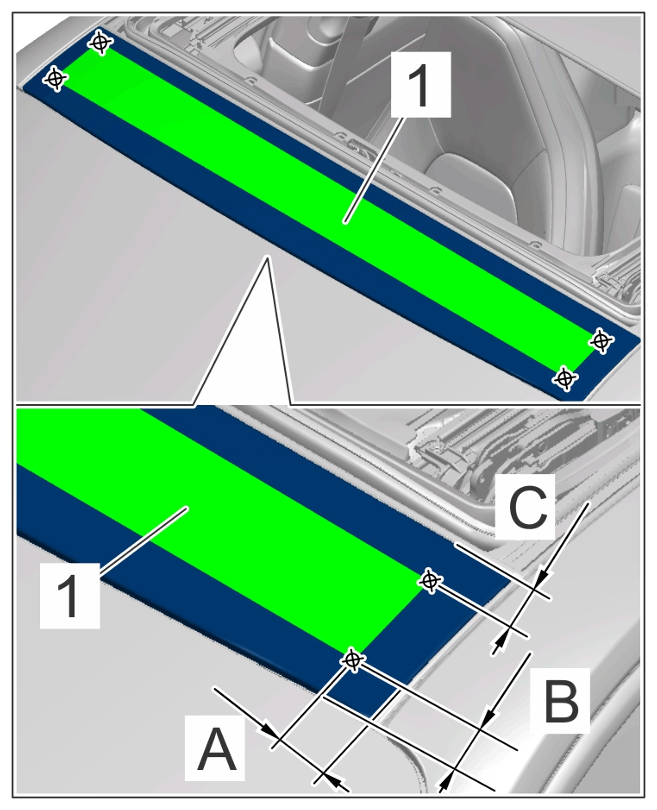

Roof pillar to bore on roof (front panel)	Item A	Length	45 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (front panel)
Windscreen to bore on roof (front panel)	Item B	Length	40 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (front panel)
Sliding roof opening to bore on roof (front panel)	Item C	Length	40 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (front panel)

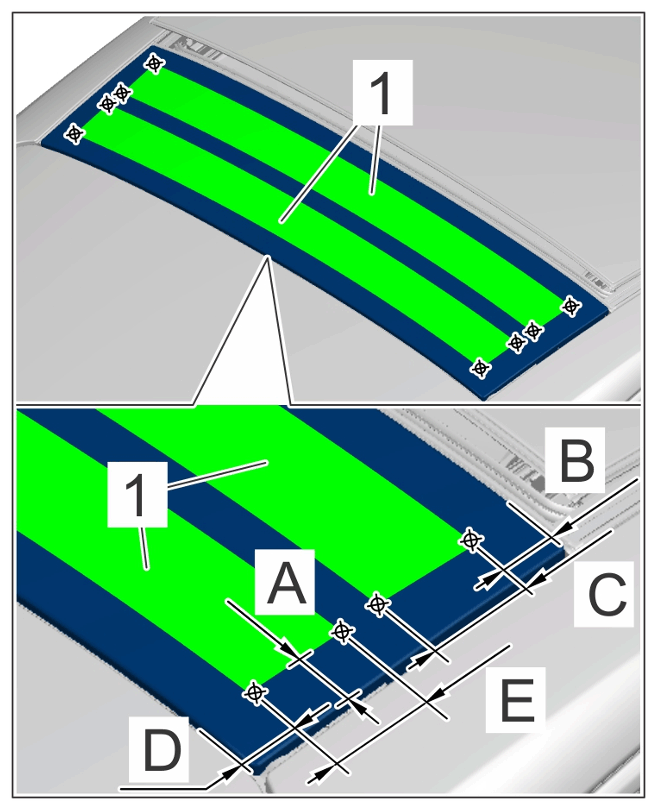

Roof pillar to bore on roof (rear panel)	Item A	Length	45 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (rear panel)
Bore to bore	Item B	Length	40 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (rear panel)
Sliding roof opening to bore on roof (rear panel)	Item C	Length	80 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (rear panel)
Rear window to bore on roof (rear panel)	Item D	Length	35 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (rear panel)
Bore to bore	Item E	Length	45 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof (rear panel)
